The JasperPrintCustomResponse (Responder) is used in the response path of a profile to map its contents to one of the Print documents defined in Lobster Data Platform / Orchestration and send the result to a printer installed for the Lobster Data Platform server.

The print document identified by ID (see 'Parameters') must use the Print document type JASPER_REPORT (see Jaspersoft Studio integration).
The login context for Lobster Data Platform / Orchestration defined by Integration login (see 'Parameters') must guarantee read access to the specified print document.
The reply path must contain an XML structure that matches the print document (e.g. a 'print XML').

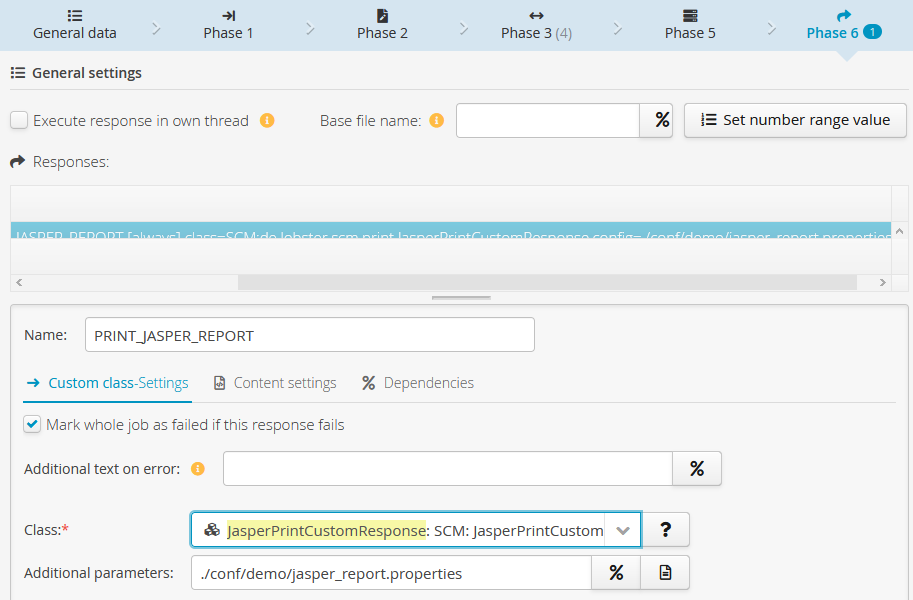

When creating the response path, the Custom class category must be selected so that the JasperPrintCustomResponse (Responder) is selectable under Class:

images/download/attachments/201674373/image2020-11-5_18-3-7-version-1-modificationdate-1747060014707-api-v2.png

Under Additional parameters, a properties file (with the file extension properties) must be specified.

Parameter

Property	Description	Example	Required?	Default
Print Document ID	internal ID of the print document in Lobster Data Platform / Orchestration (see Print documents)	101		n/a
scm Login	Integration login (XML structure of a `LobsterDataLoginRequest` object)	see next line		n/a
scm Login	`<base:LobsterDataLoginRequest` `xmlns:base="SCM.BASE"` `userName="admin"` `selectedRole="1"` `selectedCompany="1"` `/>` The company selected in the login data must have read access to the print document type specified by parameter 1. The role selected in the login is only relevant with regard to the 'owner restrictions'. Other role rights ('Print', 'Print documents') are not relevant. ►NOTE◄ The interactive availability of print documents (based on Association criteria) is not crucial for direct access via JasperPrintCustomResponse (Responder). 'Super user' role selection ensures access to all Print documents without having to adjust Company authorizations or owner assignments.
Printer Name	Name of the printer installed on the Lobster Data Platform / Orchestration server	myLaser		n/a
Media Tray	Selection of the feed tray	top middle bottom envelope manual large-capacity main side		main
Sides	Page settings	`one-sided`two-sided-long-edge `two-sided-short-edge`
Sheet Collate	Pages sorted/separated	uncollated collated		uncollated
Print Quality	Print quality	draft normal high		normal
Finishings	Post-processing	none staple cover bind saddle-stitch edge-stitch staple-top-left staple-bottom-left staple-top-right staple-bottom-right edge-stitch-left edge-stitch-top edge-stitch-right edge-stitch-bottom staple-dual-left staple-dual-top staple-dual-right staple-dual-bottom		none
Orientation Requested	Paper size (orientation)	portrait landscape reverse-landscape reverse-portrait
Adjust Page Size	Fit to page size?	true false		false
