Not rule

Rule types – Abstract

The negation of a rule (also Junction) by a Not rule can be initiated via the not function in the context menu for the rule.

images/download/attachments/201665741/image-2025-3-28_13-57-39-version-1-modificationdate-1743166659141-api-v2.png

Each rule configuration can be logically ‘negated’ – regardless of whether it is a single ‘rule’ or a complex combination of several Rule types in a Junction.

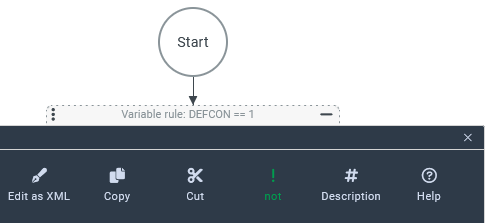

This negation of a rule is achieved by executing the not function in the context menu (highlighted in green in the screenshot above) for the rule or Junction to be negated.

If there is not already a ‘negation’ for the selected position in the rule configuration, selecting the not function causes a Not rule to be ‘inserted’ at this position, which contains the previous rule or Junction.

►IMPORTANT◄ To remove an existing negation, the not function must also be selected.

The Not rule does not appear on the surface as an independent ‘rule’. However, the ‘negation’ is indeed visualised:

If a rule is negated, an exclamation mark appears as a prefix in the header of the rule element (see table).
The graphic exclamation mark symbol at the bottom of the ‘negated’ element is much more distinctive (see table).

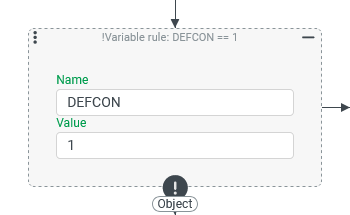

Negated Variable rule (collapsed)	Negated Variable rule (collapsed)
		In the example, a Variable rule is negated within a rule configuration, which checks whether a Variable with the name `DEFCON` exists and returns the value ‘1’ as a string image. Due to the negation, this rule is considered ‘passed’ in all cases that do not fulfil the condition ‘DEFCON==1’. ►NOTE◄ The negation of the rule is not the same as checking whether the `DEFCON` Variable contains a value other than `1`. After all, the rule is passed even if the variable does not exist at all.
Negation of an OR Junction within an AND Junction (left: collapsed, right: expanded)

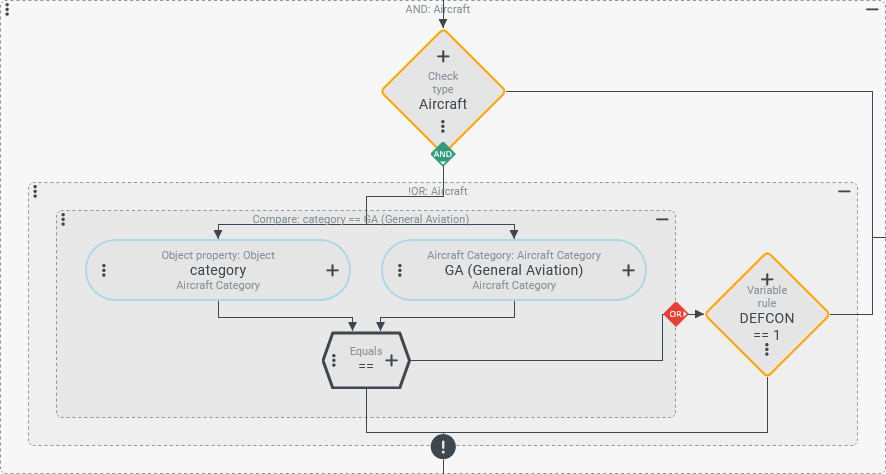

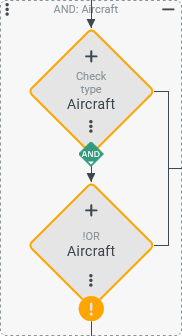

This example shows the appearance of a ‘negation’ within a somewhat more complex logical aggregate. With a negated OR Junction within an AND Junction.
The negation here only affects the OR Junction and not the superordinate AND Junction. In order for the rule to be passed overall, a reference object of the `Aircraft` type (see Check type above) must be present in any case. AND in addition, its `category` must NEITHER be ‘GA (General Aviation)’ NOR must the `DEFCON` Variable contain a value whose string image is ‘`1`’.

Even if the Not rule does not superficially appear as an independent element, a node (core:NotRule) appears in the XML image (here for the first simple example):

images/download/attachments/201665741/image-2025-3-28_13-59-8-version-1-modificationdate-1743166748701-api-v2.png

The Edit as XML function in the context menu of a negated rule or Junction shows how the inner rule is embedded in the Not rule.

images/download/attachments/201665741/image-2025-3-28_14-4-39-version-1-modificationdate-1743167080012-api-v2.png

XML-Abbild

<?xml version="1.0" encoding="UTF-8"?>
<core:NotRule xmlns:core="CORESYSTEM">
   <core:StorageStringRule>
      <storageKey>DEFCON</storageKey>
      <storageValue>1</storageValue>
   </core:StorageStringRule>
</core:NotRule>
