Working state
The predefined Working state (WorkingState) enumeration defines selection options for the ‘working state’ of entity types that are considered working state owners (see also Working state owner).
The list can be customised.
A separate configuration type 'Working state configuration' (WorkingStateConfiguration) with the 'Icon URI' (iconUri) and 'Color' (colorValue) fields is available for the configuration of enumeration values.
|

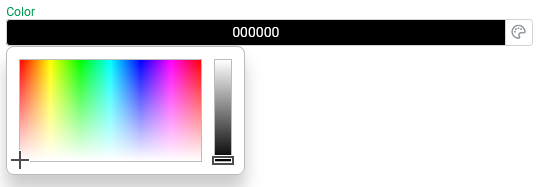

The configuration interface provides a Color picker element with the following alternative input options for assigning the Color (colorValue):

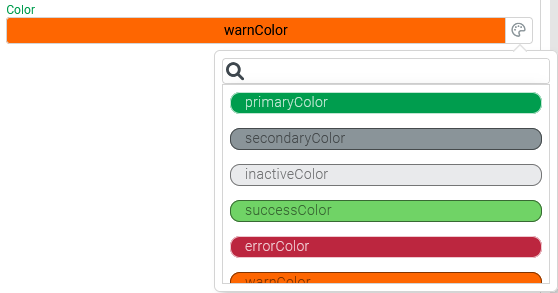

►NOTE◄ When a style color is selected, its name is written in the colorValue text field and not the hex value for the color assigned at that time. Style changes may then also change the Working state color(s). |
|
|
|
Use of 'working state' values
In the 'Current working state' (currentWorkingState) field, an entity refers to an entity of the 'Working state entry' type (for the relevant entity type), which refers to an enumeration value from the Working state enumeration via the 'Working state' (workingState) field.
The enumeration values for Working state also form the basis for the definition of Working state matrix, which can be used to define a ‘default working state’ (defaultWorkingState) for newly created entities.
Numerous other functionalities are based on values from the Working state enumeration:
The following default values and localisations are predefined by default:
|
Ordinal |
Name |
Description |
Icon URI |
Color |
German |
English |
French |
0 |
NEW |
empty |
empty |
#000000 |
Neu |
New |
Nouveau |
1 |
RELEASED |
empty |
empty |
#4deb4d |
Freigegeben |
Released |
Autorisé |
2 |
CANCELED |
empty |
empty |
#d12828 |
Storniert |
Canceled |
Annulé |
|
3 |
ACCEPTED |
empty |
empty |
#fffc96 |
Akzeptiert |
Accepted |
Accepté |
|
4 |
FINISHED |
empty |
empty |
#4da9eb |
Abgeschlossen |
Finished |
Achevé |
