Login history

Logins to the Lobster Data Platform generate entities of the ‘Login history’ (LoginLog) type, which conserve key data on current and historical sessions.

In overviews for Users and Guest users, the sub-category ‘Logins’ appears in the main menu category 'Details' with the ‘Show’ ribbon button.

The ‘Show’ ribbon button opens a modal full-screen view of the Login history of the account selected in the call context.

  • View name: de.lobster.scm.base.authentication::LoginLog|listSearchWindow

  • Menu node name: n/a

In an overview for Users, the ribbon button is only available if the Role of session has the 'Show login history' permission ( a dministration/accounts/user/showLoginLog).

In contrast, the ribbon button is always available in an overview for Guest users .


IMPORTANT◄ Although an ‘owner’ ( ownerId ) is formally identified for each entity of the ‘login history’ ( LoginLog ) type , there are effectively no owner restrictions for this entity type. Access to LoginLog entities (e.g. via Search API ) is therefore basically unrestricted.

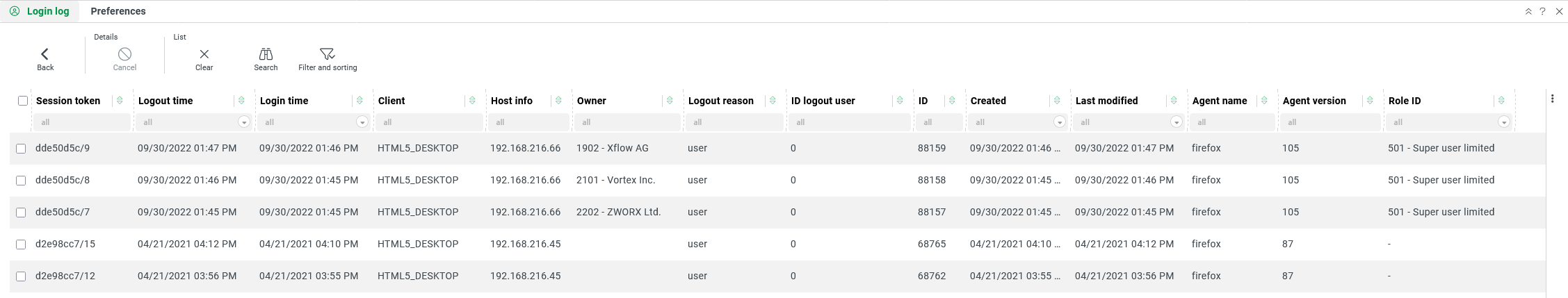

The Login history overview is only used to display existing entities for the account selected in the higher-level overview (Users or Guest users).

In addition to the applicable generic ribbon buttons for an overview, the ribbon menu offers the Back ribbon button, which closes the modal overview.

images/download/attachments/201680395/image-2025-5-27_12-1-7-version-1-modificationdate-1748340067156-api-v2.png

Data model of the ‘Login history’ entity

Localisation

Data field

Type

Contents

Example

ID

id
Long

Primary key of the LoginLog entity

54321

Created

created
Timestamp

Timestamp ≥ Login time

2025-05-27T09:57:08.639+02:00

Creator

creatorId
Long

(empty by definition)

Last modified

lastModified
Timestamp

Timestamp ≥ Login/Logout time

2025-05-27T12:34:56.790+02:00

Last modifier

lastModifierId
Long

(empty by definition)

Owner

ownerId
Long

Reference to the Company of session

251

(userId)*

userId
Long

Reference to the User of session
for Users >0 for Guest users <0

4711 / -4711

Session Token

sessionToken
String

Unique text key for the relevant session

cfb65278/64

Login time

loginTime
Timestamp

Timestamp for the start of the session

2025-05-27T09:57:08.637+02:00

Logout time

logoutTime
Timestamp

Timestamp for the end of the session

2025-05-27T12:34:56.789+02:00

Client

clientType
String

Text key for the client type (see example)

HTML5_DESKTOP

Host info

hostInfo
String

see Session information

123.45.67.8

Logout reason

logoutReason
String

see table below

user, login_from_other, ...

ID logout user

logoutUserId
String

User reference


Agent name

userAgentName
String

see Session information

chrome, edge, safari, ...

Agent version

userAgentVersion
String

see Session information

32, 16, 8, ...

Role ID

roleId

Long

Reference to the Role of session

501

Values for the ‘Logout reason’

Logout reason

Description

login_from_other

The session was terminated during a new login because the maximum number of simultaneous sessions defined for the account had been reached.

user

The user/guest user has regularly logged out of their session themselves.

timeout

The user has been inactive in the system for too long and has therefore been logged out.

killed

Another user (see ID logout user column) has ended the session interactively (see Aktive Benutzer).

(empty)

As long as no Logout reason is specified, the session is still active. In this case, the Logout time field is also empty.
