Simple times

The absolute times start a job only once. They are therefore suitable for one-off actions, such as taking over the inventory of a warehouse.

The relative times start the job on the specified days of the week and are therefore suitable for recurring tasks.

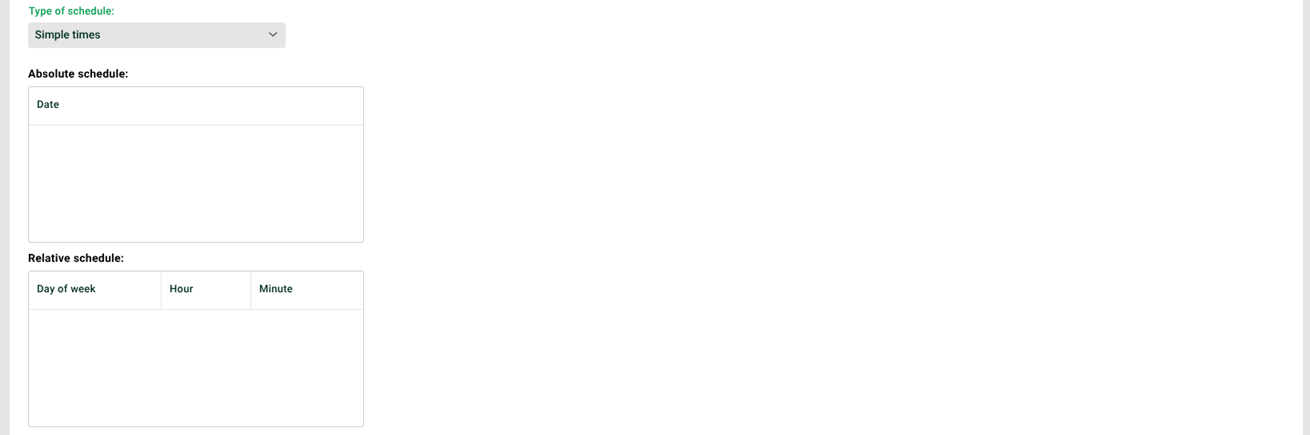

Settings


images/download/attachments/201676180/simple_times-version-1-modificationdate-1747306794445-api-v2.png


(1) Absolute schedule: Use the context menu to create absolute entries for "08.01.2018", "08:00, 08.01.2018", "08:30" and "08.01.2018, 11:30".

(2) Relative schedule: Use the context menu to create relative entries for "Monday, 08:45" and "Monday, 10:45".

Example

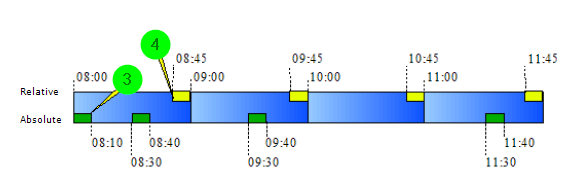

The following figure shows an excerpt of the chronological progression for Monday, 08.01.2018.


images/download/attachments/201676180/Zeitangaben_1_EN-version-1-modificationdate-1747306794450-api-v2.png


(3) A job is started by the absolute scheduling.

(4) A job is started by the relative scheduling.

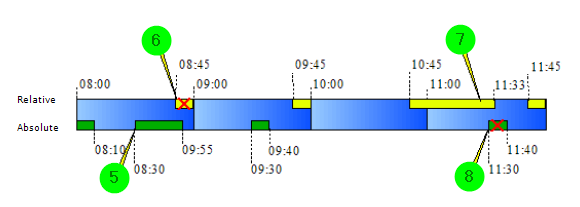

If a job is already running at a start time, the additional start will be skipped. This applies to relative and absolute scheduling. The following figure shows such a case.

images/download/attachments/201676180/Zeitangaben_2_EN-version-1-modificationdate-1747306794449-api-v2.png


(5) A job is started by the absolute scheduling.

(6) Since there is still a job running, no new job is started.

(7) A job is started by the relative scheduling.

(8) Since there is still a job running, no new job is started.
