You can import various external formats and have a source structure automatically generated for them. See also section Working with templates in general.

Settings

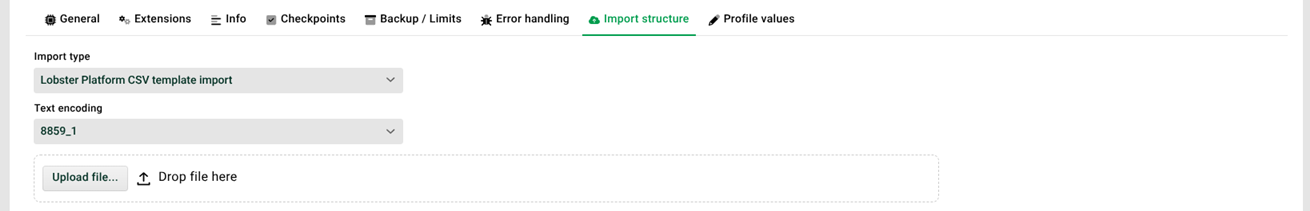

images/download/attachments/201673535/import_structure-version-1-modificationdate-1747025554903-api-v2.png

(1) Import type: The external format.

Analyze file
Atos BOM (*.fde file)
Excel
GEFEG.FX mapping specification
IDoc parser file
M@gic EDDY
OData scheme (see also section Analyze OData scheme)
RESTful API Modeling Language (RAML)
Seeburger (WinElke DTA, BIS XML Input, BIS XML Output)
TradaComs Message (see section Tradacoms for details). The encoding is normally "8859_1".
XSD/DTD
YAML
Lobster Platform CSV template import
SAP PI import. Note: The source and target structures must already exist in the profile.

(2) Upload file: Either use the button or drag the template file directly into the field.

Target structures

If only the source structure can be generated with a method, the corresponding target structure can also be generated with a subsequent 1:1 mapping.
