The page offers an overview of the log messages on basis of the existing profiles. After selecting a profile with the full-text search or the profile tree, all finished jobs of the selected profile will be shown.

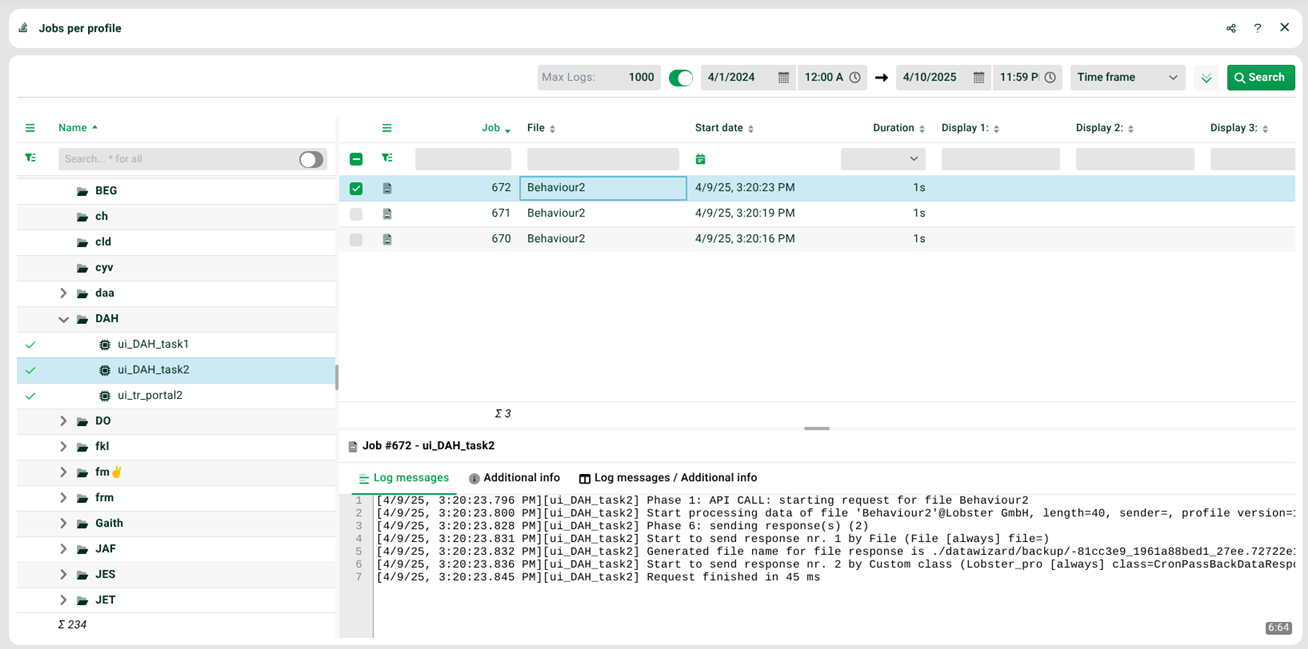

Search mask

images/download/attachments/201676749/jobs_per_profile-version-1-modificationdate-1747385369354-api-v2.png

(1) Search field top left: Here a profile can be searched for with a keyword. After a successful search, the located profiles will be shown as a list instead of the group/profile tree. The wildcard * can also be used, e.g. Company*AS2*send.

(2) Tree structure left: Here a profile can be searched for within the group/profile tree.

(3) Search period bar at the top: To show a current list of the search period, please click the magnifying glass symbol.

(4) Down arrow: With this button, the extended search can be opened.

(5) Window on top: The list of the located jobs of a profile.

(6) Log messages: The log messages of a marked job. If available, a trace file (see section System logging) can be opened via a right-click on the log messages and viewed in the "Server Logging" (→ "Administration"). The "Additional info" shows log text that has been created with function log info().

(7) Display 1, Display 2, Display 3: Custom columns. The values for these columns can be set with function set display column().

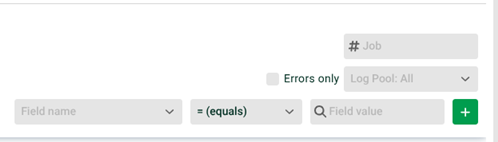

Advanced search

images/download/attachments/201676749/jobs_per_profile_advanced-version-1-modificationdate-1747385369352-api-v2.png

(8) Job number: Restriction to a specific job number (must be complete).

(9) Errors only: If this checkbox is set, only jobs that match the search criteria and terminated with an error are displayed.

(10) Log Pool: The logging of a profile job can be done in separate Log Pools. The default Log Pool is called Standard.

(11) Field name: If a target structure field attribute "Log field value" has the value Yes and there is a value for attribute "Name for logging" as well, the value of the target structure field itself will be written in the job log with the specified name. You can select a name in the left field and a value in the right field (1). (12) has to be used to add the condition! Additional search options:

Profile	Restriction to specific profile name.
Additional information	See function log info().
Input filename	Restriction to specific input file name.
Output filename	Restriction to specific output file name.
Display 1-3	Refers to columns "Display 1", "Display 2" and "Display 3". See function set display column() for details (column names can be customised).

(12) Plus button: Adds condition (11).

Context menu of a job

Edit meta data	Opens an additional metadata editor in which you can view and edit existing variables from the metadata.
Edit profile	Opens the profile (that has executed this job) for editing.
Find follow up jobs	If the selected job was part of a profile chain, you can display all the jobs of the profile chain. The file names of jobs of the selected profile on the left will be displayed normally. The file names of jobs of other profiles will be displayed with the name of the other profile as prefix before the file name.
Restart	Opens the restart dialogue for this job.
Search profile chain in Dataflow	If the selected job was part of a profile chain, you can display the profile chain in module "Data Flow".
Show backup path	Shows the path of the backup file of this job.
Show Comm-Log entries	If there is a Comm Log entry for this job, you can jump directly to the entry.
Show input message as structure	If a profile has a source structure, you can display an analysis of the input data relative to this source structure. The analysis result is an XML file that has a hierarchical structure like the source tree, that is, the input data that has been parsed into the source structure.
To clipboard	In a further dialogue, the job number, profile name and file name can be copied.
To error	Opens an erroneous job directly on subpage Errors.
View/Download file	Opens the input file in the editor or downloads it to the local computer.
View/Download output file	Opens the output file in the editor or downloads it to the local computer. These files must have been created in a Response of type "File", with set checkbox "Is backup of target data".

Context menu of a profile

Refresh profiles	Reloads existing profiles.
Restart	Opens the restart dialogue for this profile.
Search in backup file	If the backup files were indexed, you can search within them here.
Show backup path	You can view the path under which all the backup files for this profile are written.
