create snapshot()

This function can take a snapshot of the data generated during the mapping until then. Snapshots can only be taken in a mapping test. Calling the function during an actual job has no effect.

Parameter b is for an optional description that is shown in the test. For details, see the example below.

The return value after successful execution is true.

Important note: Snapshots are only available in the main memory. A thoughtless use could therefore lead to memory problems!

Parameters


Parameter

Description

a

(optional) If true, a snapshot will be created. Default: false.

b

(optional) Description text that is displayed for the snapshot. See example below.

Example


Let's assume the following simplified target structure.

images/download/attachments/201686441/294-version-1-modificationdate-1750216529705-api-v2.png


We go through node Node three times in our example. And on field Debug, we execute the following simple function chain.


iteration-level

concat( a, b, [CR-support c] )
a Value: This is pallet
b Result: 1
c   Value:

create snapshot(a,b)
a Value: true
b   Result: 2

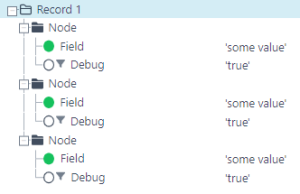

If we carry out a mapping test, we get the usual result, as with a 'normal' mapping test.

images/download/thumbnails/201686441/295-version-1-modificationdate-1750216529707-api-v2.png

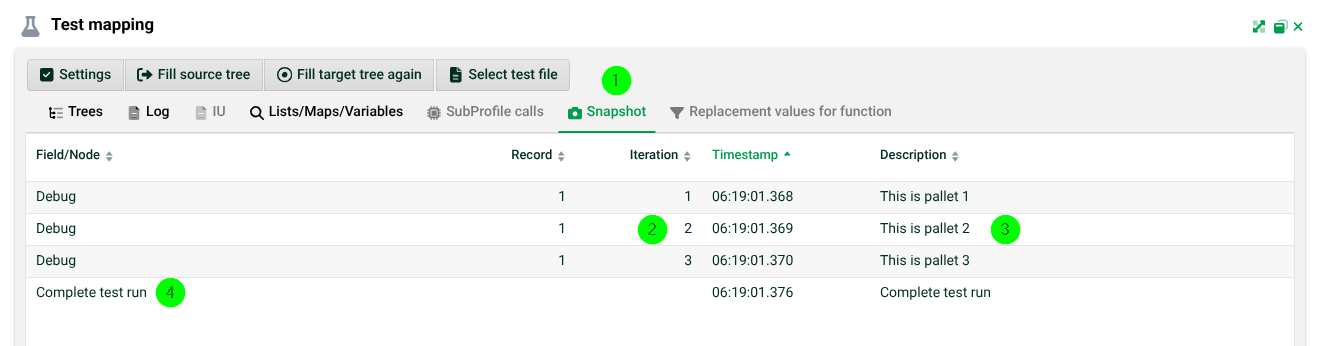

Now switch to tab (1) "Snapshot".

images/download/attachments/201686441/296_EN-version-1-modificationdate-1750216529670-api-v2.png


(2) Iteration: For each time the function has been called, you will get an entry here. By double-clicking or via the context menu, you can display the data status of the respective snapshot. See the following screenshots. Note: The state of the data in tabs Lists/Maps/Variables and SubProfile calls corresponds to the respective iteration. But the tab Log always contains the final result of the run.

(3) Description: The description from parameter b.

(4) Complete test run: This is the complete result again, after the entire test run.


The data status after iteration 1 (of 3):


images/download/attachments/201686441/298_EN-version-1-modificationdate-1750216529674-api-v2.png

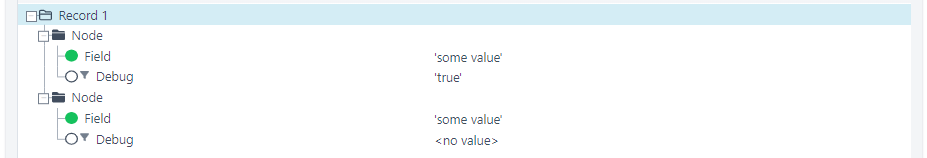

The data status after iteration 2 (of 3):


images/download/attachments/201686441/299_EN-version-1-modificationdate-1750216529672-api-v2.png
