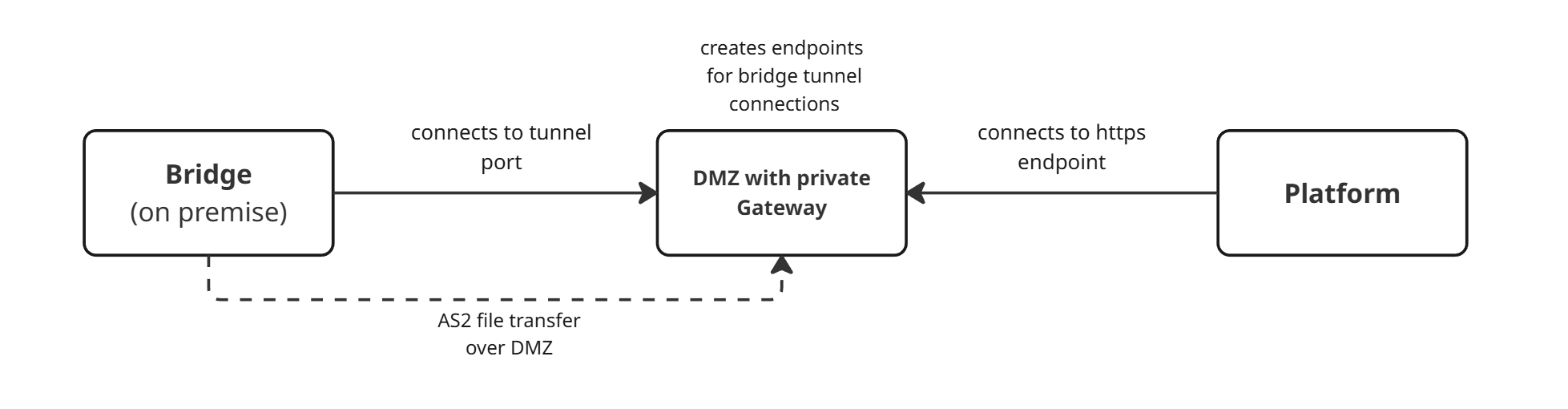

It is possible to run your own private Bridge Gateway. You can use a DMZ Server for this with some additional configuration.

Add the following <Call name="addApplication">... </Call> block to the file GATEWAY_INSTALLATION_FOLDER>/etc/startup_dmz.xml

Parameter:

gatewayBaseEndpoint: Address of the DMZ/Gateway as seen from the Lobster Platform. This is the URL where the platform sends its requests to bridges.
gatewayHost: This is the tunnel address, which is used by the Bridge to establish a tunnel.

startup_dmz.xml

<Configure class="com.ebd.hub.services.startup.StartupService">
...

  <Call name="addApplication">
        <Arg>
            <New class="de.lobster.scm.dmz.bridge.BridgeGatewayServerApp">
                <Set name="logLevel">ALL</Set>
                <Set name="tunnelServer">
                    <New class="de.lobster.scm.dmz.transport.NioTunnelServer">
                        <Set name="tunnelBindAddress">0.0.0.0</Set>
                        <Set name="tunnelPort">8444</Set>
                    </New>
                </Set>

                <!-- Endpoint must match the http server to be accessible from the platform instance -->
                <!-- SSL must be configured and enabled in etc/admin.xml -->
                <Set name="httpServerName">Administrative Server</Set>
                <Set name="gatewayBaseEndpoint">https://dmz-address.internal-customer-network.de:9000/bridge/</Set>
                <Set name="gatewayHost">dmz-address.external-customer-network.de:8444</Set>

            </New>
        </Arg>
   </Call>
...
</Configure>

DMZ/Gateway memory settings

The DMZ memory settings may have to be increased:

This are the minimal recommended memory settings for the JVM with a private DMZ/Gateway:

Operation system 8gb RAM
Java Heap Memory 4gb
Java DirectMemory 1gb

JVM parameter:

-Xms4096M -Xmx4096M -XX:MaxDirectMemorySize=1024M

Linux

./bin/execute.sh

JAVA_OPTIONS="-Xms4096M -Xmx4096M -XX:MaxDirectMemorySize=1024M -server ...

Windows console

./bin/hub.bat

set OPTIONS=-Xms4096M -Xmx4096M -XX:MaxDirectMemorySize=1024M -server ...

Windows Service

./etc/wrapper.conf

...
# Initial Java Heap Size (in MB)
wrapper.java.initmemory=4096
# Maximum Java Heap Size (in MB)
wrapper.java.maxmemory=4096
...
wrapper.java.additional.<some number>=-XX:MaxDirectMemorySize=1024M
