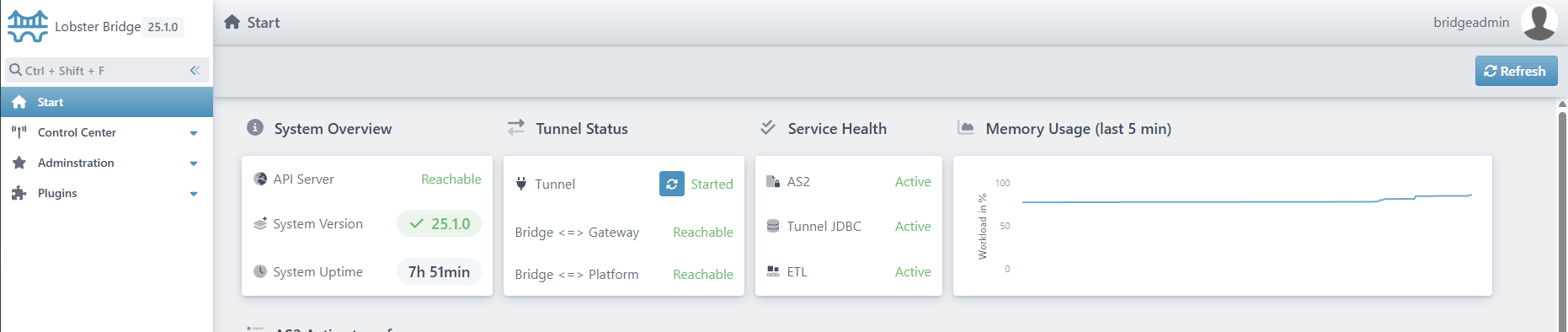

Bridge Dashboard

API Server

Connection status to the Lobster API Server for the Bridge Registry.

Possible problems:

• wrong Bridge Credentials

• network connectivity to the gateway (check network and firewall settings)

System Version

This is the version of the connected Lobster Platform. If this does not match the Bridge version, you should update the Bridge.

see 2025-10-21_09-08-50_Bridge Updates

Tunnel

If the Bridge credentials are changed, restart the tunnel with

Possible problems:

• wrong Bridge Credentials

• network connectivity to the gateway (check network and firewall settings)

Bridge - Gateway

Connection status to the Gateway. If "Reachable", the Bridge ist connected to the Gateway

Bridge - Platform

Connection status to the Platform. If "Reachable" , the Platform has connected to the Gateway and can reach the Bridge.

AS2

If AS2 is "Not active",

• AS2 may be disabled by the user, see Bridge AS2 Setup: Enable and Disable AS2 Connector

• AS2 Service may fail if there are configuration errors in the AS2 configuration.

Tunnel JDBC

Only fails if there are system errors at startup of the bridge, check the logs.

ETL

Only fails if there are system errors at startup of the bridge, check the logs.
