Overview of this page

The .CargoImpToCHAMPEdifactPostExecuter v4.7.0 validates a Cargo-IMP message (Cargo Interchange Message Procedures) so that it can be processed by CHAMP systems.

To ensure downward compatibility, the version of the CHAMP message to be created is configurable.

Since each version of CHAMP messages could have different configuration options, these are listed separately.

Configurations

Common configurations

Property

Description

Example

Required?

Default value

version

The version of the CHAMP message to be created

0.4

line.separator

The line break to be used

\n

System dependent:

Windows: \r\n
Linux: \n

In general: If a required entry is not specified, an exception is thrown and the profile ends with an error.

Configurations for version 0.4

Property	Description	Example	Required?	Default value
pimaAddressAirlinePrefixTranslationFilePath	the path to the file containing the airline prefix PIMA addresses and their translation	./conf/path/to/the/file.csv
pimaAddressAirlinePrefixTranslationFileCsvDelimiter	the CSV separator used to separate the keys and values in the airline prefix file	,		;
pimaAddressAirlinePrefixTranslationFileEncoding	the encoding of the CSV file containing the airline prefix PIMA addresses and their translations	`8859_1`see https://docs.oracle.com/javase/8/docs/technotes/guides/intl/encoding.doc.html		8859_1
pimaAddressAirlinePrefixKeyColumnIndex	the index of the column containing the key for the translation of the airline prefix	1
pimaAddressAirlinePrefixValueColumnIndex	the index of the column containing the key for the translation of the airline prefix	3
pimaAddressSenderIdTranslationFilePath	the path to the file containing the sender ID PIMA addresses and their translation	./conf/path/to/the/file.csv
pimaAddressSenderIdTranslationFileCsvDelimiter	the CSV separator that was used to separate the keys and the values in the sender ID file	,		;
pimaAddressSenderIdTranslationFileEncoding	the encoding of the CSV file containing the sender ID PIMA addresses and their translations	`8859_1` see https://docs.oracle.com/javase/8/docs/technotes/guides/intl/encoding.doc.html		8859_1
pimaAddressSenderIdKeyColumnIndex	the index of the column containing the key for the translation of the sender ID	2
pimaAddressSenderIdValueColumnIndex	the index of the column containing the translated value of the sender ID	4
airlinePrefixVariableName	the name of the variable containing the airline value to be translated (see also Property `pimaAddressAirlineKeyColumnIndex`)	VAR_AIRLINE_PREFIX
senderIdVariableName	the name of the variable containing the sender value to be translated (see also Property `pimaAddressSenderKeyColumnIndex`)	VAR_SENDER_ID

Example properties file for version 0.4

version = 0.4
pimaAddressAirlinePrefixTranslationFilePath = ./conf/customername/project/pima_address_airline_prefix_translation_file.csv
pimaAddressAirlinePrefixTranslationFileEncoding = 8859_1
pimaAddressAirlinePrefixTranslationFileCsvDelimiter = ;
pimaAddressAirlinePrefixKeyColumnIndex = 1
pimaAddressAirlinePrefixValueColumnIndex = 3
pimaAddressSenderIdTranslationFilePath = ./conf/customername/project/pima_address_sender_id_translation_file.csv
pimaAddressSenderIdTranslationFileEncoding = 8859_1
pimaAddressSenderIdTranslationFileCsvDelimiter = ;
pimaAddressSenderIdKeyColumnIndex = 2
pimaAddressSenderIdValueColumnIndex = 4
airlinePrefixVariableName = VAR__AIRLINE_PREFIX
senderIdVariableName = VAR__SENDER_ID

Usage

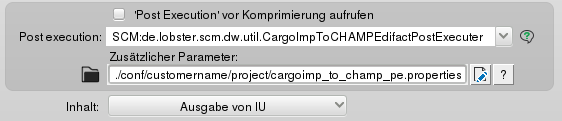

The PostExecuter can be used either in phase 5 (IntegrationUnit) or phase 6 (response path).

images/download/attachments/78252207/image2016-8-1_13_5_5-version-1-modificationdate-1627311725458-api-v2.png

Examples

Example for version 0.4

Source

FWB/17
[...]
Nachrichteninhalt
[...]
OCI/AA/EXP/M/ZV FILED

Result

UNB+IATA:1+pima address of sender:PIMA+pima address of airline:PIMA+160801:0912+ICREF+0'UNH+MSGREF+CIMFWB:17+218'FWB/17
[...]
Nachrichteninhalt
[...]
OCI/AA/EXP/M/ZV FILED
'UNT+3+MSGREF'UNZ+1+ICREF'
