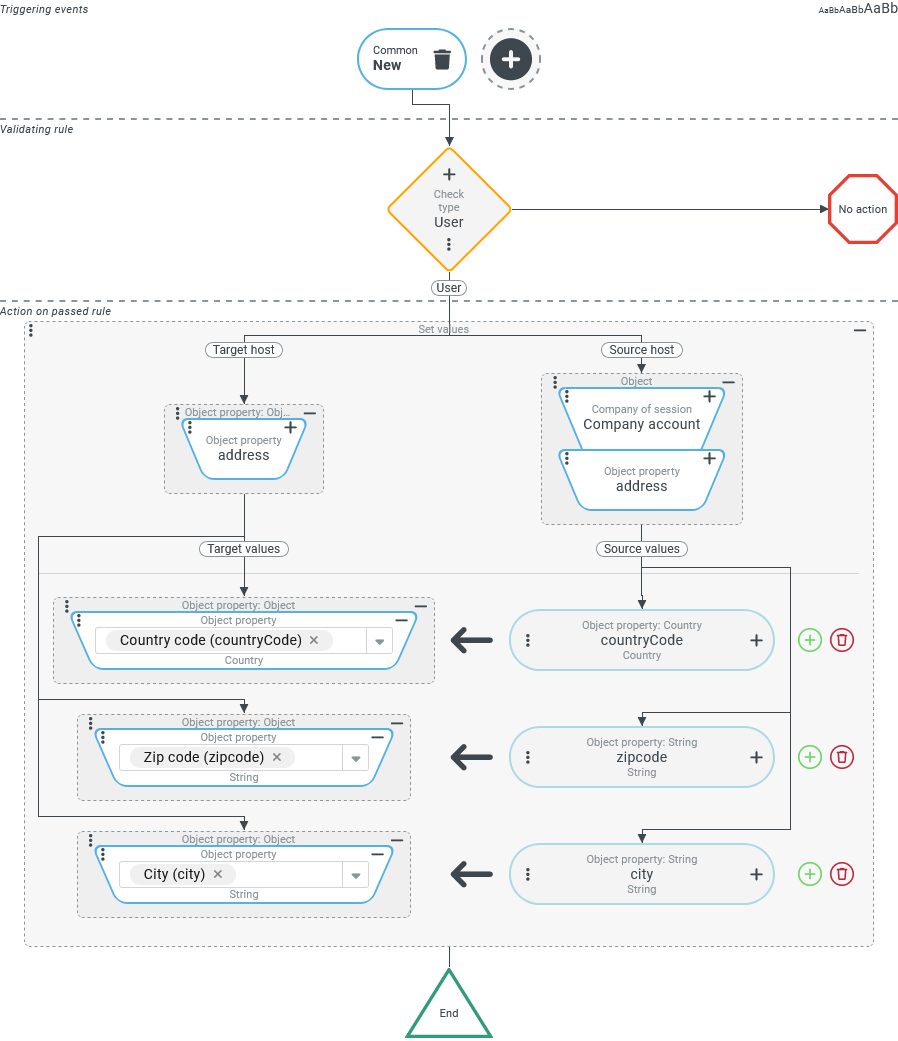

Typical use case: Mapping of selected property values

Whenever a new user (see Users) is created, selected address characteristics from the address of the Company of session are transferred to their address:

• • 'Country' (countryCode)

  • 'ZIP code' (zipcode)

  • 'City' (city)

Configuration:

Special use case: Access to the source host, target host and another reference object

Based on the previous example, a registered company should be given the option of creating several Users from a list in csv format via Batch import.

When creating the new user account, the 'Country', 'ZIP code' and 'City' address fields should again be assigned the corresponding values from the address of the Company of session.

Furthermore, a text value is assigned to the user account in the 'Match code' address field, in which the unique 'username' is linked to the value from the 'Match code' (accMatchCode) address field of the Company of session according to the following structure:

<username>@<company_address_accMatchCode>

Configuration:

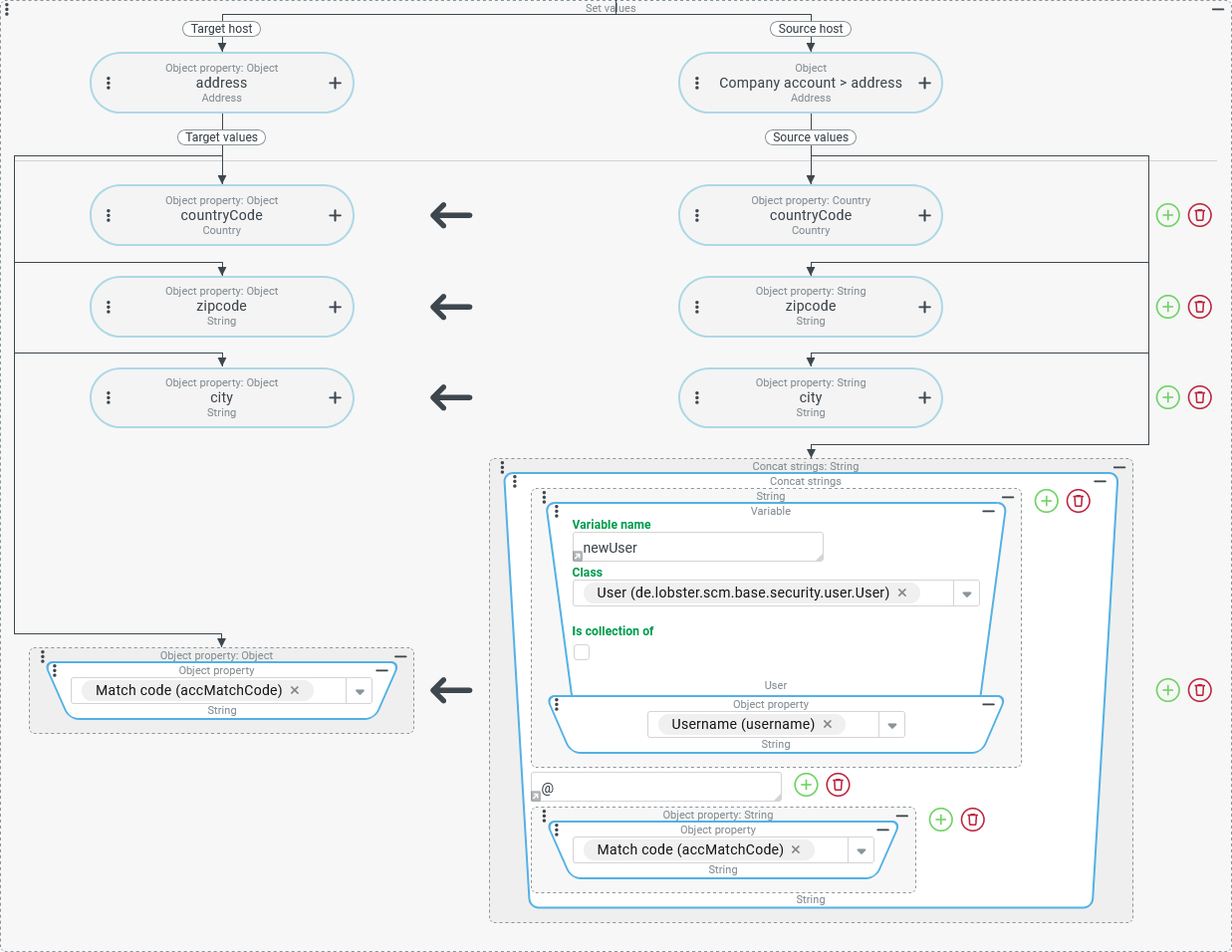

The following screenshot shows how the mapping from the previous example can be extended to be reused in the context of an event handling that is triggered when a user account is 'created' (see Common) via Batch import.

►NOTE◄ In contrast to the previous use case, where an empty user account should be enriched before displaying the unsaved data in a data entry mask, the Batch import provides some data (e.g. 'Username') for the user account to be created from the csv file. In the context of a CREATE action, the 'Create” event is automatically triggered during import. An event handling that reacts to this event can then 'revise' the data to be saved. The Validating rule of the event handling can use an AND junction with the absolutely necessary Check type (see above) to specify additional conditions that define when the synchronization of the address data takes effect at all.

• The definitions for Source host and Target host as well as the first three assignments correspond exactly to the configuration from the previous example.

• The fourth assignment is structured as follows:

  • As the Target value (left), in the same way as the other assignments, an Object property resolver references the 'Match code' (accMatchCode) field in the address of the user account that is defined as the Target host.

  • The Source value (right) is defined by a Concat strings resolver with three text components:

    • The first text component defines a value resolver chain (see Chained resolver):


      • A Variable value resolver to the current reference object provided by the system via the entity variable.

      • The concatenated Object property resolver can read the 'username' (username) field in this way, even though it is not contained in the company address provided as the Source host.

    • The second text component is the '@' separator defined as static text.

    • The third text component accesses the 'Match code' (accMatchCode) field in the address of the Company of session, which is defined as the Source host.

Special use case: Create list with values

For automated tests of an interface, certain geopositions are to be generated repeatedly at random in the context of a For each loop and assigned to a randomPosition variable.

The individual geoposition should be defined as a list of exactly two decimal numbers with a maximum of three decimal places, the first of which specifies the latitude with a value range of ±90° and the second the longitude with a value range of ±180°.

Configuration:
