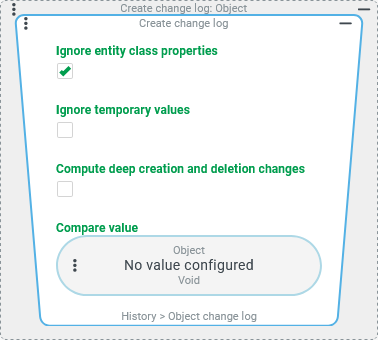

The Ignore entity attributes option is checked by default.

When comparing 'entity data', the so-called entity attributes are then not evaluated.

Example: The input value is the volatile data of a random entity, which (without configuration for the Compare value) is matched with the server-side data state. In the default configuration for the Change log value resolver shown on the top right, the Ignore entity attributes option is checked.

If the only change in the entity's volatile data is a 'change of owner' – i.e. a value for the entity attribute 'owner' (ownerId) field that has changed compared to the Original entity, the value resolver still returns 'No value' ($null), since the volatile data state is evaluated as unchanged despite the change.

If the Ignore entity attributes option is unchecked, then the comparison between the input value and compare object for the change log will also include all entity attributes.

For the above example, this means that a 'change of owner' is also considered a change, so that in the return value of the Change log value resolver you will find, among other things, a SimpleValueChangeLog object for the ownerId field.

The Log details for deleted and created values option is unchecked by default.

If the compare value is classified as 'created' or 'deleted', only the minimum functionality appears in the return value of the Change log value resolver. The respective 'change type' (changeType), i.e. DELETED or CREATED is specified in the header of the respective change log entry, without giving all details about the object.

Example: The input value is volatile data for a company account in which the address (still) stored on the server side has been deleted. When the comparison is made with the Log details for deleted and created values option unchecked (see screenshot above right), an EntityChangeLog (with the embedded address as entity) is output for the address field, which shows the 'change type' (changeType) DELETED and identifies the deleted entity only via the fromClass and fromId fields.

If the Log details for deleted and created values option is checked (see screenshot below right), then in the scenario described above the comparison will provide detailed information for the deleted address, which for this purpose is marked with 'No value' ($null). The EntityChangeLog for the address field contains, in addition to the data also listed in the default case (fromClass,fromId) in the changeLogs list field, a possibly very extensive listing of child change logs, as if each feature within the address had been deleted individually. By recursion, this also involves attributes of the address, address contacts, their attributes, etc.

The optional Compare value parameter can be used to contrast the input value with a compare object.

If a configuration for the compare value is completely omitted (default, see screenshot on the right), then the 'original object' for the input value is used as the compare object.

• For an entity as an input value, this means that a volatile and possibly changed data state is compared with the server-side state from the beginning of the transaction.

• For all other input value types, the input value itself is considered as the compare object, so no change log is expected. The return value is then 'No value' ($null).

In the configuration on the right, the address of the Company of session (in the input value) is compared with the address specified for the User of session as a compare object.

• The company address in the input value is provided here by a concatenation with the Company of session value resolver and an Object property value resolver that accesses the address field of the company account.



• In the Compare value parameter, starting from the User of session value resolver, the Input object (type safe) value resolver is used to ensure that a user account (and not, for example, a guest user account) is present. Then the address field is accessed in the same way as the input value.

►NOTE◄ If a guest user (see Guest users) is logged in, the User of session value resolver does not return a user account (see Users). Then the concatenated Input object (type safe) value resolver passes 'No value' ($null) to the Object property value resolver. However, since a guest user account does not have an address field, this would not work anyway. If a value resolver chain is configured for the Compare value that returns 'No value' ($null) at runtime, $null is used as the compare object. If an entity is present as input value, this results in an EntityChangeLog that evaluates the entity in the input value as 'created' (CREATED). Without configuration for the Compare value, on the other hand, $null would be returned, as described above.

"ABC"

"XYZ"

{
	"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
	"fromIndex": -1,
	"fromValue": "DEF",
	"name": null,
	"toIndex": -1,
	"toValue": "ABC"
}

• For a text value (String), the string as a whole is considered a value (fromValue, toValue).



• A comparison for the length (length), which is offered in the Object property value resolution as a 'field', does not take place, since it is a calculated quantity.



• For an independent String the index (fromIndex, toIndex) and the name (name) does not matter.

4711

3210

{
	"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
	"fromIndex": -1,
	"fromValue": {
		"class": "java.lang.Integer",
		"value": 3210
	},
	"name": null,
	"toIndex": -1,
	"toValue": {
		"class": "java.lang.Integer",
		"value": 4711
	}
}

• A numerical value is considered as a value (fromValue, toValue) considering the data type (class).



• In the example above, the sequence of digits (in JSON) for the compared values is interpreted as an Integer.



• For an independent String the index (fromIndex, toIndex) and the name (name) does not matter.

{ "class": "java.lang.Long", "value": "4711" }

e.g. from a Long value resolver

{ "class": "java.lang.Integer", "value": "4711" }

e.g. from an Integer value resolver

{
	"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
	"fromIndex": -1,
	"fromValue": {
		"class": "java.lang.Integer",
		"value": 4711
	},
	"name": null,
	"toIndex": -1,
	"toValue": {
		"class": "java.lang.Long",
		"value": "4711"
	}
}

• Input value and Compare value differ here only in the data type (class).

• The SimpleValueChangeLog therefore registers a change of the value, but does not indicate that the class field has changed.

Enumeration value 'East' (E) from the user-defined dynamic enumeration DIRECTIONS:

see also Any dynamic enumeration

Enumeration value 'North' (N) from the user-defined dynamic enumeration DIRECTIONS:

see also Any dynamic enumeration

{
	"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
	"fromIndex": -1,
	"fromValue": {
		"class": "de.lobster.scm.denum.DynamicEnumDto",
		"enumName": "DIRECTIONS",
		"name": "N"
	},
	"name": null,
	"toIndex": -1,
	"toValue": {
		"class": "de.lobster.scm.denum.DynamicEnumDto",
		"enumName": "DIRECTIONS",
		"name": "E"
	}
}

• The values of static and dynamic enumerations are compared as 'Simple values'.

• For independent enumeration values the index (fromIndex, toIndex) and name (name) does not matter.

["Tom","Dick","Harry","Sally"]

["Tom","Dick","Harry"]

{
	"class": "de.lobster.scm.persistence.history.CollectionChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": -1,
			"fromValue": null,
			"name": null,
			"toIndex": 3,
			"toValue": "Sally"
		}
	],
	"changeType": null,
	"fromIndex": -1,
	"fromLength": 3,
	"name": null,
	"toIndex": -1,
	"toLength": 4
}

• An entry has been added (at the end) to a list (List) of text values.

  ►NOTE◄ In fact, the list in the input value is compared with another list in the Compare value, which contains the same static entries at the first three positions. A real 'change' to the statically defined list (e.g. by Modify list) could not be examined by Change log, because no Original entity is available as a reference.



• The CollectionChangeLog registers the change of the length of the list (fromLength, toLength).



• On the other hand, a SimpleValueChangeLog appears in the changeLogs list field, specifying the new value (toValue) for the added list item (toIndex).

["Tom","Dick","Harry"]

["Tom","Dick","Harry","Sally"]

{
	"class": "de.lobster.scm.persistence.history.CollectionChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": 3,
			"fromValue": "Sally",
			"name": null,
			"toIndex": -1,
			"toValue": null
		}
	],
	"changeType": null,
	"fromIndex": -1,
	"fromLength": 4,
	"name": null,
	"toIndex": -1,
	"toLength": 3
}

• From a list (List) of text values the last entry is 'removed' (see note above).



• The CollectionChangeLog registers on the one hand the change of the length of the list (fromLength, toLength).

• On the other hand, a SimpleValueChangeLog appears in the changeLogs list field, which logs the 'disappearance' of the deleted list item (fromIndex, fromValue) as a value change to 'No value' ($null).

  ►NOTE◄ It can be seen that the list position was not really assigned the value $null from the fact that the index (toIndex) changes to -1. With the list ["Tom","Dick","Harry",null] as input value the toIndex here would be 3 unchanged.

{ "class": "set", "data": [ "Tom", "Harry" ] }

{ "class": "set", "data": [ "Tom", "Harry", "Dick"] }

{
	"class": "de.lobster.scm.persistence.history.CollectionChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": -1,
			"fromValue": null,
			"name": null,
			"toIndex": -1,
			"toValue": "Dick"
		}
	],
	"changeType": null,
	"fromIndex": -1,
	"fromLength": 2,
	"name": null,
	"toIndex": -1,
	"toLength": 3
}

• An entry is added to a 'Unique list' (Set) (see note above).



• The CollectionChangeLog registers the change in the length of the list (fromLength, toLength).

• On the other hand, a SimpleValueChangeLog appears in the changeLogs list box, naming the additional entry (toValue).

►NOTE◄ The 'Unique list' does not manage index numbers for the entries. Therefore, the fromIndex and toIndex fields show the default value -1.

[1,2,3]

[3,2,1,0]

{
	"class": "de.lobster.scm.persistence.history.CollectionChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": 3,
			"fromValue": {
				"class": "java.lang.Integer",
				"value": 0
			},
			"name": null,
			"toIndex": -1,
			"toValue": null
		},
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": 2,
			"fromValue": {
				"class": "java.lang.Integer",
				"value": 1
			},
			"name": null,
			"toIndex": 0,
			"toValue": {
				"class": "java.lang.Integer",
				"value": 1
			}
		},
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": 0,
			"fromValue": {
				"class": "java.lang.Integer",
				"value": 3
			},
			"name": null,
			"toIndex": 2,
			"toValue": {
				"class": "java.lang.Integer",
				"value": 3
			}
		}
	],
	"changeType": null,
	"fromIndex": -1,
	"fromLength": 4,
	"name": null,
	"toIndex": -1,
	"toLength": 3
}

• Two lists with static Integer values are compared. All values in the input value also appear in the Compare value, but in a partially different order. The Compare value contains an additional element (0) in the last position.



• The CollectionChangeLog registers on the one hand the change of the length of the list (fromLength, toLength).

• The changeLogs field shows changes per SimpleValueChangeLog for the following list items:



  • The last position (fromIndex 3) is considered changed to 'No value' ($null), which means it is deleted. This can also be seen from the change of the index.

  • The value 1 is considered 'moved unchanged' to the first position in the input value (toIndex 0).



  • The value 3 is considered as 'moved unchanged' to the last position in the input value (toIndex 2).

►NOTE◄ The value 2 does not appear in the changeLogs field because it is considered completely unchanged.

A collection created with the Create list contains volatile data from different entities that may have changed from the server-side state:

• The first list element defined is the value of a cneCompany variable that refers to a specific company account (see Company accounts accounts).



• The second list element is the value of a cneKeyUser variable that refers to a specific user account (see Users).

Both accounts have already been created and may have been changed in the current context. The Change log value resolver should detect any 'volatile' changes to the accounts listed as entities.

As a Compare value, the list of entities in the input value is contrasted with a list of the associated 'original objects'.

This can be achieved with the Collect values value resolver, which here uses the Original entity value resolver as the Value to collect in order to retrieve the server-side state for each element of the list of entities present as input value.

{
	"class": "de.lobster.scm.persistence.history.CollectionChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.EntityChangeLog",
			"changeLogs": [
				{
					"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
					"fromIndex": -1,
					"fromValue": true,
					"name": "active",
					"toIndex": -1,
					"toValue": false
				}
			],
			"changeType": "MODIFIED",
			"fromClass": "de.lobster.scm.base.security.user.User",
			"fromId": "1901",
			"fromIndex": 1,
			"name": null,
			"toClass": "de.lobster.scm.base.security.user.User",
			"toId": "1901",
			"toIndex": 1
		}
	],
	"changeType": null,
	"fromIndex": -1,
	"fromLength": 2,
	"name": null,
	"toIndex": -1,
	"toLength": 2
}

• The CollectionChangeLog (right) lists only a single entry in the changeLogs field, which affects the user account at the second list position.



• The changeLogs field in the EntityChangelog for this list entry indicates that the value for the active field has changed from true to false . This means the user account should be be disabled.



• No changes appear to have been made to the company account.

{ "class": "de.lobster.scm.utils.date.DateTime",
"dateValue": "...", "timeZone": "Europe/Berlin" }

A 'Date with time' object determined as Relative date with time:

• 'Start of today' in the Time zone Europe/Berlin .

{ "class": "de.lobster.scm.utils.date.DateTime",
 "dateValue": "...", "timeZone": "Europe/Rome" }

• 'Start of today' in the Time zone Europe/Rome.

{
	"class": "de.lobster.scm.persistence.history.ObjectChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": -1,
			"fromValue": {
				"timeZoneId": "Europe/Rome"
			},
			"name": "timeZone",
			"toIndex": -1,
			"toValue": {
				"timeZoneId": "Europe/Berlin"
			}
		}
	],
	"changeType": "MODIFIED",
	"fromClass": "de.lobster.scm.utils.date.DateTime",
	"fromIndex": -1,
	"name": null,
	"toClass": "de.lobster.scm.utils.date.DateTime",
	"toIndex": -1
}

• Since the data type 'Date with time' is defined in Lobster Data Platform / Orchestration as an object with the dateValue and timeZone fields, the comparison between two date values by Change log value resolver results in an ObjectChangeLog.



• In the example, the 'Start of next day' is compared for two different time zones. Since the compared time zones have the same offset from UTC, the compared objects differ only in the timeZone field, while the dateValue field shows the same numerical value for the milliseconds since 01.01.19700 00:00:00.000 (UTC) in both cases.

{ "name": "Darth Vader", "nickname": "Dee-Vee" }

{ "name": "Anakin" }

{
	"class": "de.lobster.scm.persistence.history.ObjectChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": -1,
			"fromValue": "Anakin",
			"name": "name",
			"toIndex": -1,
			"toValue": "Darth Vader"
		},
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": -1,
			"fromValue": null,
			"name": "nickname",
			"toIndex": -1,
			"toValue": "Dee-Vee"
		}
	],
	"changeType": "MODIFIED",
	"fromClass": "flex.messaging.io.amf.ASObject",
	"fromIndex": -1,
	"name": null,
	"toClass": "flex.messaging.io.amf.ASObject",
	"toIndex": -1
}

• Two 'client objects' are compared with each other.



• The ObjectChangeLog evaluates the object state in the changeType field as 'changed' (MODIFIED).



• In the changeLogs field two changes are shown by SimpleChangeLog:



  • The name field is evaluated as changed from "Anakin" (fromValue) to "Darth Vader" (toValue).



  • The nickname field, which occurs only in the input value, is evaluated as changed from 'No value' ($null).

{ "name": "Luke",
  "tools": { "class": "list", "data": [
               { "skill": "TheForce™" },
               { "item": "LightSaber™" }      ]

           }
}

{ "name": "Luke" }

{
	"class": "de.lobster.scm.persistence.history.ObjectChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.CollectionChangeLog",
			"changeLogs": [
				{
					"class": "de.lobster.scm.persistence.history.ObjectChangeLog",
					"changeLogs": [
					],
					"changeType": "CREATED",
					"fromClass": null,
					"fromIndex": -1,
					"name": null,
					"toClass": "flex.messaging.io.amf.ASObject",
					"toIndex": 0
				},
				{
					"class": "de.lobster.scm.persistence.history.ObjectChangeLog",
					"changeLogs": [
					],
					"changeType": "CREATED",
					"fromClass": null,
					"fromIndex": -1,
					"name": null,
					"toClass": "flex.messaging.io.amf.ASObject",
					"toIndex": 1
				}
			],
			"changeType": null,
			"fromIndex": -1,
			"fromLength": 0,
			"name": "tools",
			"toIndex": -1,
			"toLength": 2
		}
	],
	"changeType": "MODIFIED",
	"fromClass": "flex.messaging.io.amf.ASObject",
	"fromIndex": -1,
	"name": null,
	"toClass": "flex.messaging.io.amf.ASObject",
	"toIndex": -1
}

• Two 'client objects' are compared with each other.



• The ObjectChangeLog evaluates the object state in the changeType field as 'changed' (MODIFIED).

• The changeLogs field of the (outer) ObjectChangeLog contains a CollectionChangeLog, because an additional list field tools was detected in the input value.



• The changeLogs field of the CollectionChangeLog contains two ObjectChangeLog instances that record no details about the added "tools" other than the list position (toIndex) and the 'change type' (CREATED).

  ►NOTE◄ Obviously the Change log value resolver was used here without selecting the Log details for deleted and created values option. Otherwise, the return value would also contain information about the object fields (skill and item) as SimpleValueChangeLog in the changeLogs field of the respective ObjectChangeLog.

An event handling is triggered by the 'Change' event (see Common action event) so that it reacts to the saving of already created entities. A Check type ensures that the event action becomes active only in the context of Association criteria.

The input value is always the changed volatile data of the association criterion that is saved. Before saving changes, a Change log should be created so that – depending on the type of changes – an administrator can be notified if necessary.

Example:

<?xml version="1.0" encoding="UTF-8"?>
<core:AssociationCriteria ... priority="100" name="XF_MFST_AGV" description="PLEASE CHECK!" onlyForLogic="false">
   <core:RuleJunction junctionType="CONJUNCTION">
      <core:CheckTypeRule type="mfst:Manifest" isCollectionOf="false" checkNullValue="false"/>
      <core:EntityPropertyRule>
         <core:EqualsMatcher deepCompare="false">
            <core:LiteralValueResolver>
               <value enumName="mfst:ManifestType" name="AGV" xsi:type="core:DynamicEnumValue"/>
            </core:LiteralValueResolver>
         </core:EqualsMatcher>
         <core:PropertyResolver property="manifestType"/>
      </core:EntityPropertyRule>
   </core:RuleJunction>
</core:AssociationCriteria>

• In the example, only one text for the 'description' (description) field was added to the association criteria. The EntityChangeLog documents exactly this one change via SimpleChangeLog in the changeLogs list field.

not configured, that is the Original entity to the entity in question

{
	"class": "de.lobster.scm.persistence.history.EntityChangeLog",
	"changeLogs": [
		{
			"class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
			"fromIndex": -1,
			"fromValue": "",
			"name": "description",
			"toIndex": -1,
			"toValue": "PLEASE CHECK!"
		}
	],
	"changeType": "MODIFIED",
	"fromClass": "de.lobster.scm.association.criteria.AssociationCriteria",
	"fromId": "9901",
	"fromIndex": -1,
	"name": null,
	"toClass": "de.lobster.scm.association.criteria.AssociationCriteria",
	"toId": "9901",
	"toIndex": -1
}

Based on the changed state of the association criteria in the previous example, the notified administrator has reviewed the association criteria and now wants to save it again with changes.

The event handling reacts again and determines the changes to the association criteria via the Change log value resolver.

Example:

<?xml version="1.0" encoding="UTF-8"?>
<core:AssociationCriteria ... priority="50" name="XF_MFST_AGV" description="CHECKED AND APPROVED W/CHANGES" onlyForLogic="false">
   <core:RuleJunction junctionType="CONJUNCTION">
      <core:CheckTypeRule type="mfst:Manifest" isCollectionOf="false" checkNullValue="false"/>
      <core:EntityPropertyRule>
         <core:EqualsMatcher deepCompare="false">
            <core:LiteralValueResolver>
               <value enumName="mfst:ManifestType" name="AGV" xsi:type="core:DynamicEnumValue"/>
            </core:LiteralValueResolver>
         </core:EqualsMatcher>
         <core:PropertyResolver property="manifestType"/>
      </core:EntityPropertyRule>
      <core:AssociationSubCriteriaRule id="2651"/>
   </core:RuleJunction>
</core:AssociationCriteria>

• The changeLog field in the EntityChangeLog now lists multiple child change logs for the association criteria:



  • The SimpleValueChangeLog in the first position proves that the 'description' (description) field has been changed again.



  • The SimpleValueChangeLog in the second position proves that the 'priority' (priority) has been reduced from 100 to 50.



  • The following ObjectChangeLog shows a change in the 'rule set' in the rule field of the association criteria, which can be 'examined' step by step along the nesting:



    • The CollectionChangeLog affects the rules list field within the outer RuleJunction, i.e. the list of child rules within the AND conjunction (CONJUNCTION):



      • The fact that an additional element was added to this collection is already proven by the change in its 'length' (fromLength, toLength).



      • For the created element, a child ObjectChangeLog appears for which the changeType field specifies the CREATED value. The position of the created element is also specified at this level (toIndex).

        ►NOTE◄ Apparently, the Log details for deleted and created values option was also checked for the Change log value resolver, so the changeLogs list box contains more details of the added object:



        • The included SimpleValueChangeLog reflects the value (2651) assigned to the id field of the added Sub criterion rule rule (AssociationSubCriteriaRule) in the configuration.

          The following screenshot below shows the rule configuration in the administrator revised state of the association criteria:

nicht konfiguriert, also das Original entity zur betreffenden Entität

{
    "class": "de.lobster.scm.persistence.history.EntityChangeLog",
    "changeLogs": [
        {
            "class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
            "fromIndex": -1,
            "fromValue": "PLEASE CHECK!",
            "name": "description",
            "toIndex": -1,
            "toValue": "CHECKED AND APPROVED W/CHANGES"
        },
        {
            "class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
            "fromIndex": -1,
            "fromValue": {
                "class": "java.lang.Integer",
                "value": 100
            },
            "name": "priority",
            "toIndex": -1,
            "toValue": {
                "class": "java.lang.Integer",
                "value": 50
            }
        },
        {
            "class": "de.lobster.scm.persistence.history.ObjectChangeLog",
            "changeLogs": [
                {
                    "class": "de.lobster.scm.persistence.history.CollectionChangeLog",
                    "changeLogs": [
                        {
                            "class": "de.lobster.scm.persistence.history.ObjectChangeLog",
                            "changeLogs": [
                                {
                                    "class": "de.lobster.scm.persistence.history.SimpleValueChangeLog",
                                    "fromIndex": -1,
                                    "fromValue": null,
                                    "name": "id",
                                    "toIndex": -1,
                                    "toValue": {
                                        "class": "java.lang.Long",
                                        "value": "2651"
                                    }
                                }
                            ],
                            "changeType": "CREATED",
                            "fromClass": null,
                            "fromIndex": -1,
                            "name": null,
                            "toClass": "de.lobster.scm.association.criteria.rule.AssociationSubCriteriaRule",
                            "toIndex": 2
                        }
                    ],
                    "changeType": null,
                    "fromIndex": -1,
                    "fromLength": 2,
                    "name": "rules",
                    "toIndex": -1,
                    "toLength": 3
                }
            ],
            "changeType": "MODIFIED",
            "fromClass": "de.lobster.scm.association.criteria.rule.RuleJunction",
            "fromIndex": -1,
            "name": "rule",
            "toClass": "de.lobster.scm.association.criteria.rule.RuleJunction",
            "toIndex": -1
        }
    ],
    "changeType": "MODIFIED",
    "fromClass": "de.lobster.scm.association.criteria.AssociationCriteria",
    "fromId": "9901",
    "fromIndex": -1,
    "name": null,
    "toClass": "de.lobster.scm.association.criteria.AssociationCriteria",
    "toId": "9901",
    "toIndex": -1
}
