Transaction control (trxControl Atttribute)

The trxControl attribute can be used to select one of the following transaction control modes for a Batch import:

Response behaviour (responsive attribute)

The responsive attribute can be assigned a Boolean value in order to decide in the context of a function call (see Lobster_pro: Import (_data function)) whether the objects processed by a Batch import should appear as return values of the function (true) or not (false).

►NOTE◄ If the Batch import is defined as a target structure of a profile, this attribute is irrelevant.

Error handling attributes

Input agent (Phase 1)

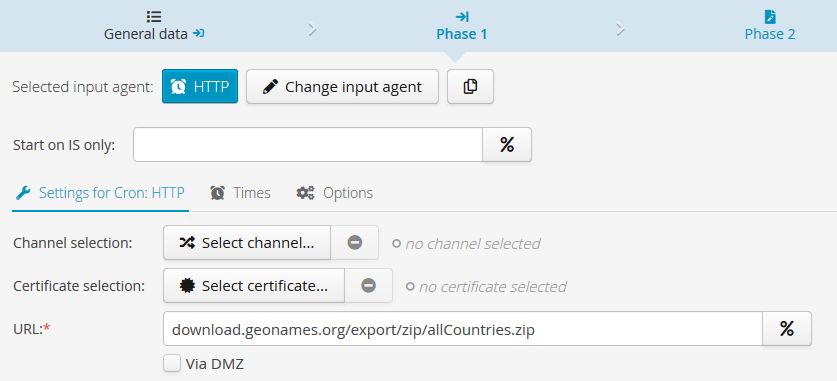

Suitable source data can be downloaded from www.geonames.org for example. The archive file provided there contains source data in text format (tab-separated, UTF-8), which fits well to the data structure of the City object of Lobster Data Platform / Orchestration, as illustrated by the mapping described in the following section. In principle, a source file could be sent to an import profile by a 'manual upload'. Alternatively, a direct retrieval via HTTP-CronJob can be configured, as shown in the following screenshot:

• In the format of the 'allCountries.zip' file specified here, specific data sources for individual countries are also available at the location specified.

• When downloading the Zip file, it is essential that the option Data comes in compressed is set on the 'General data' tab:

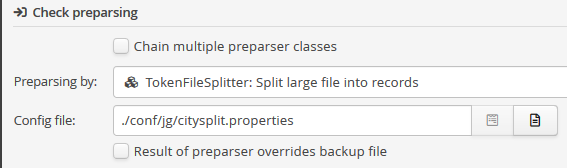

• Since the allCountries.zip file contains a large amount of data (seven-digit number of lines), it should be processed in sections (e.g. in groups of 5000 lines per record) to avoid memory space allocation issues. For this purpose, Preparsing by a special 'preparser', the TokenFileSplitter, can be set up in the profile tab 'General data'.

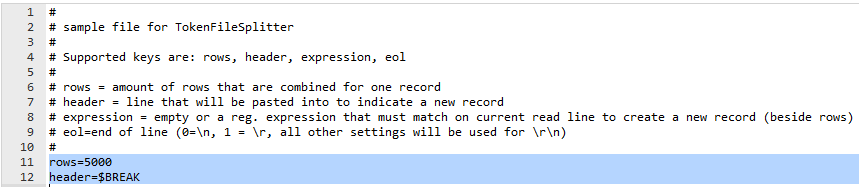

The preparser is parametrized via a configuration file. Starting from a template, only the parameters in the last two lines need to be modified here. In addition to the number of rows per data sheet, a freely selectable header string must be specified. The header is inserted between the real source data rows at all positions where a new record should start.

The mapping (see below) must use a 'matching' node (here: newPage), which recognizes the header string as a Matchcode and starts a new record. In the example:

Parser (Phase 2)

To ensure that splitting the input data into manageable amounts of data per record also affects the effective execution of the import, the options Enter output channels for each record and Incorporate IU must be set in phase 2 of the profile:

With these settings, the profile creates a separate batch import job for each record at runtime, each covering at maximum the number of batch nodes specified by parameter rows in the tokenFileSplitter preparser.

Mapping (Phase 3)

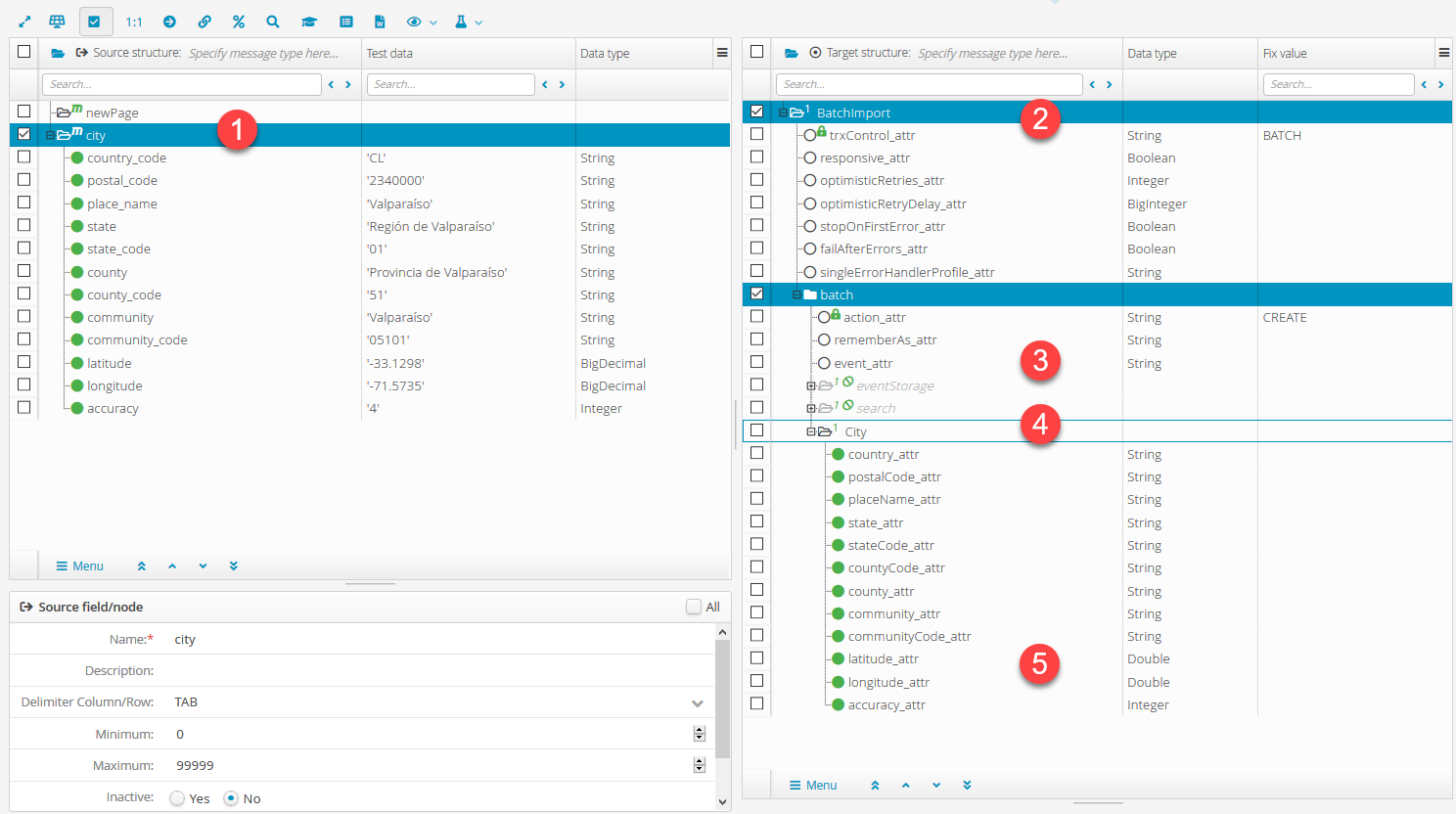

The Source structure (1) must be set up according to the imported file format. The following screenshot shows the fields to be created with data type (including test data) as child-elements of the node names city. Each row provides the data for exactly one City data object to be created.

The purpose of the newPage node added above the city node, is to split the source data into records (see above).

►NOTE◄ For the latitude and longitude fields, the data type BigDecimal was selected, for which a suitable template for converting the text into numerical values must also be assigned in the field definition.

To build the Target structure, Lobster_data offers specific templates (see Lobster SCM templates) for the data structures of Lobster Data Platform / Orchestration.

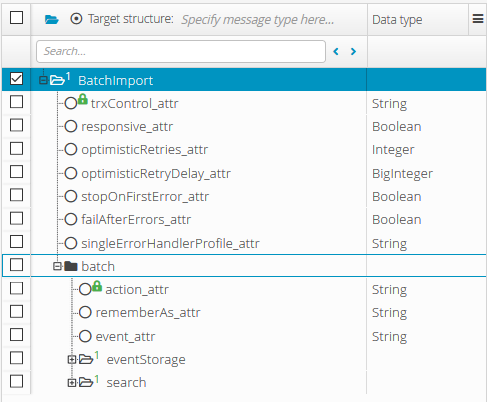

• First the core:BatchImport template (2) with the basic structure for a batch import was loaded. In the screenshot, the type BATCH is already entered as a fixed value for transaction control, since the imported City are to be imported by batch transactions and not individually.

• Inside the batch node (3), the action CREATE is assigned as a fixed value, since a new City data object is to be created for each imported row. The batch node is connected to the city node of the source structure by a path, so that it is iterated for each imported 'city'.

• The eventStorge and search nodes are not needed here and therefore set to inactive. They could also be deleted instead.

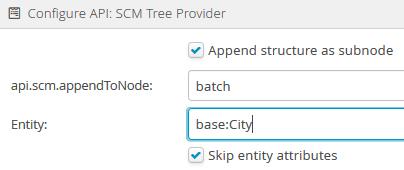

• For the City node (4), again, one of the Lobster SCM templates (base:City) was used, which was appended as a subnode to the batch node with option Skip entity attributes set:




• The mapping of source data fields to the target fields within the City node is considered self-explanatory from the labels.

• The field settings for the 'decimal' target fields latitude and longitude should be set to fit to the data content to ensure that relevant decimal places are not accidentally shortened.

►NOTE◄ The configuration for phase 4 is not required. Phases 5 and 6 are set up as described under Import. No specific settings for the Batch import are required here.

Results

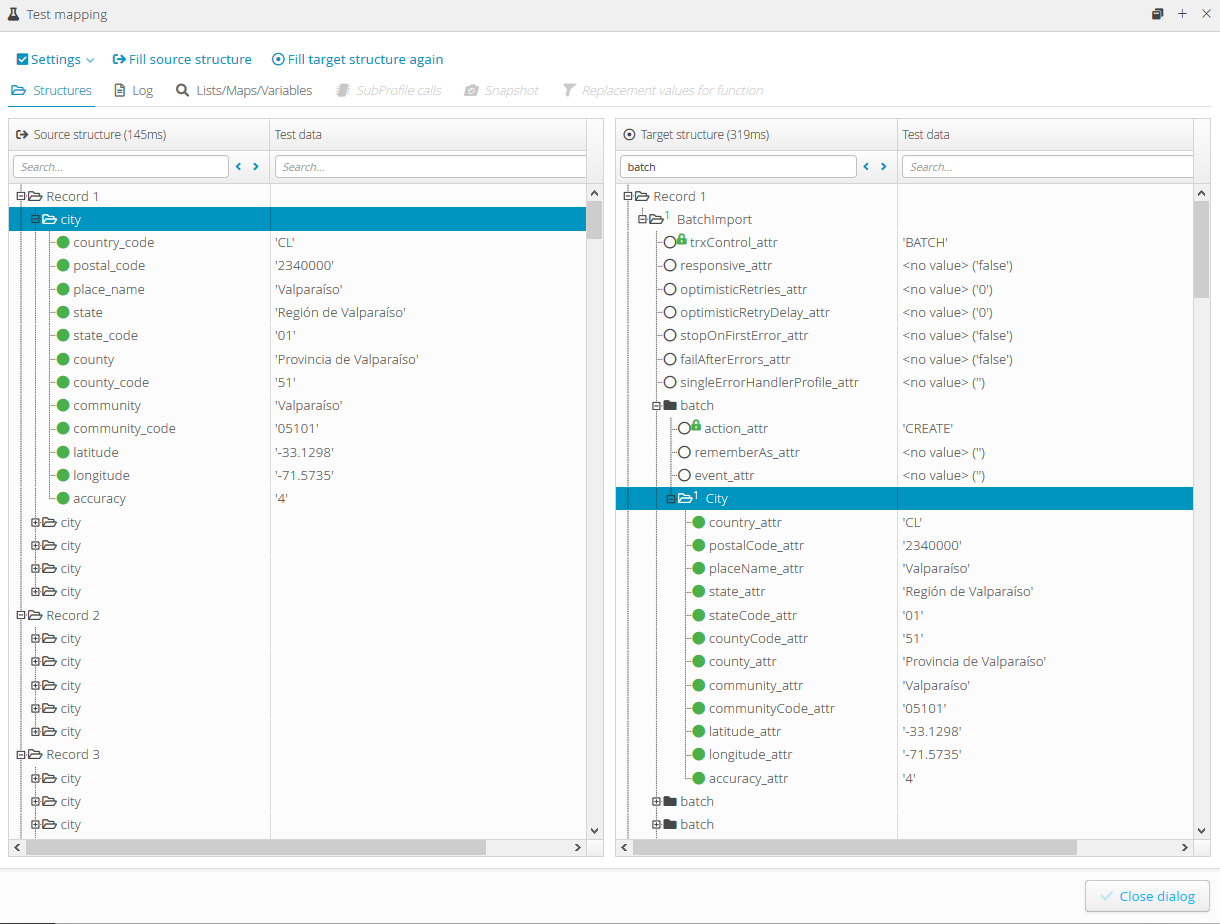

To illustrate the effect of the tokenFileSplitter preparser used here as a special feature, the rows value was temporarily set to 5 and a mapping test with a smaller data set (only 'places' in Chile) was executed:

• The Source structure (left) shows that records are created with a maximum of 5 City nodes each.

• The first City node in the source structure corresponds to the first batch node in the Target structure (right) expanded and shows identical data.

The batch import job for the first record (Record 1 in the target structure during the mapping test) would be structured as follows:
