'Addresses' & 'Addresses (edit only)' form element

The 'Addresses' and 'Addresses (edit only)' form elements are available in the data input forms for business objects:

In the Form editor, a list of address containers for each Company type is displayed in the form elements under the drop-down entry 'Addresses', or 'Addresses (edit only)', whereby exactly one container for each company type only can be used in a form, i.e. as soon as a container is dragged into the form, the corresponding entry in the list appears grayed out (see 'Principal address' in figure 1 below) and cannot be used a second time.

images/download/attachments/71336770/image2018-8-7_11_59_14-version-1-modificationdate-1616751841944-api-v2.png

Figure 1: Display of the 'Address' form element in the Form editor

images/download/attachments/71336770/image2018-8-7_11_59_23-version-1-modificationdate-1616751841947-api-v2.png

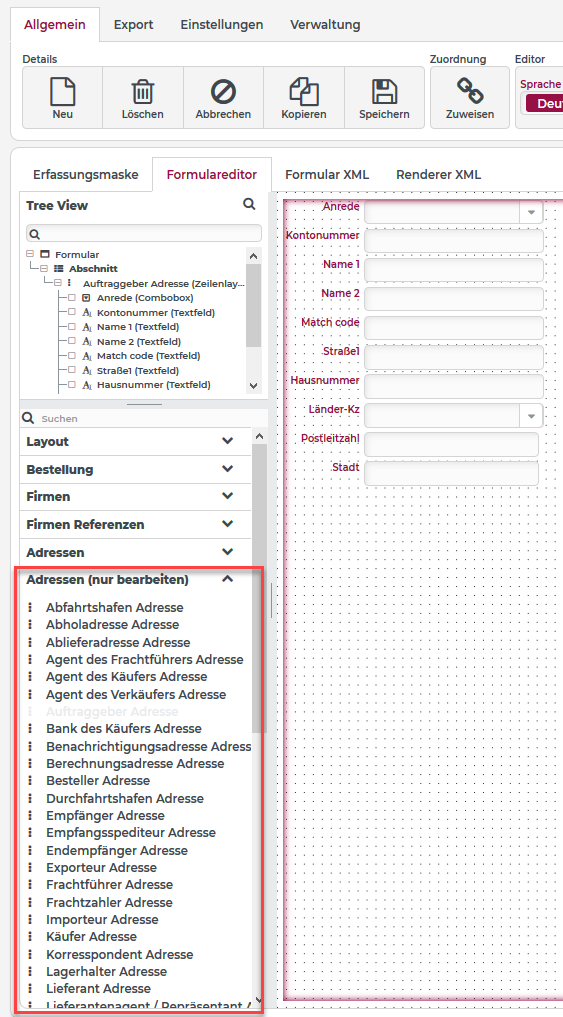

Figure 2: Display of the "Address (edit only)" form element in the Form editor

The main difference between these two related form elements is that the container under 'Addresses' is an expandable element with the two components 'Search results' and 'Row layout', while all containers under 'Addresses (edit only)' contain only – analogous to the 'Row layout' – the address attributes under 'Principal address'. This suggests that 'Addresses' should be used with the search field available there when working with Adressbüchern. Otherwise, the containers under 'Addresses (edit only)' are used.

'Address' form element

images/download/attachments/71336770/image2018-8-7_12_23_1-version-1-modificationdate-1616751841951-api-v2.png

Figure 3: 'Addresses' form element with the 2 components 'Search results' and 'Row layout'. The element is expandable. When collapsed, only the search field is displayed. With a click on the plus, both components display all information.

'Address (edit only)' form element

images/download/attachments/71336770/image2018-8-7_12_27_43-version-1-modificationdate-1616751841953-api-v2.png

Figure 4: 'Addresses (edit only)' form element with the single component in which the address attributes are listed
