Simple times


The absolute times start a job only once. They are therefore suitable for one-off actions, such as taking over the inventory of a warehouse.

The relative times start the job on the specified days of the week and are therefore suitable for recurring tasks.

images/download/attachments/164332802/546-version-1-modificationdate-1704700370638-api-v2.png

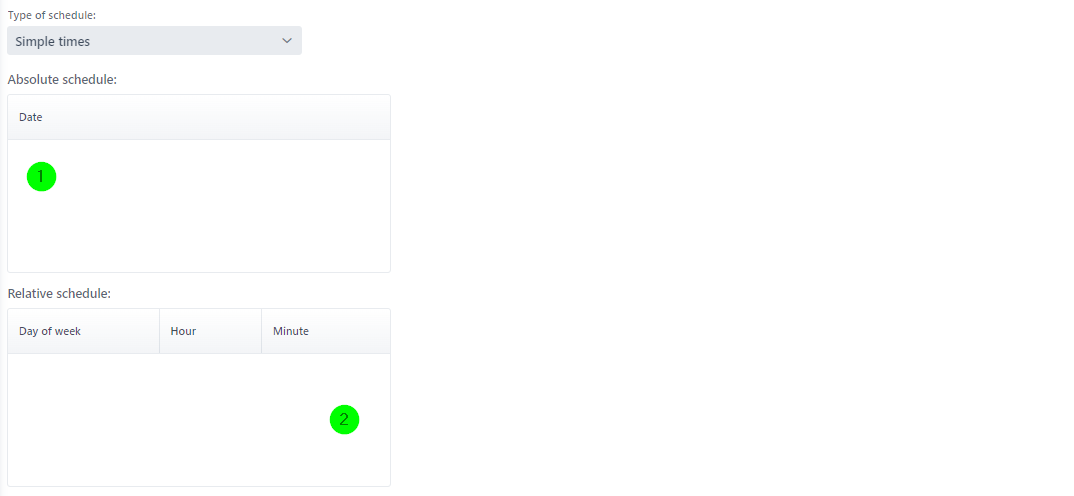

(1) Use the context menu to create absolute entries for "08.01.2018", "08:00, 08.01.2018", "08:30" and "08.01.2018, 11:30".

(2) Use the context menu to create relative entries for "Monday, 08:45" and "Monday, 10:45".

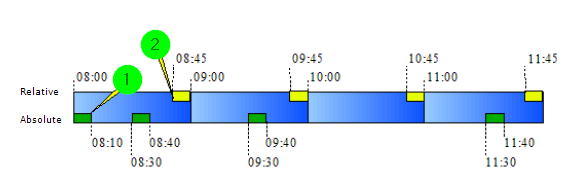

The following figure shows an excerpt of the chronological progression for Monday, 08.01.2018.


images/download/attachments/164332802/Zeitangaben_1_EN-version-2-modificationdate-1741920381757-api-v2.png


(1) A job is started by the absolute scheduling.

(2) A job is started by the relative scheduling.

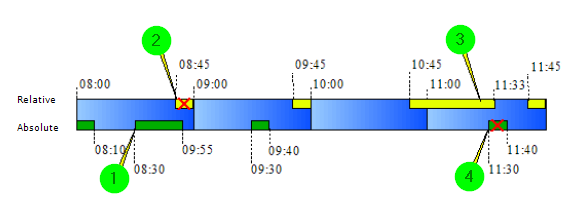

If a job is already running at a start time, the additional start will be skipped. This applies to relative and absolute scheduling. The following figure shows such a case.

images/download/attachments/164332802/Zeitangaben_2_EN-version-2-modificationdate-1741920394962-api-v2.png


(1) A job is started by the absolute scheduling.

(2) Since there is still a job running, no new job is started.

(3) A job is started by the relative scheduling.

(4) Since there is still a job running, no new job is started.
