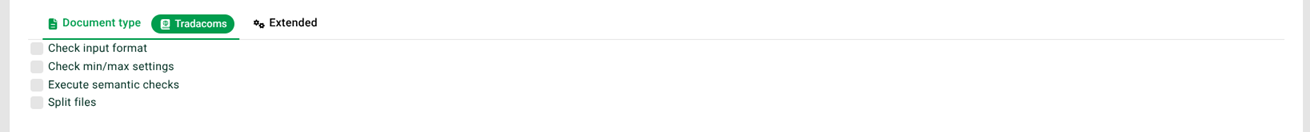

Settings

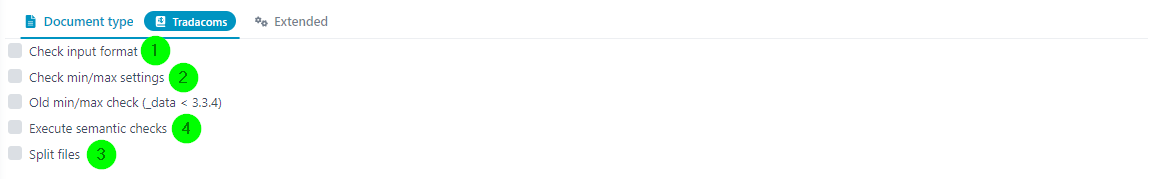

(1) Check input format: If this checkbox is set, the input fields are checked against their format templates during parsing. If a value violates the format template of the field or exceeds the field length, an error is created. If an error occurs, the profile job will not be aborted immediately in phase 2, but at the end of phase 2 or after 50 errors. Attention: The use of format checking puts a strain on performance and should only be used if absolutely necessary.

(2) Check min/max settings: Specifies whether to check the number of repetitions (of fields and nodes) in the source structure.

(3) Split files: See section below.

(4) Execute semantic checks: Incoming files can be checked with semantic rules. See section " Semantic check" .

Splitting of Tradacoms files

If a file contains multiple Tradacoms documents (STX-END), that file can be split into multiple files (3). But the documents have to be of the same Tradacoms type. Each one of those single documents will then start a job. If this checkbox is not set, then only one job will be created.

Structure import

You can automatically generate a source structure from a Tradacoms message (i.e. the data file, there is no schema file for the Tradacoms format). See subarea Import structure in area General Data (GUI). A corresponding target structure can be generated with a 1:1 mapping.

Example file
