Settings

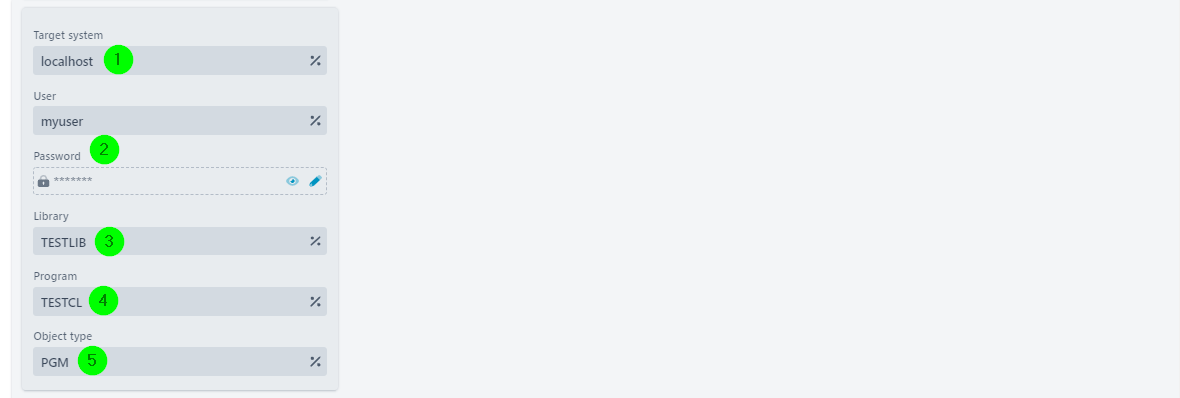

(1) Target system: DNS name or IP address of the remote computer.

(2) User/Password: User and password to authenticate on the remote computer.

(3) Library: Name of the program library.

(4) Program: Name of the called program.

(5) Object type: The object type should be "PGM".

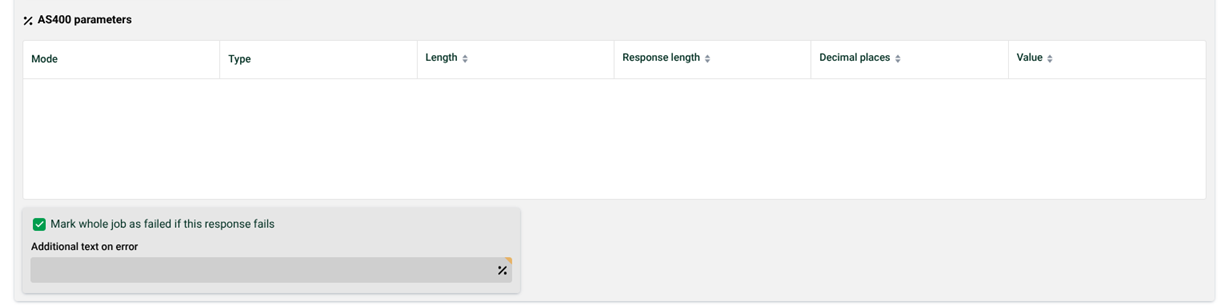

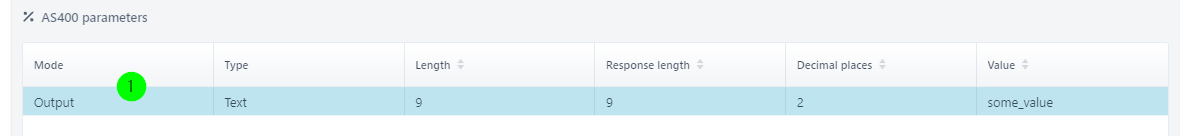

(6) AS400 parameters: A new entry can be created via the context menu. Possible modes are "Input", "Output" and "Input/Output". Note: The parameters are only defined for a correct call, no values of output parameters are returned to the Response. The following figure shows the settings for parameters.

(7) Mark whole job as failed if this response fails: Normally a job is not necessarily considered to be erroneous if a single Response fails (see section Status of Response - Error Behaviour). But it can be enforced with this option here.

(8) Additional text on error: Here you can specify an additional log text for the error case.
