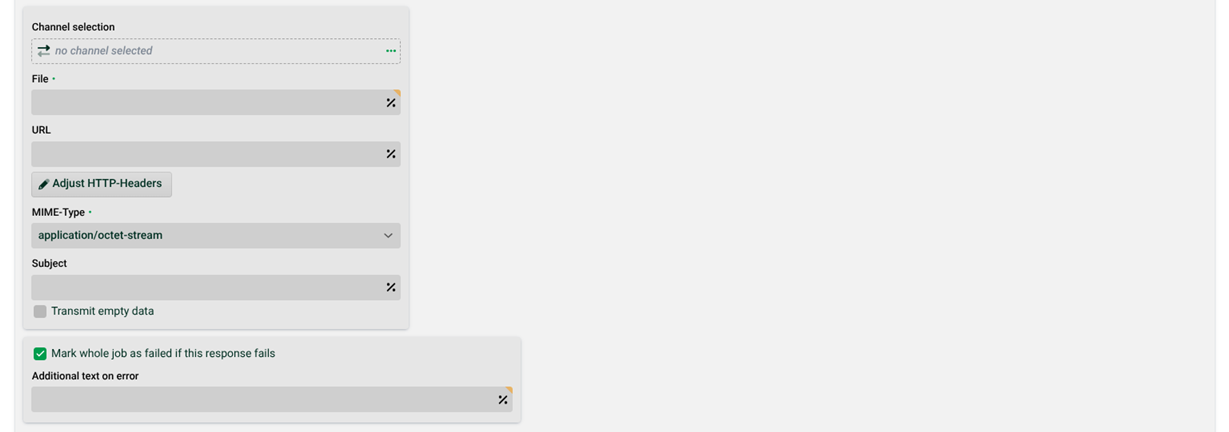

Settings

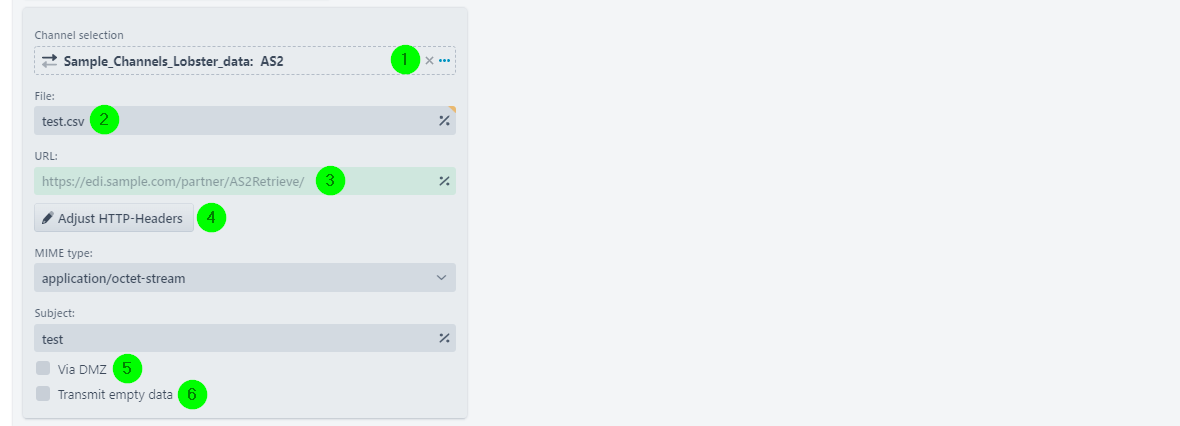

(1) Channel selection: Here you have to select a channel of type "AS2".

(2) File: Name of the output file.

(3) URL: In this field, the URL defined in the channel can be overwritten. If a value is entered here, changes to the URL that are made in the chosen communication channel (partner channel) do not affect this Response. The field is optional. The protocol can be http or https. If the server expects an HTTP authentication, user and password can be entered in the URL: http://<user>:<pass>@<server>.<domain>:<port>/<alias>.

(4) Adjust HTTP headers: When clicking this button, a dialogue for entering additional HTTP headers appears. Variables can be used for both the header name and the value. Syntax: @<variable name>@. When using Asynchronous Sending Module (ASM), the additional headers are passed in the metadata.

(5) Via DMZ: Specifies whether the sending is to be done by the Integration Server directly or via the DMZ server. If no DMZ is configured, this checkbox will not be displayed. The partner must be configured via a channel, otherwise, the checkbox will be deactivated when saving the Response.

(6) Transmit empty data: If this checkbox is set, empty files are transferred as well.

(7) Mark whole job as failed if this response fails: Normally a job is not necessarily considered to be erroneous if a single Response fails (see section Status of Response - Error Behaviour). But it can be enforced with this option here.

(8) Additional text on error: Here you can specify an additional log text for the error case.
