OFTP (Input Agent)

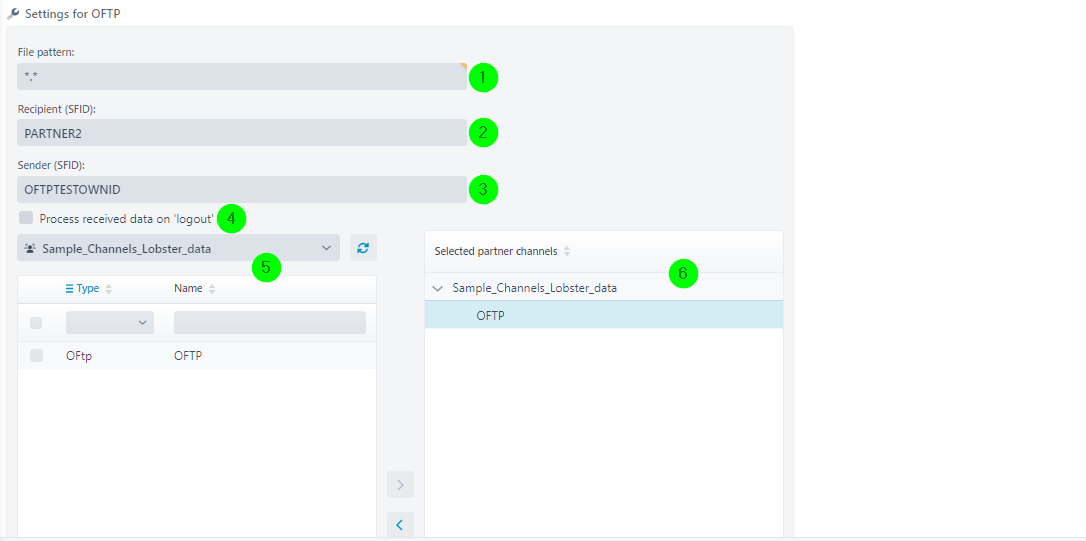

images/download/attachments/137312413/536-version-1-modificationdate-1691031854906-api-v2.png


(1) File name pattern that the file must match if it is to be considered.

(2) The profile is only started if the value here is equal to the destination Odette ID.

(3) The profile is only started if the value here is equal to the sender Odette ID.

Note: You can use a * at the end in (2) and (3), e.g. MyID*. So MyID123* would be accepted. The value *MyID (i.e. the * at the beginning) is not allowed.

(4) The processing of the data starts only after the logout of the respective user. Note: See also system variable VAR_SYS_LASTINBULK.

(5) This list contains all "OFTP" channels from the Partner Administration. Users of channels starting with AUTO_CREATE_ are filtered out.

(6) The list of OFTP channels to which the profile should respond. At least one must be selected.


Note: If several profiles are ready to accept a specific file, the profile scoring will decide.

System variables


Several system variables are available for OFTP:

  • VAR_SYS_OFTP_SFID

  • VAR_SYS_OFTP_ORIGINATOR

  • VAR_SYS_OFTP_FILE_COUNTER

  • VAR_SYS_MESSAGE_ID

  • VAR_SYS_LASTINBULK

  • VAR_SENDER.
