Search and find
You can open this dialogue via the upper menu bar in phase 3.

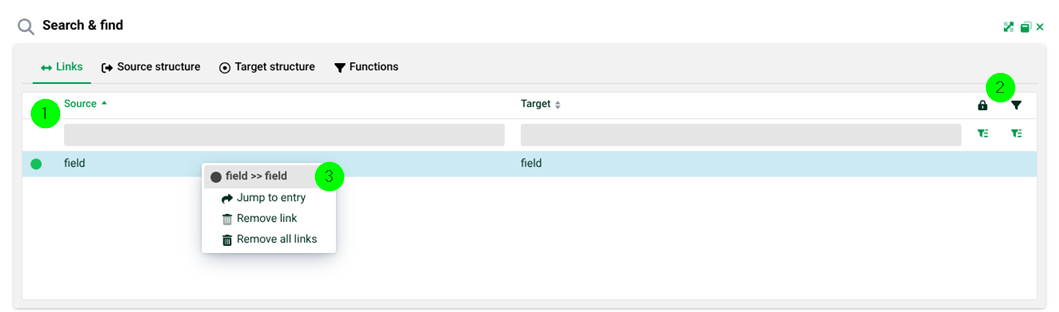

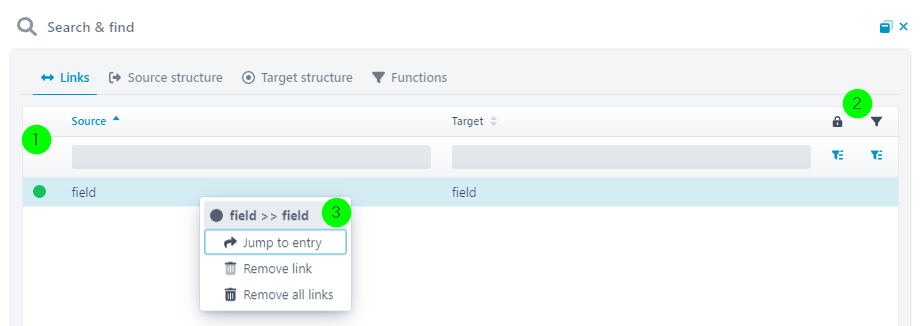

Mappings
This view allows you to easily search for mapped fields.
(1) Source: Here you will see all source structure fields mapped to target structure fields.
(2) Lock and funnel icon top right: Functions and fixed values on target structure fields.
(3) Context menu: Using the context menu, you can jump directly to the corresponding fields or delete the mapping.

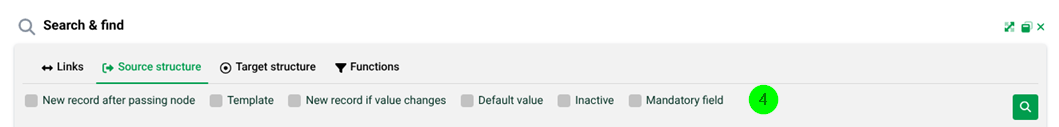

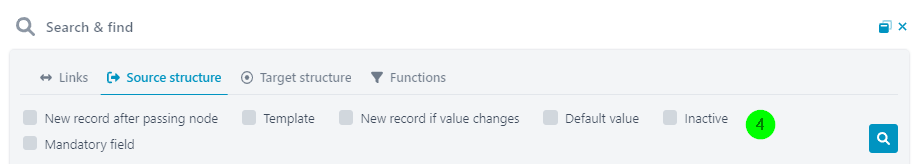

Source structure
(4) Here you can search for source structure fields/nodes with set attributes "Create new record", "Template", "New record if value changes", "Default value", "Inactive", Mandatory field ("Minimum" > 0) .

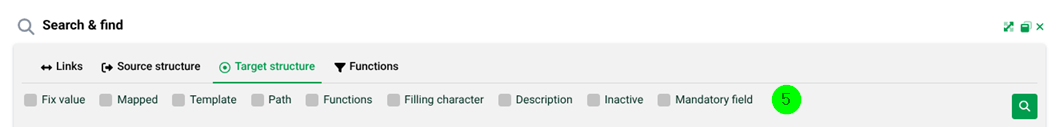

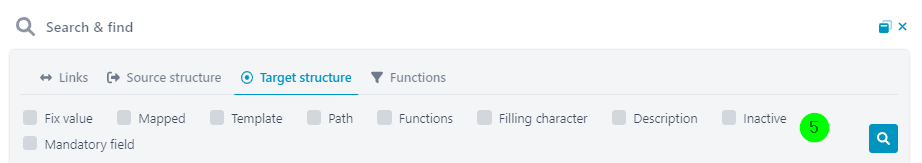

Target structure
(5) You can search for target structure fields/nodes with set attributes "Fix value", "Template", "Path", "Filling character", "Description", "Inactive" , " Mandatory field" and for mapped fields and fields with functions.

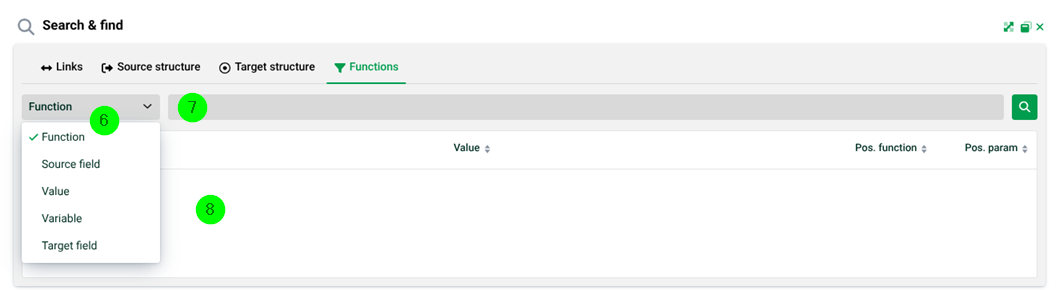

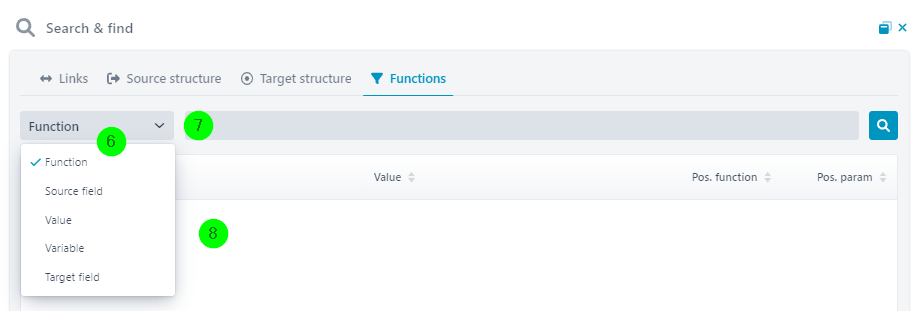

Functions
You can search in functions (on target fields). What is searched for and what you get as a result is described in the table below.
|
(6) |
(7) Search term |
(8) Result |
|
Function |
(Partial) name of the searched function. |
The field in the target structure that uses this function. |
|
Source field |
(Partial) name of the source field that is used as a parameter in a function. |
The field in the target structure that contains the function that uses the source field as a parameter. |
|
Value |
(Partial) value that is used in a function. |
The field in the target structure that contains the function that uses the value as a parameter. |
|
Variable |
(Partial) name of the variable that is used as a parameter in a function. |
The field in the target structure that contains the function that uses the variable as a parameter. |
|
Target field |
(Partial) name of the target field that is used as a parameter in a function. |
The field in the target structure that contains the function that uses the target field as a parameter. |
