Settings

(1) Test setting: See section Testing a file (rule).

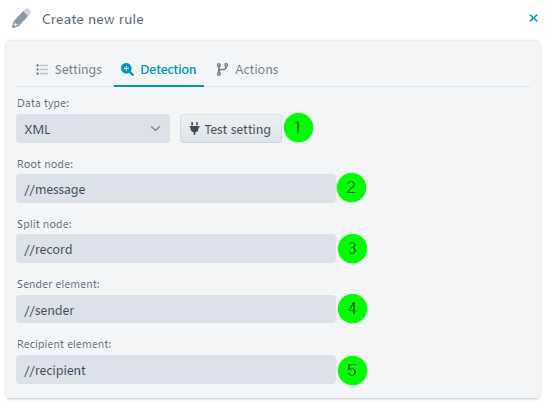

(2) Root node: The root element from which on the XML file is parsed. Important note: The XML element must be specified in XPath notation. Simply always use the notation shown in the screenshot. This also applies to (3), (4) and (5). Example: "//message".

(3) Split node: If this element occurs multiple times, the XML file is split each time this element occurs. Example : "//record".

(4) Sender element: Here you must specify any element of the XML file whose value is parsed as sending partner. Example : "//sender".

(5) Recipient element: Here you must specify any element of the XML file whose value is parsed as receiving partner. Example : "//recipient".

Example file

Split

See (3).

Important note: Please note that the recipient is read from the file only once (i.e. the first value that is found). Both splits are then sent to this one recipient!
