Execution
The execution of the transmission of the collected files is triggered by a cron job.
The transmission can also be triggered with custom class (phase 6) "ASMResponse" and with Workflows .

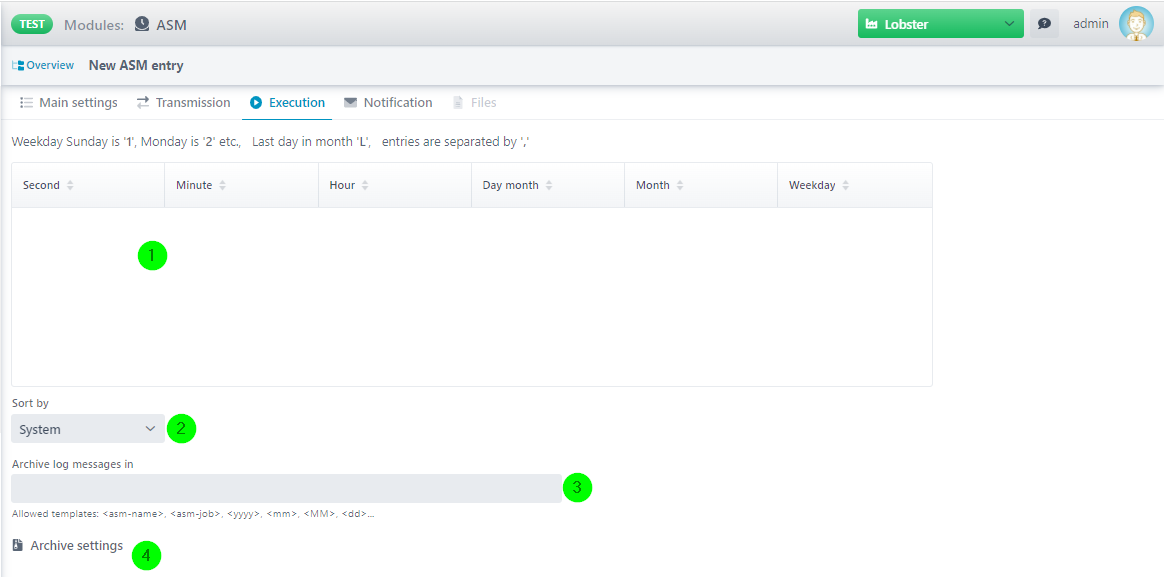

Settings
(1) List on top: Just as for time-driven Input Agents, cron jobs can be defined here (→ context menu).
(2) Sort by: The files to be transferred can be sorted in ascending or descending order by the system, file name (last modified), timestamp or metadata (timestamp of their generation - including milliseconds). If there is no metafile for a file, the timestamp (last modified) of the file is used.
(3) Archive log messages in: Log messages of a transmission can be saved as a file, whose name can be specified here. Some of the allowed placeholders are listed above the input field.
(4) Archive settings: The collected files can be packed into an archive before transmission. You can specify a (AES) password for ZIP and 7z, however, with 7z an AES password is always changed back to a normal password after saving. The archive name must contain a consecutive number, otherwise, a unique name would not be guaranteed and the archive might be overwritten. The current number range value of the ASM entry can be used for this purpose with the placeholder <n>. See section "Main settings (ASM)". If archive name is "lobster/unzip", the payload is viewed as a zip file. The file is unpacked and all files are transferred. Each file is created with the name it has in the archive. Note: If you archive, there will be a single transmission of all the archived files. If you do not archive, each file is transmitted individually.
