Transmission Type HTTP

See also section Transmission (→ metadata).

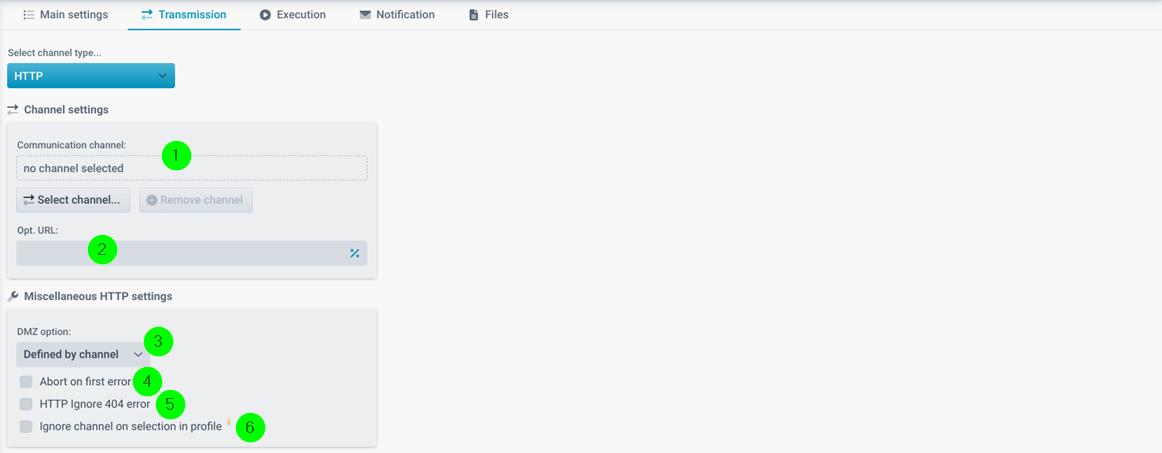

(1) An HTTP channel must be selected here.

(2) If a URL is specified here, it will be used instead of the one stored in the channel.

(3) Here you can set whether to transmit via DMZ or not, or whether to use the corresponding setting from the channel.

(4) The transmission is aborted as soon as an error occurs (The cron job aborts and again tries to transfer the file at the next run). This can be helpful if, for example, to ensure an uninterrupted sequence of several files.

(5) The transfer is continued, even if error 404 has been returned.

(6) The partner channel selected here is not used, but instead the one of the calling Response Route.

Note: All settings of a calling HTTP Response Route (metadata) are used. Exception: If checkbox Multipart/Form data is set in the HTTP Response Route, ASM is not possible. A subsequent profile or an error profile can only be specified with a persistent message.
