Transmission Type Fax

See also section Transmission (→ metadata).

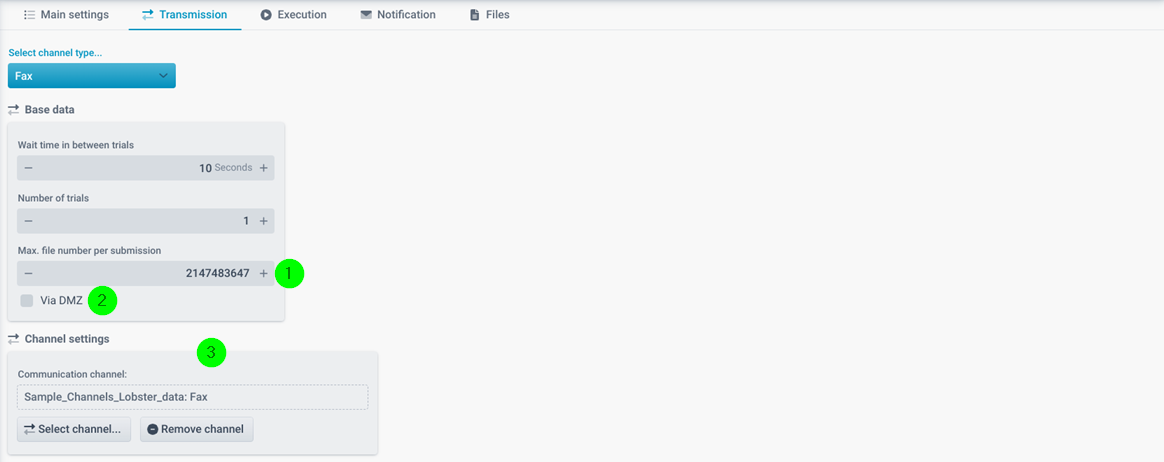

(1) The maximum number of files that can be sent per message can be specified here. This can lead to several messages being created within a triggered transmission. You will find corresponding messages in the ASM log ("... message 1", "... message 2", ...). However, all files collected up to that point are always processed for each triggered transmission.

(2) A transmission can also be processed via a DMZ server (if installed), i.e. the DMZ server establishes the connection to the target system.

(3) Here you have to select a channel of type Fax.

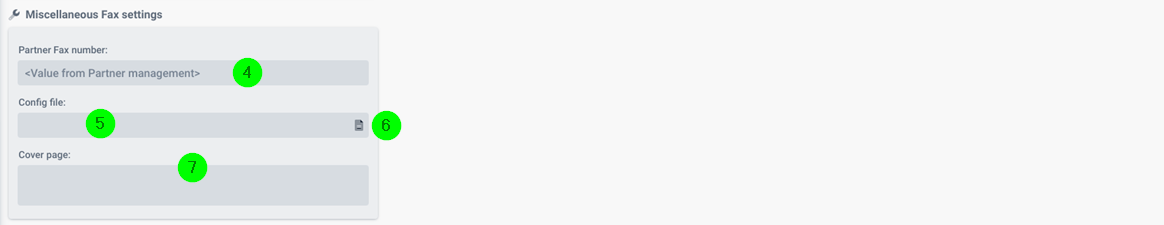

(4) Value comes from the channel, but can be overwritten here.

(5) The fax generation is configured by format parameters. Here the path to a properties file is expected in which these parameters can be found. If no explicit value is specified for properties (parameters), then the following default values are used. Via (6) you can search/create/change a file in the folder ./conf.

(7) You can specify a text for a fax cover sheet.
