Settings

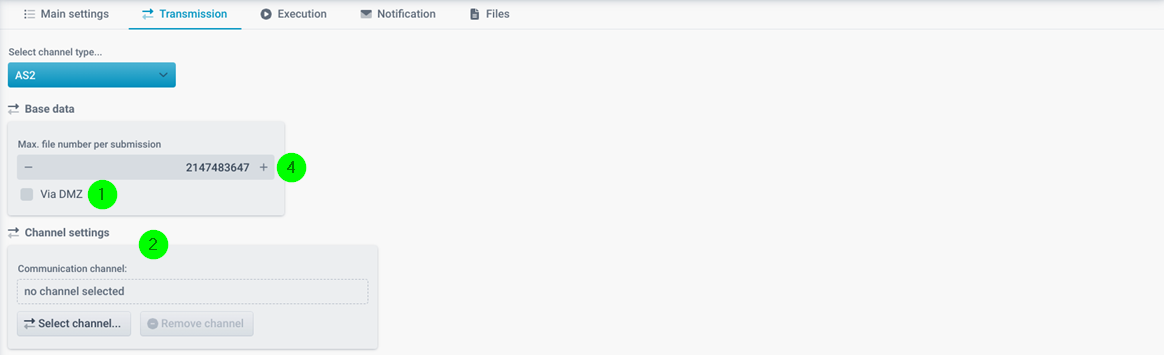

(1) Via DMZ: A transmission can also be processed via a DMZ server (if installed), i.e. the DMZ server establishes the connection to the target system.

(2) Channel settings: An AS2 channel must be selected here.

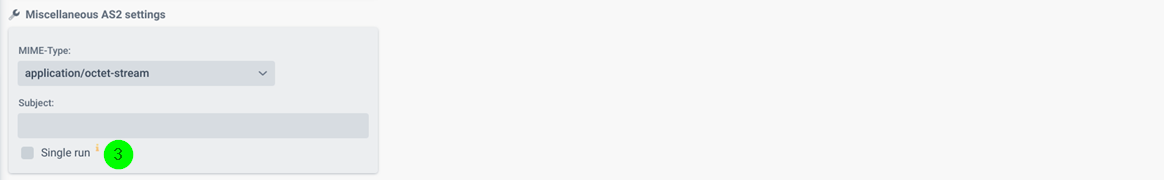

(3) Single run: If the checkbox is not set, only ASM entries using the identical partner channel that the profile uses in the Response "AS2" can be selected there. If the checkbox is set, then all ASM entries that have a channel of the same type can be selected (i.e. all ASM entries with an AS2 channel). Since n emails, with one attachment each, are sent in an ASM session with individual processing, the channel can, therefore, change during the session (and thus sender, subject and recipient). Without individual processing, an email can have multiple attachments.

(4) Max. file number per submission: The maximum number of files that can be sent per message can be specified here. This can lead to several messages being created within a triggered transmission. You will find corresponding messages in the ASM log ("... message 1", "... message 2", ...). However, all files collected up to that point are always processed for each triggered transmission.
