Kafka Connections
This page shows all existing Kafka connections. Via the context menu, you can edit and delete these or create new ones. Lobster_data always acts as a Kafka client and not as a server and currently only uses the Kafka message function (no streaming).

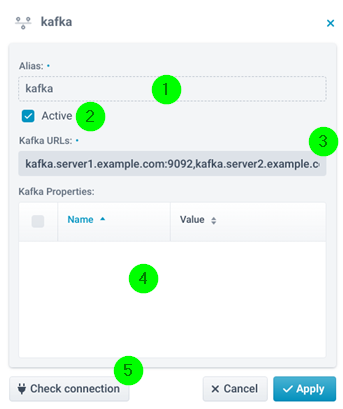

Creating a Connection
(1) You can use this alias (as name of the connection) in the Input Agent Kafka and Response Route Kafka.
(2) Messages can only be received and sent via active connections.
(3) Usually, several hosts are defined here (separated with commas or semicolons), since Kafka is usually operated in a cluster.
(4) Additional connection properties can be defined via the context menu. Important note: Please do not set the property group.id here. If necessary, you can do this in the Input Agent Kafka.
(5) You can test the connection here. The currently set (and possibly not yet saved) values are used. To apply these values, they must be saved.
OAuth2
Kafka supports OAuth2 utilizing a third party authorization server (e.g. Keycloak). A client callback handler to fetch the access token has to be specified and configured. The following callback handler supports Client Credentials only. It takes up to four arguments.
|
oauth.token.endpoint.uri |
Specifies the token endpoint. |
|
oauth.client.id |
Client-id/username/principal. |
|
oauth.client.secret |
The password/secret. |
|
oauth.fetch.token.via.dmz |
(optional) true if the HTTPS request to fetch the token shall utilize the DMZ server. Default: false. |
All the above are part of the sasl.jaas.property in the Kafka alias settings (see example below). The login module for this process is always org.apache.kafka.common.security.oauthbearer.OAuthBearerLoginModule and the flag is always 'required'. Parameters for the above callback handler follow the 'required' keyword in key="value" pairs (the "" are mandatory).
The callback handler has to be made known to Kafka via the property sasl.login.callback.handler.class, the full class name of the callback handler is com.ebd.hub.datawizard.kafka.oauth.OAuth2ClientAuthCallbackHandler. The properties sasl.mechanism with value OAUTHBEARER and security.protocol with value SASL_SSL are also mandatory.
Example Kafka properties configuration
|
sasl.jaas.config = org.apache.kafka.common.security.oauthbearer.OAuthBearerLoginModule required oauth.token.endpoint.uri="https://example.com:8443/oauth/token" oauth.client.id="testuser" oauth.client.secret="myprecioussecret" oauth.fetch.token.via.dmz="false"; sasl.login.callback.handler.class = com.ebd.hub.datawizard.kafka.oauth.OAuth2ClientAuthCallbackHandler sasl.mechanism = OAUTHBEARER security.protocol = SASL_SSL |
