Dependencies Between Response Routes

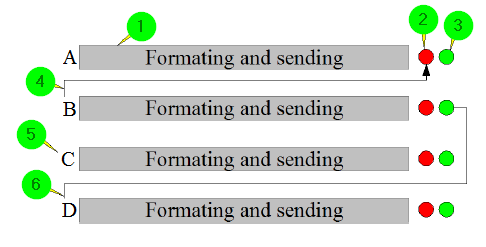

Response Routes can be dependent on one another as shown in the following figure.
(1) A Response Route, with format and transmission method. There may be any number of these Response Routes in a profile.
(2) State of the Response Route. In this case, Error.
(3) State of the Response Route. In this case, Success.
(4) A dependency of a Response Route from the status of a previous Response Route. In this case, the dependency on error. Thus, Response Route B is executed only if Response Route A has the status Error.
(5) Response Route without dependency on previous Response Routes.
(6) A dependency of a Response Route from the status of a previous Response Route. In this case, the dependency on success. Thus, Response Route D is executed only if Response Route B has the status Success.
Example
Response Route D depends on Response Route B. Response Route B is not executed due to its own (unfulfilled) dependencies. In this case, Response Route B gets status Skipped. As a result, Response Route D is not executed and also gets status Skipped because it depends on Response Route B. Generally, Response Routes dependent on skipped Response Routes are not executed.
GUI
The configuration of this phase is described in section Phase 6 (GUI). See especially section Dependencies.
