Iterating through all nodes

In all previous examples, the default value "Iterating through all nodes" was used, where the mapper alternately searches the parallel nodes for similar subnodes. The following figure shows the effects of the processing order "Iterating through all nodes" on a target tree.

(1) The attribute "Iteration" of node "OrderPosition" (target structure) has the value "Iterating through all nodes".

(2) First, all subnodes "Position" are searched for and placed in the target tree.

(3) Then, all subnodes "PositionText" are searched for and placed in the target tree.

(4) After processing node (1), the next identically named node is determined. There, all subnodes "Position" are searched and placed in the target tree.

(5) All subnodes "PositionText" are searched for and placed in the target tree.

(6) The final target tree resulting from the described settings.

The found subnodes are assigned to the respective top node. The processing of the subnodes found is not affected by the setting of the top node.

All elements per node

If the value "All elements per node" is set, the mapper will change its search. First, all elements of the subnodes of a node are searched for before going to the next node. The following figure shows the effects of the processing order "All elements per node" on a target tree.

(1) The attribute Iteration of node "OrderPosition" (target structure) has the value "All elements per node".

(2) First, all subnodes "Position" are searched for and placed in the target tree. In contrast to the previous example, the sibling nodes are also searched. Two elements are found.

(3) Then, all subnodes "PositionText" are searched for and placed in the target tree. In contrast to the previous example, the sibling nodes are also searched. Four elements are found. Then the search is repeated in the next node "OrderPosition" and already found elements are no longer considered.

(4) The result is a target tree with a node "OrderPosition", in which all the subnodes from the source tree are collected.

Loop

There is another value for node attribute "Iteration: Loop". This setting only has an effect below a node with value "All elements per node" for node attribute "Iteration". The subnodes with value "Loop" are not searched in adjacent nodes. Therefore, when entering the neighbouring nodes, the mapper finds the elements for the first time and assigns them to the neighbouring node. The following figure shows the effects of the processing order "Loop" on a target tree.

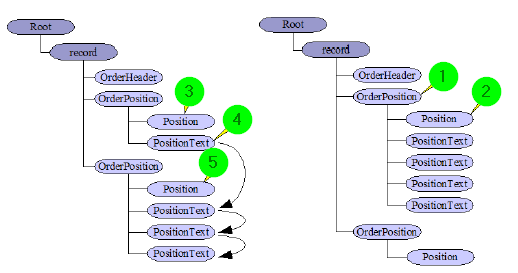

(1) The attribute "Iteration" of node "OrderPosition" (target structure) has the value "All elements per node".

(2) The attribute "Iteration" of node "Position" (target structure) has the value "Loop".

(3) First, the subnode "Position" is found below "OrderPosition". The subnode has the value "Loop", therefore the positions in the parallel nodes "OrderPosition" are not searched. The node "Position" is placed in the target tree.

(4) Then, all subnodes "PositionText" are searched for and placed in the target tree. Since node attribute "Iteration" has the value "All elements per node", the sibling nodes are also searched. Four elements are found. Then the search is repeated in the next node "OrderPosition" and already found elements are no longer considered.

(5) After processing the first node "OrderPosition", the second node is processed analogously. First, the subnode "Position" is found. The subnode has not been found before, so "Position" is placed in the target tree.
