When Lobster Integration acts as HTTP server, authentication of the client via OAuth2 is possible. Can be turned off in configuration file ./etc/startup.xml with entry <Set name="enableOAuth">false</Set>.

The access token is valid for 30 days. Can be changed with system property hub.datawizard.oauth.expiresIn=<number_of_seconds>.

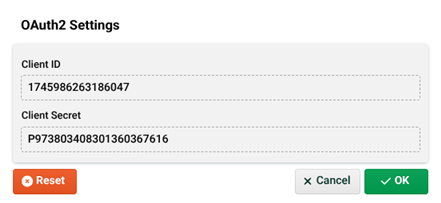

Settings

(1) Client ID.

(2) Client secret.

Grant type

Description

client_credentials

Here the client only needs the Client ID (1) and Client Secret (2).

The Client ID is the channel ID. The client secret is based on the partner password, so the partner password has to be set. If it changes, the Client Secret changes as well. Note: Instead of the Client Secret, the partner password can also directly be used for this grant type by the client.

authorization_code

The web page via which the credentials must be entered on the client side is located under ./webapps/root/oauth2/OAuth2.html. The credentials are partner ID and partner password.

Token endpoint: <IP/URL of Integration Server>/dw/register/oauth/token

Authorization endpoint: <IP/URL of Integration Server>/dw/register/oauth/authorize

Code verify: <IP/URL of Integration Server>/dw/register/oauth/verify (only needed for authorization code flows with code challenge)

Note: If a DMZ server is used, then the setup shown here remains identical on the inner Integration Server, but the URLs involved must be entered in configuration file ./etc/forward.properties on the DMZ server.

/dw/register/oauth/token=<URL of inner Integration Server>/dw/register/oauth/token
/dw/register/oauth/authorize=<URL of inner Integration Server>/dw/register/oauth/authorize

View after successful token query

(3) Access token: See following section.

(4) Expires in: See following section.

(5) Refresh token: See following section.

(6) Reset: See following section.

If a token has been requested, you see this extended view with the currently valid access token (3), the expiration time (4) and the refresh token (5).

Via (6) you can delete these entries again and restore the original state.
