Settings

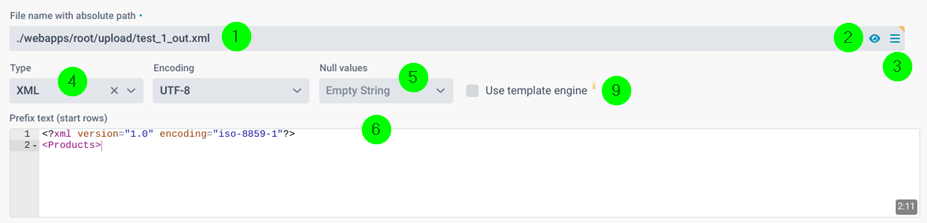

(1) File name with absolute path: The path and name of the destination file to be created. Paths below the installation directory of the Integration Server can be specified relatively with "./". Note: Variables, see (3), and placeholders, see tooltip, can be used.

(2) Icon right of (1): Displays the destination file.

(3) Icon right of (2): Selection of ETL/ELT variables.

(4) Type: Select XML or JSON.

(5) Null values: The replacement value for destination fields without value.

(6) Prefix text: The prefix text is generated once per task. Example:

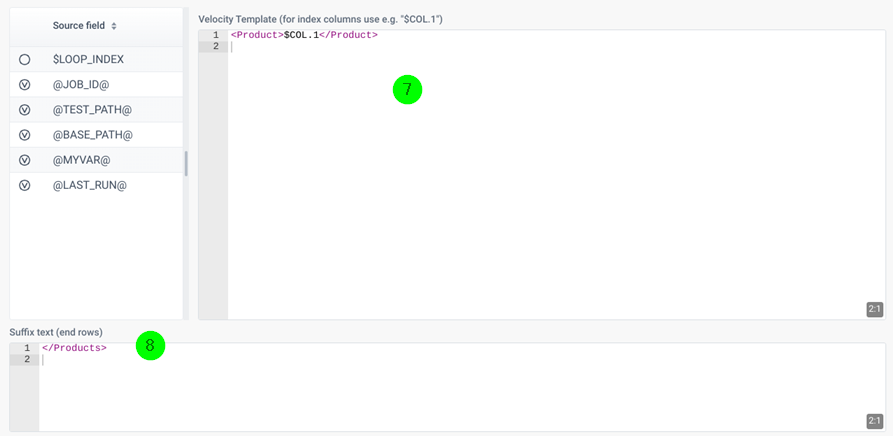

(7) Velocity template: This area is generated per row. ETL/ELT fields and ETL/ELT variables can be used. Velocity syntax is allowed. Note : Each time (6), (7) and (8) are executed, an empty line is placed in front of the generated text in the destination file. Example:

(8) Suffix text: The suffix text is generated once per task. Note : You cannot use custom ETL/ELT fields from this task (in which the template destination data is defined). However, it is possible to use custom ETL/ELT fields from higher-level tasks or ETL/ELT variables. Example:

(9) Use template engine: If you are not using any Velocity engine functions, you can deactivate this option (faster processing).
