Example profiles (dynamic forms)
Here are the example profiles. After importing the profiles, do not forget to set them active.
In addition, you must create your own Web Monitor user for form profiles (not for data profiles), if you don't already have one, and select it (or the role it has) in phase 1.
Example 1
You can enter any order number (will simply be returned by the data profile) and the data profile will return three randomly generated item numbers after pressing the "submit" button (see attribute "Path" of the target structure node "items" in the data profile). We only work with fixed values here to keep the examples simple. In a real application you would rather read the data from a database , see function select into map(a,b,list name c, delimiter d, map e,f,g,h,i), for example.
Profile-Data_profile_1.pak ( import first )

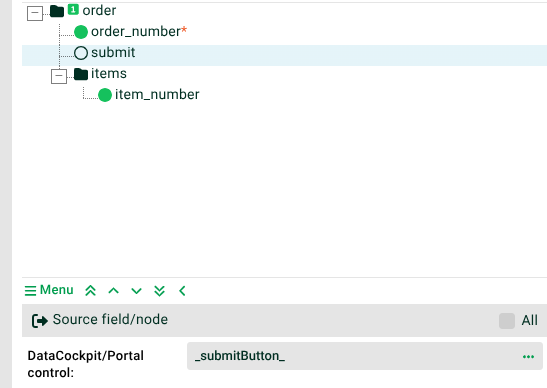

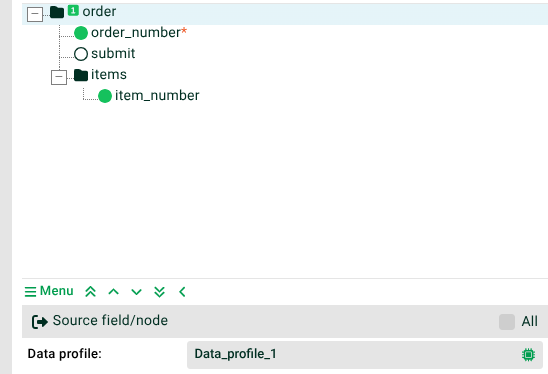

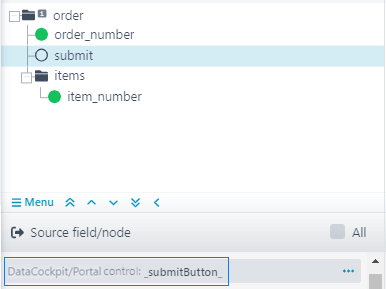

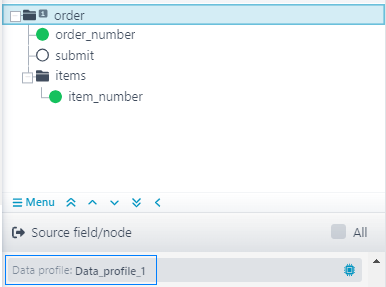

Look at node "order" and field "submit" in the source structure of the form profile.
Example 2
In the second example we remove the button in the form profile and start the data profile when the value of the order number changes. The data profile remains unchanged.
Profile-Data_profile_1.pak (as in example 1, import first )

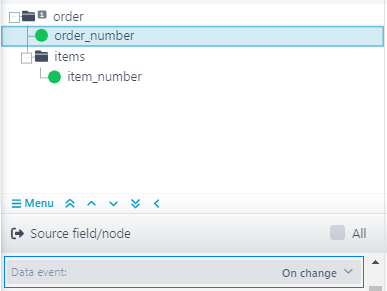

Look at the " order_number" field in the source structure of the form profile.
Example 3
Concerns Dynamic Selection Values, Possibility 1.
The attribute "Data event" is set to "Initial" in the form profile for source structure field "order_number".
Example 4
Concerns Dynamic Selection Values, Possibility 2.
The attribute "Data event" is set to "Initial" in the form profile for source structure field "order_number".
Look at attribute "Path" of the target structure node "order_number" in the data profile.
Example 5
Concerns the further notes on data evaluation (Evaluating Value Changes).
Profile-Nested_form_dynamic_submit_row_change_kind.pak (item numbers via button)
Profile-Data_profile_1.pak (import first)
Look at the input file of the data profile.
Look at field "row_change_kind" in the source structure of the form profile and its attribute "Portal control".
Example 6
Concerns the further notes on data evaluation (Passing on Values from Outside the Data Node).
Profile-Nested_form_dynamic_submit_keepInSession.pak (item numbers via button)
Profile-Data_profile_4.pak (import first)
Look at the input file of the data profile.
Look at field "other_field" in the source structure of the form profile and the data profile.
