Before describing the specific settings for X.400, we go back to the already described area for the access data, since there are a few special features for X.400. Note: The program UAFI is not supported.

Own ID

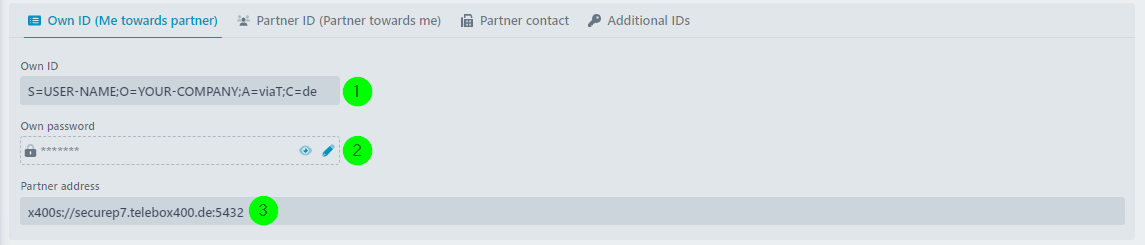

(1) Own ID: Your X.400 address, e.g. "S=USER-NAME;O=YOUR-COMPANY;A=viaT;C=de".

(2) Own password: Your password that you received from your X.400 provider.

(3) Partner address: In Germany, for the X.400 provider Telekom, the URL is "x400s://securep7.telebox400.de:5432". Ask your provider if necessary.

Partner ID

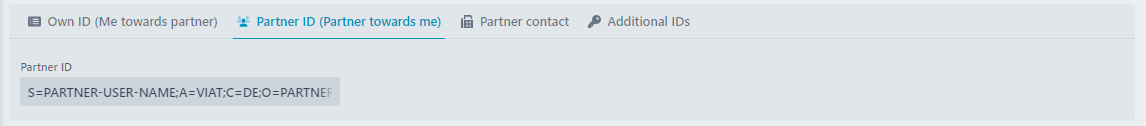

(4) Partner ID: For the partner access, the corresponding data of the partner system must be entered. Enter the X.400 address of your partner. Example: "S=PARTNER-USER-NAME;A=VIAT;C=DE;O=PARTNER-COMPANY".

The other settings for X.400 are settings which control the connection build-up over all OSI levels.

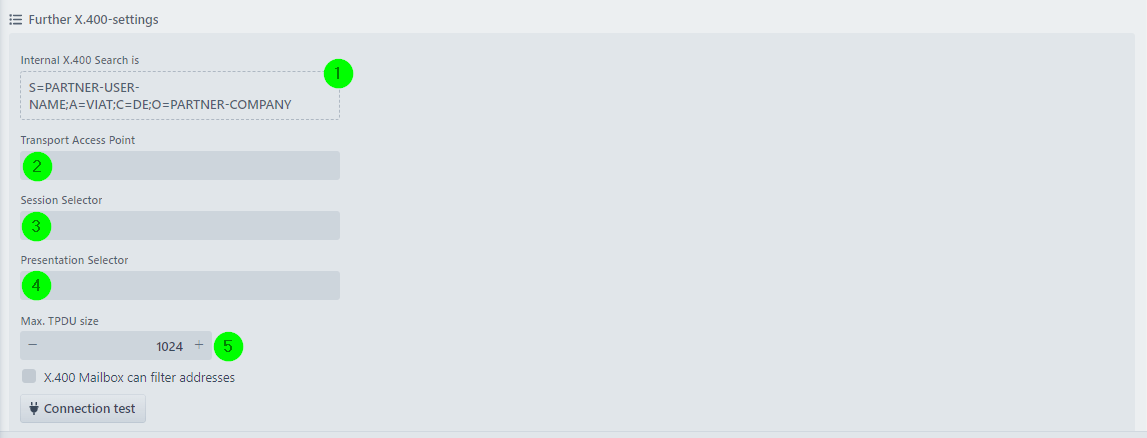

Further X.400 settings

(5) Internal X.400 search is: The internal X.400 search term. The internal search term is used to assign an incoming X.400 message to a channel. The search term is taken from the "Partner ID" in tab "Partner ID (Partner towards me)".

(6) Transport Access Point: The Access Point for the transport layer (OSI level 4).

(7) Session Selector: The Session Selector for the session layer (OSI level 5).

(8) Presentation Selector: The Presentation Selector for the presentation layer (OSI level 6).

(9) Max. TPDU size: The maximum size of the Transport Protocol Data Unit in kB.
