Settings

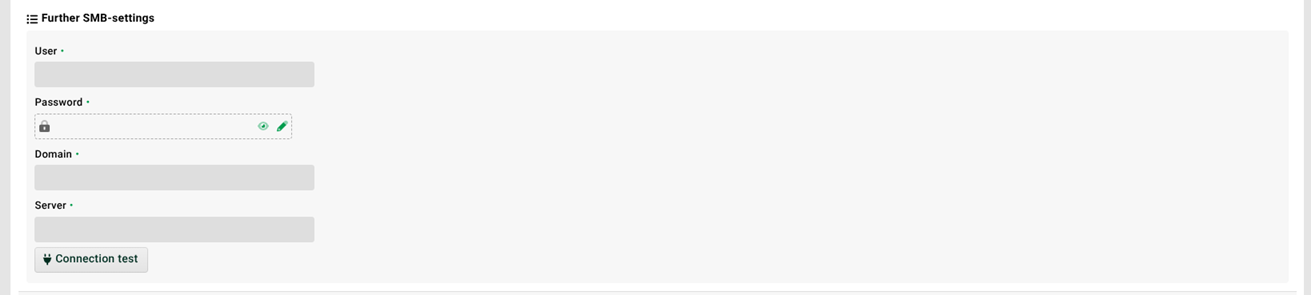

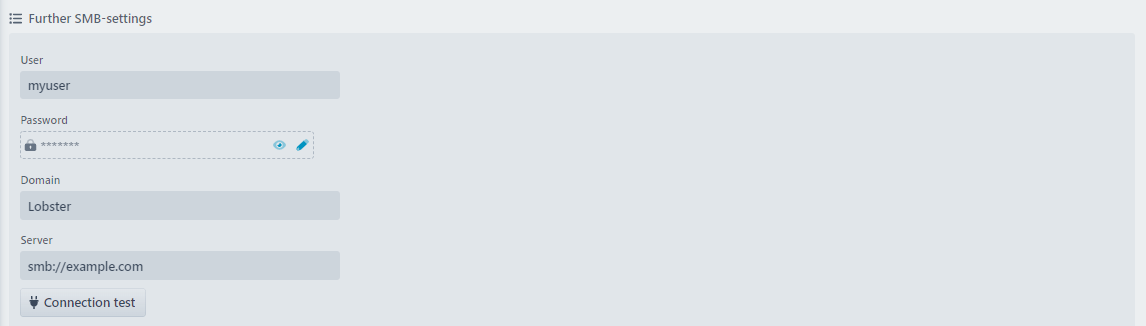

The SMB access data can be entered here.

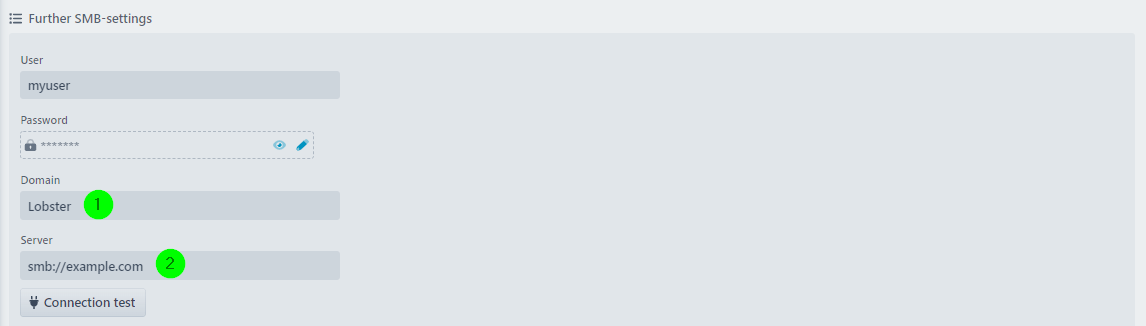

Important note: Please note that this is only for the login, especially in field Server (2). If you use SMB in an Input Agent or a Response, you must explicitly specify the complete UNC path to a file. See also section Access to External Shares.

Note: If a local user of the target server is used when logging in, a dot (.) must be entered in field Domain (1). A local user on an SMB server is a user account that exists on the server itself and is not managed by a centralised directory service such as Active Directory.

SMB Mount Manager

As an alternative to the SMB connection via Java (uses SMBv2), the SMB mount manager is available, which provides a higher performance and additionally supports SMBv3. Note: See also https://support.microsoft.com/en-en/help/2696547/how-to-detect-enable-and-disable-smbv1-smbv2-and-smbv3-in-windows-and.

The SMB Mount Manager mounts SMB shares as network drives (mount points) via the operating system.

Alternatively, it can also work with internal symlinks (see properties windows.useShareMount and baseMountPoint).

When the SMB Mount Manager is activated, all previous entries in "SMB" channels, "SMB" Input Agents, and "SMB" Responses can (and must) be retained. The only difference is that the connection of external drives is handled at operating system level.

Configuration

The following entry must be set in configuration file ./etc/startup.xml.

<!-- use internal smb mount manager, default is false -->
<Set name="enableMountManager">true</Set>

In addition, the file ./etc/admin/datawizard/smbmount.properties must be present and configured.

#File has to be in <_dataInstallDir>/etc/admin/datawizard
#
# Basic smb mount manager config file
#
#
# for windows system, define the available driver letters
windows.drives=GHIJKLMNOPQRSTUVWXY
#
#
# for windows system, use drive letters or shared folder
windows.useShareMount=true

# for not windows systems: define a base mount point where all shares are mounted underneith
# for windows systems with windows.useShareMount=true: define a folder where all symlinks to the shares are created
baseMountPoint=./mnt
#
#
# mount commands for each supported OS
#

# unix/linux
unix.mount=/bin/mount -t cifs -o user={USER},domain={DOMAIN},password={PASSWORD} //{SERVER}/{SHARE} {MOUNTPOINT}
unix.umount=/bin/umount {MOUNTPOINT}

# mac os x
mac.mount=/sbin/mount_smbfs //{DOMAIN};{USER}:{PASSWORD}@{SERVER}/{SHARE} {MOUNTPOINT}
mac.umount=/sbin/umount {MOUNTPOINT}

# windows
windows.mount=C:\\Windows\\system32\\net.exe use {MOUNTPOINT} \\\\{SERVER}\\{SHARE} /user:{DOMAIN}\\{USER} \"{PASSWORD}\"
# mount command for specific host
# <OS>.<hostname>=<mount command>, e.g.
# windows.example.com=somecommand
windows.umount=C:\\Windows\\system32\\net.exe use /DELETE {MOUNTPOINT}

# others /unknown
other.mount=please define a command here!
other.umount=please define an umount command here!

Important note: The placeholders in curly brackets are automatically populated by the entries in SMB channels, Input Agents "File" and Responses "Files". You do not have to replace any of the placeholders.

Property	Description
windows.drives=EFGHIJKLMNOPQRSTUVWXYZ	The available Windows drive letters. You may need to make an adjustment here if certain drive letters are already in use on your system.
windows.useShareMount	If false, 'normal' network drives are use. Falls true, the integration takes place via symlinks. This can circumvent the use of normal network drives and thus the limitation of the limited number of (drive) letters. Property baseMountPoint is used to specify the folder in which the symlinks are placed. Important note: By default, you have to set k ey EnableLUA to 0x0 in the Windows Registry (execute regedit in the Windows console). You will find the key under HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Policies\System. If this is not wanted for security reasons, you can also explicitly deactivate this check with the system property -Dsmb.deactivate.lua=true. In that case, nothing needs to be changed in the Windows registry. However, the user used for the Integration Server service must then have the right to create symlinks (if they do not have administrator rights).
baseMountPoint=./mnt	For UNIX and MacOS systems, the base mount point name can be specified. Default: ./mnt This property is also used for symlinks under Windows (see property windows.useShareMount).
windows.mount windows.umount	Mounting and unmounting SMB shares under Windows. Note: The entries in the configuration file can be used in exactly the same way.
unix.mount unix.umount	Mounting and unmounting SMB shares under Unix/Linux. Note: The entries in the configuration file can be used in exactly the same way.
mac.mount mac.umount	Mounting and unmounting SMB shares under Mac. Note: The entries in the configuration file can be used in exactly the same way.
<OS>.<hostname>	A mount command for a specific host can be specified (e.g. different timeout for certain hosts). See Windows example in Windows section in sample file above. Analogously for other operating systems with mac or unix for <OS>. Note: There is no host-specific unmount. The <hostname> is the one used in the UNC path //<hostname>/<directory name> in Input Agents or Responses.

Control Center

Active SMB connections can be found in the Control Center (→ "System" → "SMB connections").
