AS4 (channel)

The URL of the partner AS4 service must be entered as a partner address in an AS4 channel if outgoing data is allowed. The protocol can be HTTP or HTTPS because the AS4 protocol is transported within an HTTP envelope. Note: For encryption and signing in general, please refer to the section Certificates.

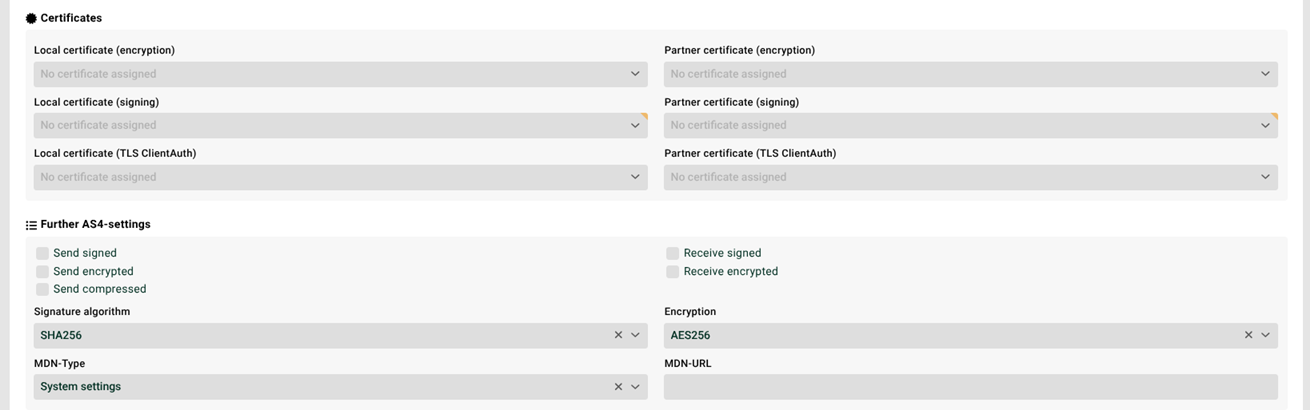

Settings

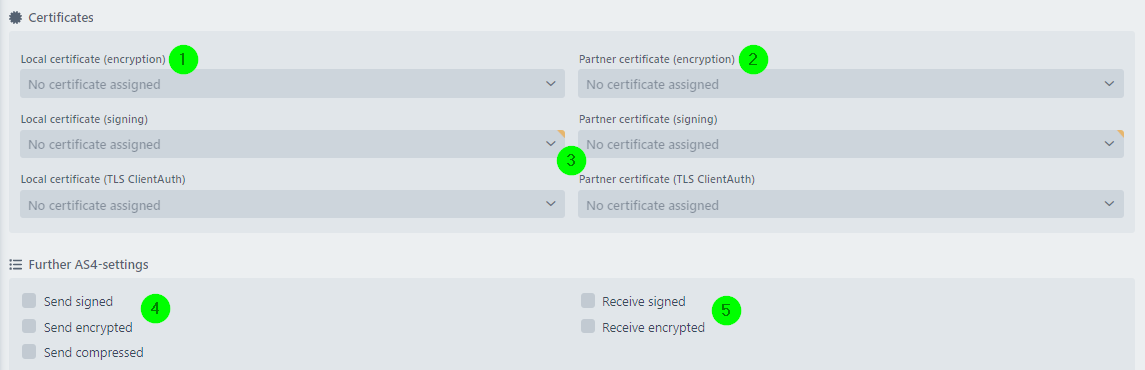

(1) Local certificate (encryption): A local certificate (with private key) can be assigned to the channel here. This certificate is used to decrypt the incoming data encrypted by the partner. If no local certificate has been assigned under (3), it also serves to sign outgoing data. Note: For AS4 over HTTPS, a client certificate may additionally be required for the outgoing HTTPS connection. The certificate in (1) is also used for this purpose. See also section Authentication by Client Certificate. The external server is allowed to use a self-signed certificate for HTTPS. The import of the server certificate as a partner certificate is not required.

(2) Partner certificate (encryption): A partner certificate, i.e. the public part of a certificate of your partner, can be assigned to the channel here. This certificate is used to encrypt the data to be sent. If no partner certificate has been assigned under (3), it also serves to check the signature of received data.

(3) Local certificate (signing), Partner certificate (signing): See (1) and (2).

(4) Send signed, Send encrypted: Specifies whether data sent to the partner system will be signed and/or encrypted. The data is signed with the signature algorithm set in (6) and encrypted using the encryption algorithm set in (7).

(5) Receive signed, Receive encrypted: If set, data that is not signed or encrypted is rejected. Attention: If the partner sends encrypted or signed data, a local certificate to decrypt the data or a partner certificate to check the signing must still be available, even if the option here in (5) is not set. Otherwise, the message would not be decryptable or the signature could not be checked. But the message will not be rejected.

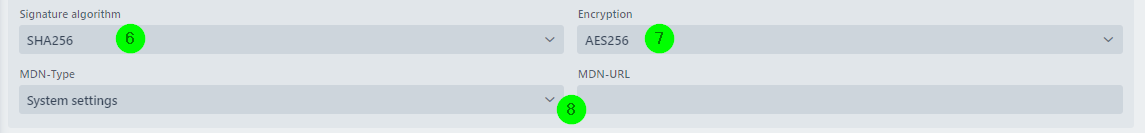

(6) Signature algorithm: Determines which algorithm is used to sign the sent data. The setting is only effective if the checkbox Send signed (4) is set.

(7) Encryption: Determines which algorithm is used to encrypt the sent data. The setting is only effective if the checkbox Send encrypted (4) is set.

(8) MDN type, MDN URL: Here, you can define how the channel sends the MDN to the communication partner. The following possibilities are available.

  • "System setting". The settings in configuration file ./etc/as4.xml are used.

  • "Synchronous". A synchronous transmission of the MDN is used.

  • "Asynchronous". An asynchronous transmission of the MDN is used. If no URL is defined in the configuration file ./etc/as4.xml, it must be specified in field MDN URL. An entry in the configuration file would look as follows.

    <Set name="defaultMDNAsynchronousURL">http://100.1.20.45:8080/partner/AS4Retrieve</Set>
