All currently logged in users are displayed here. Logging off a user requires administrator rights. A user cannot terminate his own session.

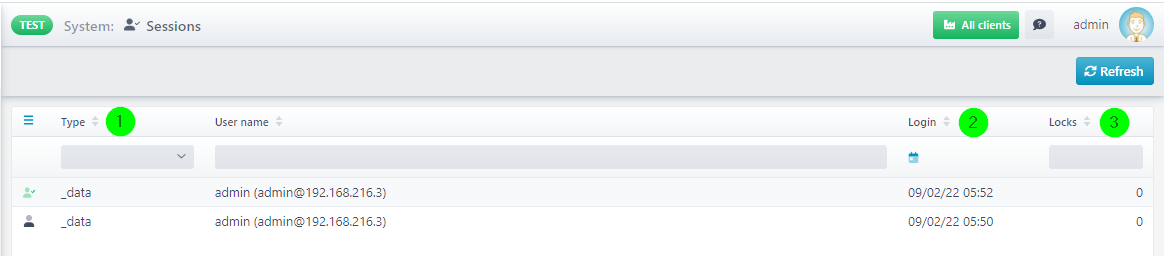

Sessions overview

(1) Type: The type of the session.

_data. All Lobster Integration users who are logged on to the Integration Server.
FTP. All FTP users currently logged on to the Integration Server. FTP sessions where you are logged on to other FTP servers are not displayed.
SSH. All current SSH sessions are shown.
TM. All logins of the "Transport Manager".

(2) Login: The time when the user logged on.

(3) Locks: The number of entries locked by this user.

Note: Active sessions are also displayed on the "Start" page in the "Sessions" tile.

Context menu of a session line

Terminate session	This allows you to terminate the selected session, provided that you have administrator rights and it is not your own session.
Show/edit locked entries	Display and edit the entries blocked by the user of the selected session. See the following section.

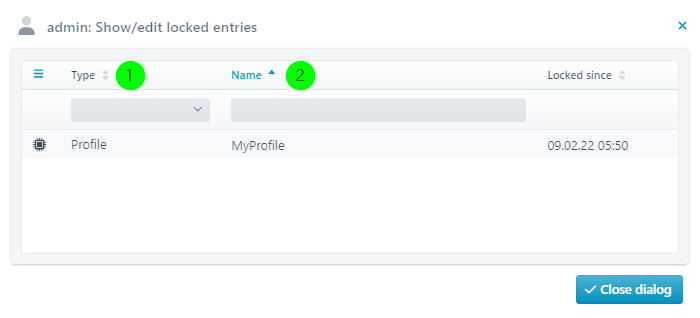

Locked entries

Locked entries can either be an open entry (e.g. a profile that is being edited), or a blocked profile, or an erroneous job that has been locked.

(4) Type: The type of the locked entry.

(5) Name: The name of the entry.

Context menu of a locked entry

Unlock	A locked entry will be unlocked.
Go to menu item	Jumps to/opens the entry.
Unlock all but errors and blocked profiles	All locked open entries are unlocked (e.g. an open profile that is edited), but not blocked profiles and not locked errors . Note: Locked open entries are automatically unlocked when you log in again with the same user.
Reload	Update the locked entry (a user might, in the meantime, have closed a profile or corrected or unlocked an error job).

Allowed number of sessions

The number of simultaneous sessions allowed depends on your license. Once the maximum number has been reached, no further logins are possible.

Session timeout

If an Internet connection is available, then a session will last endlessly with the browser tab open.

Otherwise, the session will end after a timeout.

The timeout is specified in configuration file ./etc/webdefault.xml in minutes.

...
<session-config>
	<session-timeout>30</session-timeout>
</session-config>
...

Note: In rare cases, this timeout mechanism may not work properly. This would lead to a collection of dead sessions and at some point the allowed number of sessions would be reached and users would no longer be able to log in. To prevent this, a secondary timeout mechanism can be used. To do this, use parameter timeoutIntervalHours (values are specified in hours) in configuration file ./etc/startup.xml. The secondary timeout should be set to a higher value than the primary timeout to avoid undermining the primary timeout. If the secondary timeout is exceeded and any user logs on to the system, the dead sessions are removed.

<?xml version="1.0" encoding="ISO-8859-1"?>
<!DOCTYPE Configure PUBLIC "-//EBD Integration//DTD Configure 1.0//EN" "http://www.ebd-integration.de/dtd/configure_1_1.dtd">

<Configure class="com.ebd.hub.services.startup.StartupService">

...

    <Call name="addApplication">
        <Arg>
            <New class="com.ebd.hub.datawizard.app.DataWizardSetup">
                <!-- if start of datawizard fails, stop the whole system -->
                <Set name="stopServer">true</Set>
                <Call name="setConfiguration">
                    <Arg>
                        <New class="com.ebd.hub.datawizard.app.DataWizard">

                        	<Set name="timeoutIntervalHours">2</Set>

...
