The expert search can be used in various places in the GUI ( profile overview , workflow overview , Content Inspection overview , ASM overview , ETL overview , Designer (Data Flow), ENGDAT overview ).

The search index of profiles, the search index of workflows, etc. is queried for this.

In the search, terms are used that refer to properties of the respective entries that are displayed (e.g. profiles in the profile overview or workflows in the workflow overview, etc.). For the respective keywords, see the section below.

Let's take a look at the first partial term in the screenshot above.

search(BASIC.ACTIVE, true, equals)

This searches for all profiles that are active, i.e. profiles that have the checkbox Activate profile (ACTIVE) set (true) in the Main settings (BASIC). Note: For Boolean values, no quotation marks ("") are necessary around the comparison value, but for string values they are (→ see "XXX" in the second partial term). For negation, a ! is used, e.g.

!search(BASIC.ACTIVE, true, equals)

Multiple partial terms can be connected with AND and OR to a larger term. In the case of connected terms, care must be taken to ensure logically correct bracketing of the partial terms. Example: (all profiles that have an AS2 Input Agent or Response)

search (RESPONSE.TYPE, "as2", contains) OR search (BASIC.PROFILETYPE, "as2", contains)

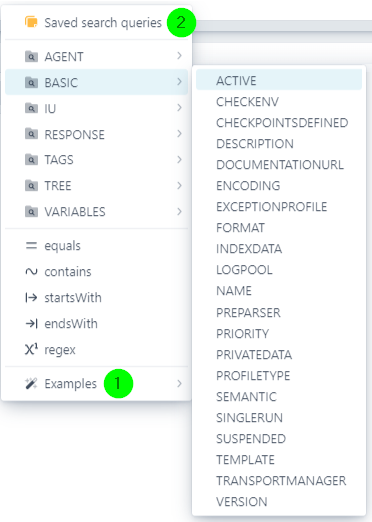

Context menu

All available keywords can be displayed via the context menu of the search field (see section below). For example, AGENT stands for the Input Agent, RESPONSE for Responses, and so on.

(1) Examples: Here you can find example queries. In the search field, an autocomplete function is also available as soon as you enter something.

(2) Saved search queries: Here you can save search queries or use saved ones and manage the saved queries in a further dialogue.

Keywords

Profiles

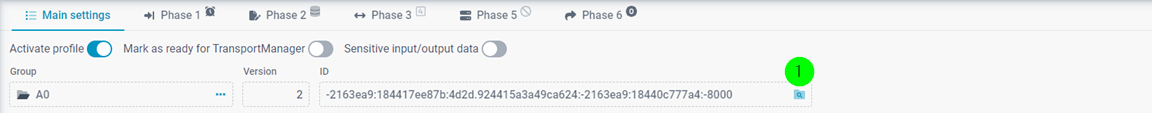

Note: The values of a specific profile can be found in the Main Settings via the folder icon on the right in field ID.

*AGENT*		Tab Phase 1.
	*AMQPALIAS*	Field Connection alias in Input Agent AMQP/JMS.
	*CHANNELID*	Channel ID of selected channel in Input Agent.
	*CHANNELIDS*	Channel ID of selected channel in Input Agent (if multiple channels selectable).
	*COCKPITROLES*	Selected DataCockpit role in Input Agent DataCockpit/Portal.
	*CONTEXT*	Field Message context in Input Agent Message.
	*CUSTOMCLASS*	Selected class in Input Agent Custom class.
	*CUSTOMCONFIG*	Field Config file in Input Agent Custom class.
	*DBALIAS*	Field DB alias in Input Agent DB.
	*DIRECTORY*	Field Directory in Input Agent File.
	*DQUEUE*	Field DataQueue in Input Agent DataQueue.
	*FACTORYNAME*	Field Start on IS only .
	*FILEEVENT*	Checkbox React to file events in Input Agent File.
	FILENAME	Input Agent File, field File pattern.
	*HOST*	Field Host in Input Agent DataQueue.
	IOTALIAS	Input Agent IOT, subscription model, field Connection alias.
	*KAFKAALIAS*	Field Connection alias in Input Agent Kafka.
	*MIMETYPE*	Field MIME type in Input Agents AS2, AS4, HTTP (event-driven), Mail (event-driven).
	*MQTTALIAS*	Field Connection alias in Input Agent MQTT.
	*QUEUE*	Field Message queue in Input Agent Message.
	*RECIPIENT*	Field Recipient address in Input Agent Mail (event-driven).
	*SAPALIAS*	Field SAP alias in Input Agent SAP ALE (event-driven).
	*SENDER*	Input Agent Mail, field Sender address.
	*SMS*	Field Phone number in Input Agent SMS .
	*SQL*	Field SQL in Input Agent DB.
	*SUBJECT*	Field Subject contains in Input Agent Mail (event-driven).
	*TCPALIAS*	Field Connection alias in Input Agent TCP.
	*TOPIC*	Field Topic in Input Agents MQTT and Kafka.
	*TYPE*	Field Selected input agent.
	*URLSUFFIX*	Field URL address suffix in Input Agent HTTP (event-driven).
*BASIC*		Tab Main settings.
	*ACTIVE*	Switch Activate profile.
	*AGENTTYPE*	Tab Phase 1, field Selected input agent.
	*CHECKENV*	Tab Extensions, field Environment check through.
	*CHECKPOINTSDEFINED*	Tab Checkpoints, field Checkpoints (true or false).
	CREATEDAT	Tab Info, field Created at. Example: search(BASIC.CREATEDAT, "2022-11-14", contains)
	*DESCRIPTION*	Tab Info, field Description of profile.
	*DOCUMENTATIONURL*	Tab Info, field Documentation URL.
	*ENCODING*	Tab General, field Encoding.
	*EXCEPTIONPROFILE*	Tab Error handling, field Profile on error.
	EXCEPTIONWORKFLOW	Tab Error handling, field Start new workflow.
	*FORMAT*	Field Document type.
	*GROUP*	Group name.
	*INDEXDATA*	Tab Backup/Limits, checkbox Index backup of input data.
	*LOGPOOL*	Tab General, field Log-Pool.
	MODIFIEDAT	Profile overview, column Modified at . Example: search(BASIC.MODIFIEDAT, "2024-05", contains)
	MODIFIEDBY	Profile overview, column Modified by.
	*NAME*	Field Name.
	*PHASE4*	Switch Activate phase 4.
	*PREPARSER*	Name of used preparser in tab Extensions.
	*PRIORITY*	Tab General, field Priority. Key words: VERY LOW , LOW , NORMAL , HIGHER , HIGHEST.
	*PRIVATEDATA*	Switch Sensitive input/output data.
	*PROFILETYPE*	Column Input agent in profile overview.
	*SEMANTIC*	Tab Phase 2, tab Document type, checkbox Execute semantic checks.
	*SINGLERUN*	Tab General, checkbox Profile may only run in one instance.
	*SUSPENDED*	Profiles that are suspended (true or false).
	*TEMPLATE*	Profiles that are templates (true or false).
	*TRANSPORTMANAGER*	Switch Marked as ready for Transport Manager.
	*VERSION*	Field Version.
IU		Tab Phase 5.
	*CONFIG*	Field Config file.
	*PARAM*	Column Name.
	*POSTEXECUTION*	Field Postexecution.
	*POSTEXECUTIONENCODING*	Field Encoding of IU data.
	*UNIT*	Field Integration Unit.
*RESPONSE*		Tab Phase 6.
	*ACTIVE*	Profile with activated/deactivated Response (true or false).
	*AMQPALIAS*	Response AMQP/JMS, tab Settings, field Alias.
	*AS2SUBJECT*	Response AS2, tab Settings, field Subject.
	*AS2URL*	Response AS2, tab Settings, field URL.
	*AS400CMD*	Response AS/400, tab Settings, field Program.
	*ASM*	Various Responses, tab ASM settings (selected ASM entry).
	*BUCKET*	Response CloudStorage, tab Settings, field Bucket (if available).
	*CHANNEL*	Various Responses , tab Settings, field Channel selection (name).
	*CONFIG*	Response Custom class, tab Settings, field Additional parameters.
	*CUSTOMCLASS*	Response Custom class, tab Settings, field Class.
	*DEPENDSON*	All Responses , tab Dependencies, field in response no.
	*FAX*	Response Fax , tab Settings , field Partner fax number .
	*FILENAME*	Responses AS2, AS4, CloudStorage, File, Fax, FTP, OFTP and SCP, tab Settings, field File. Responses Mail und X.400, tab Settings, field Name of attachment. Response WebDAV, tab Settings, field File name.
	*HOST*	Response AS/400, tab Settings, field Target system.
	*KAFKAALIAS*	Response Kafka, tab Settings, field Alias.
	*KAFKAKEY*	Response Kafka, tab Settings, field Key.
	*LABEL*	Field Name/Description of Response.
	*MAILSUBJECT*	Response Mail, tab Settings, field Subject.
	*MAILTO*	Response Mail, tab Settings, field To.
	*MQTTALIAS*	Response MQTT, tab Settings, field Alias.
	*MSGCONTEXT*	Response Message, tab Settings, field Context name.
	*MSGQUEUE*	Response Message, tab Settings, field Queue name.
	*POSTEXEC*	All Responses , tab Content settings, field Treatment of data postexecution.
	*POSTEXECCONFIG*	Al Responses , tab Content settings, field Config file.
	*PROFILE*	Response Message, tab Settings, field Profile name.
	*QUERY*	Response HTTP , tab Settings , field Query/Body .
	*SAPALIAS*	Responses SAP and SAP ALE, tab Settings, field SAP Alias.
	*SAPQRFC*	Response SAP, tab Settings, field qRFC Queue.
	*SAPRFC*	Response SAP, tab Settings, field RFC.
	*SMSFROM*	Field From in Response SMS .
	*SMSTO*	Field To in Response SMS .
	*TOPIC*	Responses MQTT, AMQP/JMS and Kafka, tab Settings, field Topic.
	*TYPE*	Column Response.
	*WEBDAVDIR*	Response WebDAV, tab Settings, field Directory.
*TAGS*		Tab Main settings, tab Info.
	*TAG*	Field Tags.
*TREE*		Tab Phase 3.
	*DESTINATION*	Field Target structure (so the name of the target structure).
	FIXVALUE	Target structure field attribute Fix value .
	*FUNCTION*	Field Used functions.
	*SOURCE*	Field Source structure (so the name of the source structure).
*VARIABLES*		Variables in tab Phase 3.
	*VARIABLE*	Name of variable.

Workflows

*BASIC*		Tab Main settings.
	*ACTIVE*	Checkbox Active.
	*COCKPITROLE*	Field DataCockpit roles.
	CREATEDBY	User that created entry.
	*DESCRIPTION*	Field Description.
	*DOCUMENTATIONURL*	Field Documentation URL.
	*EOLACTION*	Name of final action.
	GROUP	Group name.
	MODIFIEDAT	Modification date of entry.
	MODIFIEDBY	User that modified entry.
	*NAME*	Field Name.
	*URL*	Field URL key.
	*USERS*	Field _data user.
*STATE*		Workflow state.
	*DESCRIPTION*	Field Description.
	*NAME*	Field Name.
*TRANSITION*		Workflow transition.
	*DESCRIPTION*	Field Description.
	*NAME*	Field Name.
*VARIABLES*		Workflow variable.
	*VARIABLE*	Name of variable.

Content Inspection

*BASIC*		Tab Main settings.
	*ACTIVE*	Checkbox Active.
	*ASM*	Tab Data transmission , field ASM selection .
	CHANNEL	Tab Data transmission for X.400 , field Channel selection (field content is <partner name>:<channel name> ).
	*CHANNELIDS*	Channel ID of selected partner channels in tab Partner relation.
	*COLLECTEDFILENAMES*	Tab File compound , field Existing files .
	*DESCRIPTION*	Field Description.
	*DOCUMENTATIONURL*	Field Documentation URL.
	*ENCODING*	Field Encoding.
	*FILEPATTERN*	Field File pattern.
	GROUP	Group name.
	*INSPECTORLIST*	Type of inspector in field File inspectors.
	MAILBODY	Tab Data transmission for X.400 , field Text .
	*MERGECLASS*	Type of merger in area Postexecution.
	MODIFIEDAT	Field History.
	MODIFIEDBY	Field History.
	*NAME*	Field Name.
	*PRIORITY*	Field Priority.
	*PROFILE*	Used profile in tab Data transmission.
	RECIPIENTS	Tab Data transmission for X.400 , field Recipient .
	SENDER	Tab Data transmission for X.400 , field Sender .
	*SPLITCLASS*	Type of splitter in area Preexecution.
	SUBJECT	Tab Data transmission for X.400 , field Subject .
	*TYPE*	Field Type.
	WORKFLOW	Tab Data transmission, option Workflow, field Workflow selection.

ASM

*BASIC*		Tab Main settings.
	*ACTIVE*	Checkbox Active.
	*BACKUP*	Field Backup.
	*DESCRIPTION*	Field Description.
	*DIRECTORY*	Field Directory.
	*DOCUMENTATIONURL*	Field Documentation URL.
	GROUP	Group name.
	MODIFIEDAT	Field History.
	MODIFIEDBY	Field History.
	*NAME*	Field Name.
	*RECIPIENTERROR*	Tab Notification, field Recipient.
	*RETAINBACKUP*	Field Keep backup for.
	*RETAINLOGS*	Field Keep logs for.
	*TYPE*	Tab Transmission , field Select channel type. Key words: AS2 , FILE , API (for Custom class ), FTP , FAX , HTTP , KAFKA , SMTP (for Mail ), OFTP , SAP ALE , SCP , X.400 .
*TRANSFER*		Tab Transmission.
	*CHANNELID*	Field Communication channel (→ channel ID).
	*CONFIG*	Transmission type Custom class, field Config file.
	*CUSTOMCLASS*	Transmission type Custom class, field Class.
	*DIRECTORY*	Transmission type File, FTP, SCP, field Directory.
	*FAX*	Transmission type Fax, field Partner Fax number.
	*MIMETYPE*	Transmission type AS2, Mail, X.400, field MIME type.
	*SAPALIAS*	Transmission type SAP ALE, field SAP Alias.
	*SUBJECT*	Transmission type AS2, Mail, X.400, field Subject.

ETL/ELT

*BASIC*		Tab Main settings.
	*ACTIVE*	Checkbox Active.
	CREATEDAT	Creation date of entry.
	CREATEDBY	Creator of entry.
	*DESCRIPTION*	Field Description.
	*DOCUMENTATIONURL*	Field Documentation URL.
	GROUP	Group name.
	MODIFIEDAT	Overview, column Modified at.
	MODIFIEDBY	User that modified entry.
	*NAME*	Field Name.
	*PROCESSTYPE*	Field Process type. Key words: LOCAL, REMOTE.
*ETLELEMENT*		Tab ETL/ELT tasks.
	*DESTINATIONTYPE*	Tab Action (destination data) , field Type destination data . Key words: DB , MONGO , CSV , FIX (for Fix record ), VELOCITY (for Template ), MAIL , FILTER (für Functions ), CUSTOM , NONE (for Without ).
	*NAME*	Name of task in field ETL/ELT tasks.
	*SOURCETYPE*	Tab Source data , field Type source data . Key words: DB , MONGO , CSV , FIX (for Fix record ), XML , JSON , CUSTOM , CLIPBOARD , NONE (for Without ).
*VARIABLES*		Tab Variables.
	*VARIABLE*	Name of variable.

Data Flow

*ASM*		ASM entries used in Data Flow.
	*DESCRIPTION*	Field Description in tab Main settings of the ASM entry.
	*NAME*	Name of the ASM entry.
*BASIC*		Tab Main settings.
	*CHANNELIDS*	ID of channel used in Data Flow.
	*DESCRIPTION*	Field Description.
	*DOCUMENTATIONURL*	Field Documentation URL.
	GROUP	Group name.
	*MODIFIEDAT*	Modification date of entry.
	MODIFIEDBY	User that modified entry.
	*NAME*	Field Name.
CI		Content Inspection entries used in Data Flow.
	*DESCRIPTION*	Field Description in tab Main settings of the CI entry.
	*NAME*	Name of the CI entry.
*CONSTANTS*		Constants used in Data Flow.
	*NAME*	Name of the constant.
*ETL*		ETL entries used in the Data Flow.
	*DESCRIPTION*	Field Description in tab Main settings of the ETL entry.
	*NAME*	Name of the ETL entry.
*PROFILE*		Profiles used in the Data Flow.
	*DESCRIPTION*	Field Description of profile in tab Main settings, subtab Info of the profile.
	*NAME*	Name of the profile.
*WORKFLOW*		Workflows used in Data Flow.
	*DESCRIPTION*	Field Description in tab Main settings of the workflow.
	*NAME*	Name of the workflow.

ENGDAT

*BASIC*		Tab Main settings.
	*CHANNELID*	Tab Message, field Communication channel (→ ID).
	*DESCRIPTION*	Tab Message, field Description.
	*DIRECTION*	Page Templates, column Direction.
	*ENCODING*	Tab Message, field CharSet.
	*ERROR*	Erroneous transmissions ( true or false ).
	*ERRORMSG*	Field Status (text in brackets).
	*MAIL*	Field Mail notifications to.
	*NAME*	Field Reference, or name of entry.
	*PROFILE*	Tab Message, field Profile for post processing (direction Inbound).
	*ROUTE*	Tab Message, field Route.
	*VERSION*	Page Templates, column EngDAT.
*COMPANYDESTINATION*		Area Partner information.
	*CITY*	Tab Company, field Postcode/C (right field).
	*COMPANY*	Tab Company, field Company.
	*COMPANYID*	Tab Company, field Company-ID (right field).
	*COUNTRY*	Tab Company, field Country.
	*SITEID*	Tab Company, field Site ID.
	*STATE*	Tab Company, field State.
	*STREET*	Tab Company, field Street.
	*ZIP*	Tab Company, field Postcode.
*COMPANYORIGIN*		Area My Information.
	*CITY*	Tab Company, field Postcode/C (right field).
	*COMPANY*	Tab Company, field Company.
	*COMPANYID*	Tab Company, field Company-ID (right field).
	*COUNTRY*	Tab Company, field Country.
	*SITEID*	Tab Company, field Site ID.
	*STATE*	Tab Company, field State.
	*STREET*	Tab Company, field Street.
	*ZIP*	Tab Company, field Postcode.
*CONTACTDESTINATION*		Area Partner information, tabs Developer, Technician, Trader.
	*DEPARTMENT*	Field Department.
	*FAX*	Field Fax.
	*FORENAME*	Field First name.
	*MAIL*	Field Mail.
	*MOBILE*	Field Mobile.
	*PHONE*	Field Phone.
	*ROUTE*	Field Route.
	*SURNAME*	Field Last name.
	*TYPE*	Checks if developer/technician/trader contact information is available . Key words: ENG , TECH , TRADE .
*CONTACTORIGIN*		Area My information, tabs Developer, Technician, Trader.
	*DEPARTMENT*	Field Department.
	*FAX*	Field Fax.
	*FORENAME*	Field First name.
	*MAIL*	Field Mail.
	*MOBILE*	Field Mobile.
	*PHONE*	Field Phone.
	*ROUTE*	Field Route.
	*SURNAME*	Field Last name.
	*TYPE*	Checks if developer/technician/trader contact information is available. Key words: ENG , TECH , TRADE .

MFT

*BASIC*		Page Rule.
	*ENCODING*	File encoding.
	FILENAME	File name.
	FILEPATTERN	File pattern.
	*FILETYPE*	File type.
	*NAME*	Name of rule.
	*PARTNERS*	Selected partners.
	*PROFILE*	Profile.
