Response Route TCP
Introduction: You can find a description of this phase in section Phase 6 (Introduction).
This Response Route has two use cases.
Use Case 1

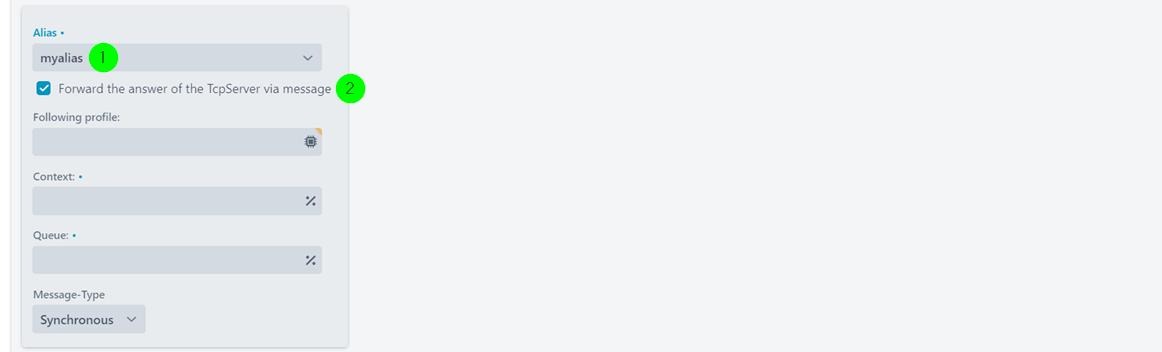

If (1) is a client connection, the payload is sent there.
The response of the TCP server can be forwarded to a subsequent profile via Message (2). For setting details see Response Route Message. Note: If the connection uses a ByteHandler, the response is a Base64 string. See also function decode Base64(a, b).
Use Case 2
If (1) is a server connection and (1) is used in the profile in a TCP Input Agent, the payload is sent as a response to the TCP client that called the profile.
Payload
The payload is the content of the Response Route.
If (1) uses a StringHandler, specify a normal string.
If (1) uses a ByteHandler, a Base64 value must be specified. Use function convert hex to base64(a,b) to generate the value.
