DataCockpit/Portal (Input Agent)


images/download/thumbnails/44944591/arrow_up-version-1-modificationdate-1582703563536-api-v2.png Introduction: You can find a description of this phase in section Phase 1 (Introduction).



The Input Agent Portal is part of the s ubmodule Forms of the add-on module DataCockpit .

Profiles with this Input Agent can be used to create Web 2.0 applications without programming. Profiles of this type create form pages that allow data to be uploaded directly to the profile via a form (static or dynamic). The data can then be processed in the profile as usual.


images/download/attachments/44944591/537-version-4-modificationdate-1657698455956-api-v2.png images/download/attachments/44944591/538-version-4-modificationdate-1657698547198-api-v2.png

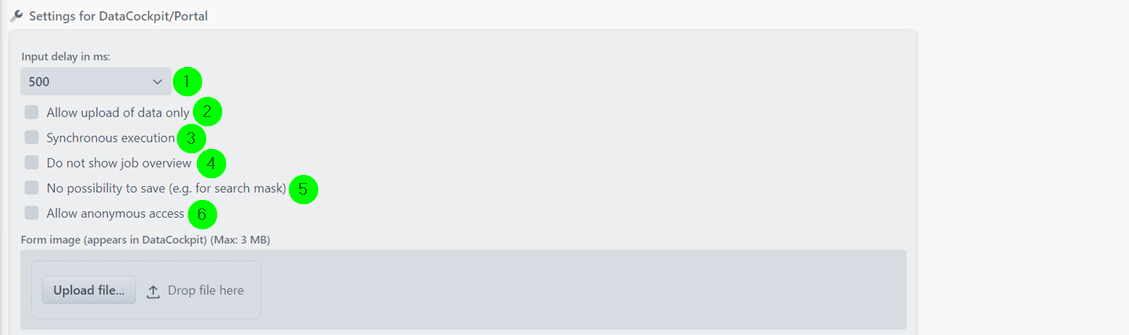

(1) See section Dynamic Form.

(2) You can only upload files, but no data via a form .

(3) If the checkbox is set, the status of the form profile job is waited for before the form is closed. If the form profile is used in a workflow, the transition check does not start until the form profile job is finished.

(4) No job overview is displayed, only the Portal form. Note: Has no effect if (2) is set.

(5) The form page can not trigger the form profile itself, but data profiles can be used to fill the form, e.g. in search masks.

(6) If this checkbox is set, the use of the form is also possible without being logged in to DataCockpit, via the link http(s)://<URL/IP Integration Server>/DataCockpit/form/<profile name>. Alternatively, you get an anonymized link in the form via the Share label.

images/download/thumbnails/44944591/1168-version-1-modificationdate-1656378633702-api-v2.png

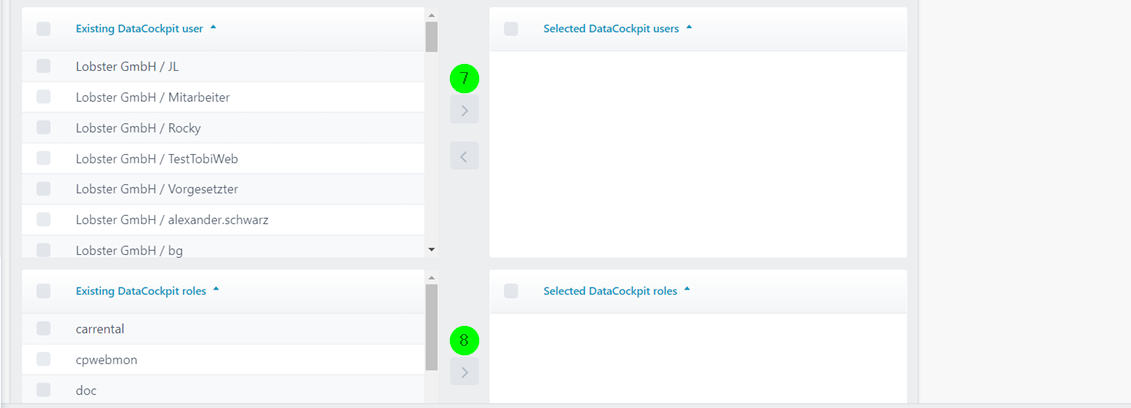

(7) All available and assigned Web Monitor users (= DataCockpit and Forms users). The form page created by this profile is visible for the selected users . Important note: You must select at least one user or role (8).

(8) All available and assigned Web Monitor roles (= DataCockpit and Forms roles). The form page created by this profile is visible for the selected roles. Important note: You must select at least one user (7) or role.

Response Route


There is no corresponding Response Route here.
