Search and Find
Introduction: You can find a description of this phase in section Phase 3 (Introduction).
You can open this dialogue via the upper menu bar in phase 3.
Mappings
This view allows you to easily search for mapped fields.

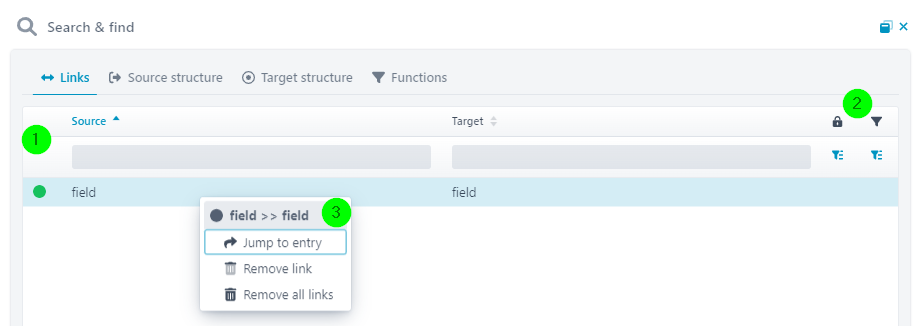

(1) Here you will see all source structure fields mapped to target structure fields.
(2) Functions and fixed values on target structure fields.
(3) Using the context menu, you can jump directly to the corresponding fields or delete the mapping.
Source Structure

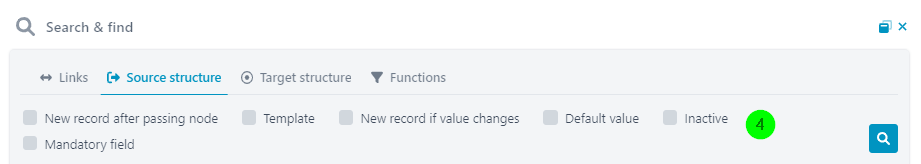

(4) Here you can search for source structure fields/nodes with set attributes Create new record, Template, New record if value changes, Default value, Inactive, Mandatory field (Minimum>0) .
Target Structure

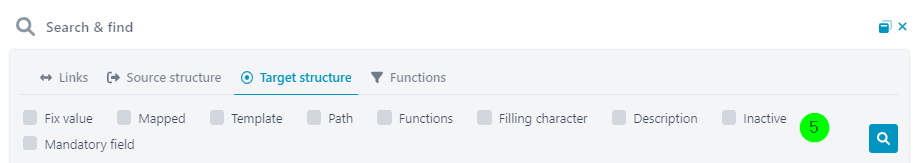

(5) You can search for target structure fields/nodes with set attributes Fix value, Template, Path, Filling character, Description, Inactive , Mandatory field and for mapped fields and fields with functions.
Functions

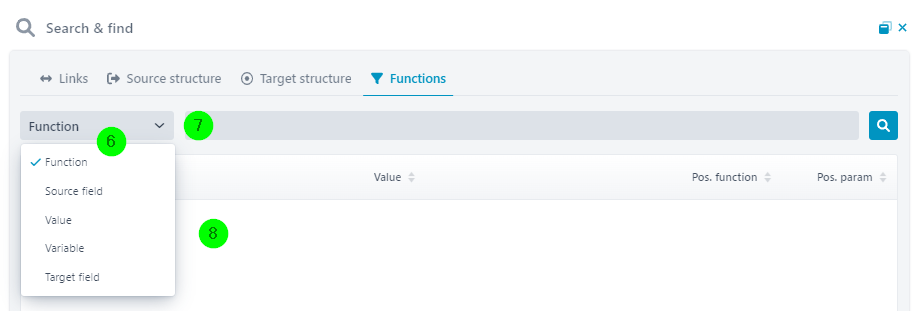

You can search in functions (on target fields). What is searched for and what you get as a result is described in the table below.
|
(6) |
(7) Search Term |
(8) Result |
|
Function |
(Partial) name of the searched function. |
The field in the target structure that uses this function. |
|
Source field |
(Partial) name of the source field that is used as a parameter in a function. |
The field in the target structure that contains the function that uses the source field as a parameter. |
|
Value |
(Partial) value that is used in a function. |
The field in the target structure that contains the function that uses the value as a parameter. |
|
Variable |
(Partial) name of the variable that is used as a parameter in a function. |
The field in the target structure that contains the function that uses the variable as a parameter. |
|
Target field |
(Partial) name of the target field that is used as a parameter in a function. |
The field in the target structure that contains the function that uses the target field as a parameter. |
