ASM Main Page

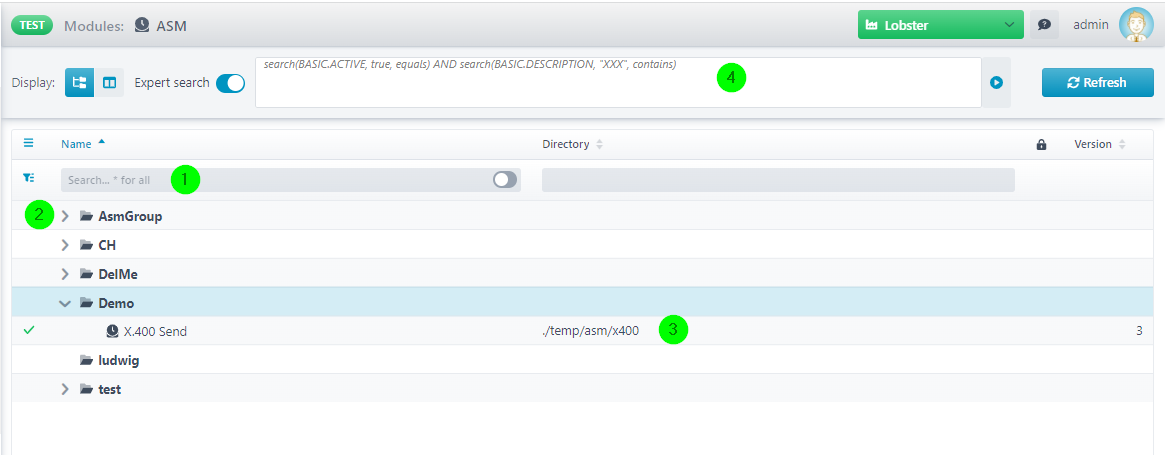

The following screenshots show the dialogue for configuring ASM entries.
(1) Search for ASM entries by name.
(2) Groups. Similar to the profiles, ASM entries can also be assigned to groups.
(3) The ASM directory.
(4) Expert search.
Context Menu
|
Create new ASM entry |
Self-explanatory. |
|
Edit/only view/duplicate/delete ASM entry |
Self-explanatory. |
|
Create new group/ Change/delete group |
Self-explanatory. |
|
Open in new window |
The entry will be opened in another browser tab. Attention: Your browser may block this as an unauthorised popup. Check your browser settings if necessary. |
|
Export/import entry |
Here you can export and import ASM entries. Note: Lobster_data also provides the Transport Manager , which allows an online transport of profiles without the intermediate step via files. However, the versions of both systems must be within the same major release, e.g. 4.0.0 and 4.1.0. Versions 3.5.4 and 4.0.0 would not work. |
|
Compare (Diff) with... |
Compares the workflow definition with another workflow definition. As a result you get a diff file with the differences. |
|
Set entries to active/inactive |
Can be applied to entire groups or to individual entries. |
|
Quick view |
Opens a small quick view site with the most important data for this ASM entry. |
|
Display as DataFlow |
The workflow definition is displayed as a data flow diagram (not editable). |
|
To clipboard |
Here you can copy the name and the ID of the ASM entry. |
|
Start ASM entry now |
The cron job for the selected entry can be started here. |
|
Generate PDF |
Creates a PDF containing all settings of this ASM entry. |
