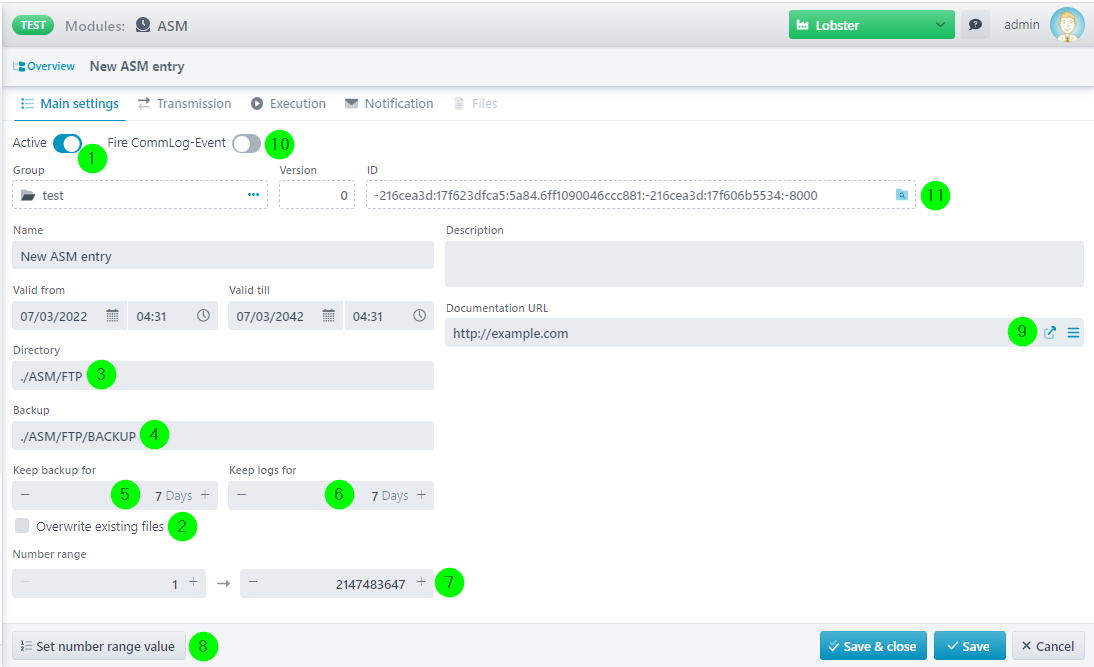

Main Settings (ASM)

(1) Only active (and valid) ASM entries are executed.

(2) If the option append is not used in the Response Route of the profile sending to the ASM entry and a file with the same name already exists, the Response Route will fail if this checkbox here is not set.

(3) Base directory where the files are collected.

(4) The backup base directory in which the files are copied after a successful transmission (a subfolder with a timestamp as the name is created). If the field is left empty, no backup is generated.

(5) Retention period for the backup files (4) in days. Values less than 1 are corrected to 1.

(6) Retention period for log entries in days. Values less than 1 are corrected to 1. You will find the logs in a separate area of the Control Center.

(7) + (8) You can define the start and end value (7) and the current value (8) of the number range of this ASM entry. This number range value can, for example, be used on the page Execution.

(9) You can specify any URL that contains documentation of this ASM entry. You can use the symbols to open it and insert system constants into the URL.

(10) Only relevant if a partner channel is specified in the transmission. See section General Channel Settings.

(11) Here you can display the search index of the ASM entry. These values can be queried in the expert search.
