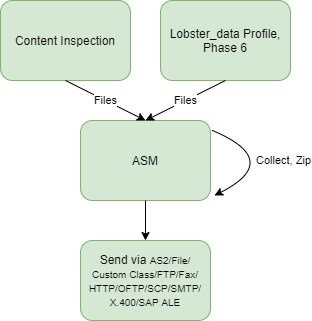

The add-on module ASM (Asynchronous Sending Module) is used to transfer any number of files to a communication partner in only one session. ASM collects the files and transfers them at a defined time (specified in cron syntax). Optionally, these files can be packed in archive containers (ZIP, TAR, etc.) beforehand. The maximum number of files in a session can also be set.

images/download/attachments/51156700/ASM-version-4-modificationdate-1613452862006-api-v2.png

There are two ways to send data to the Asynchronous Sending Module (to an ASM entry).

With a Content Inspector (no metadata is passed).
With a Response Route (phase 6 of a profile) of types AS2, File, Fax, FTP, HTTP(S), Mail (SMTP), OFTP, SAP ALE, SCP or X.400 by directly specifying an ASM entry (metadata is passed).

Metadata

Metadata contains, for example, the directory name, the file name, the control file for FTP, the file SFID for OFTP, etc. If no metadata is available for a file, default values for the transfer can be defined in the other settings of the respective ASM transmission type. These default values are only used if no metadata is available.
