Lobster_data Sends File to a Partner‌ Using a Response Route via DMZ (Outgoing)

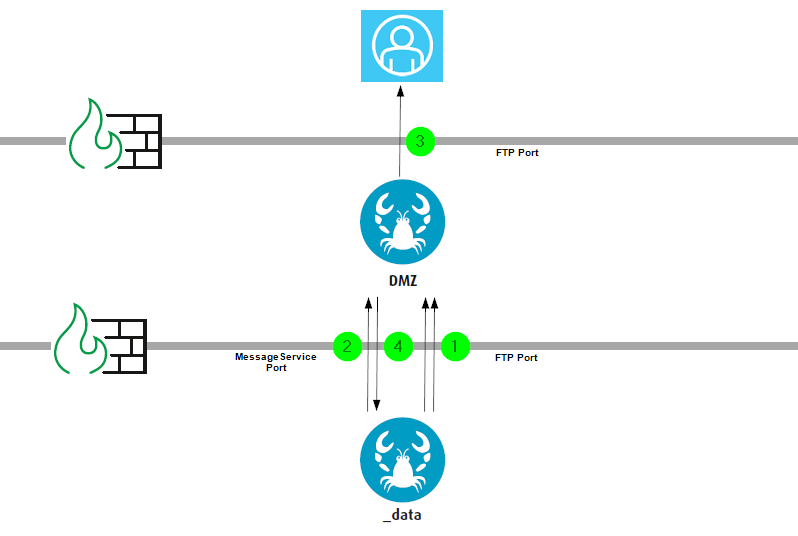

See the following diagram for a file transfer using FTP.

images/download/attachments/55936187/1-version-3-modificationdate-1623298641929-api-v2.png

(1) Lobster_data transfers a file into the DMZ directory, using the FTPService. The connection is established by the inner server.

(2) Lobster_data sends a request message to the DMZ server: Send the file to the partner via FTP (including login data, home directory, ...).

(3) The DMZ server transfers the file to the partner.

(4) The DMZ server sends a response message to the inner Lobster_data. The file has been transferred. Note: Also see the note on the pushback mode in section Interaction Lobster data and DMZ‌.
