Jobs per Profile
The page offers an overview of the log messages on basis of the profiles defined in Lobster_data. After selecting a profile with the full-text search or the profile tree, all finished jobs of the selected profile will be shown.

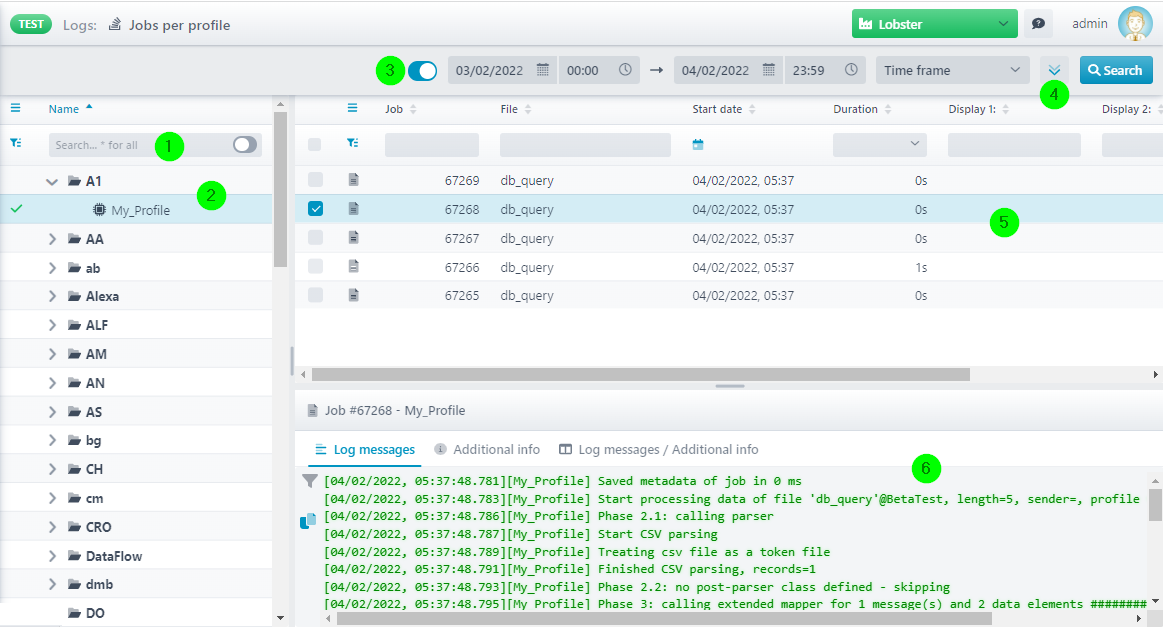

Search Mask
(1) Here a profile can be searched for with a keyword. After a successful search, the located profiles will be shown as a list instead of the group/profile tree. The wildcard * can also be used, e.g. Company*AS2*send.
(2) Here a profile can be searched for within the group/profile tree.
(3) To show a current list of the search period, please click the magnifying glass symbol.
(4) With this button, the extended search can be opened.
(5) The list of the located jobs of a profile.
(6) The log messages of a marked job. If available, a trace file (see section System Logging) can be opened via a right-click on the log messages and viewed on subpage Server Logs. The additional info shows log text that has been created with function log info(a).

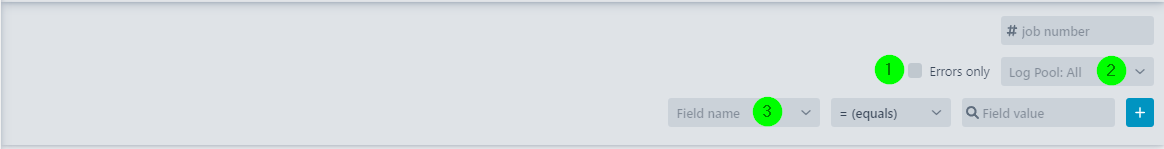

Advanced Search
(1) If this checkbox is set, only jobs that match the search criteria and terminated with an error are displayed.
(2) The logging of a profile job in Lobster_data can be done in separate Log Pools. The default Log Pool is called Standard.
(3) If a target structure field attribute Log field value has the value Yes and there is a value for attribute Name for logging as well, the value of the target structure field itself will be written in the job log with the specified name. You can select a name in the left field and a value in the right field (1).
|
Additional information |
See function log info(a). |
|
Display 1-3 |
Refers to columns Display 1, Display 2 and Display 3. See function set display column(a,b,c) for details (column names can be customised). |
Context Menu of a Job
|
View/Download file |
Opens the input file in the editor or downloads it to the local computer. |
|
View/Download output file |
Opens the output file in the editor or downloads it to the local computer. These files must have been created in a Response Route of type File, with set checkbox Is backup of target data. |
|
Restart |
Open the restart dialogue for this job. |
|
Edit meta data |
Opens an additional metadata editor in which you can view and edit existing variables from the metadata. |
|
To error |
Opens an erroneous job directly on subpage Errors. |
|
To clipboard |
In a further dialogue, the job number, profile name and file name can be copied. |
|
Show input message as structure |
If a profile has a source structure, you can display an analysis of the input data relative to this source structure. The analysis result is an XML file that has a hierarchical structure like the source tree, that is, the input data that has been parsed into the source structure. |
|
Show Comm-Log entries |
If there is a Comm Log entry for this job, you can jump directly to the entry. |
|
Find follow up jobs |
You can search for jobs that have been created as subsequent jobs of this job (so, for example, if a subsequent profile has been triggered in a Response Route of type Message). |
|
Search profile chain in Dataflow |
Opens the process view in the add-on module Data Flow if there is an entry with this profile. |
Context Menu of a Profile
|
Search in backup file |
If the backup files were indexed, you can search within them here. |
|
Show backup path |
You can view the path under which all the backup files for this profile are written. |
