Advantages of V4

The XML V4 parser (add-on module) offers significant performance gains with extremely low memory consumption. Compared to the XML-V3 parser, the memory requirement drops to about 10%. For input files up to about 100 MB, the runtime drops to about 5% compared to version 3. Further significant performance gains are possible via optional XPath filters.

In addition, extremely large XML input files of up to a maximum of 250 GB can be parsed. However, the runtime will then significantly increase again because of the necessary disk accesses.

Furthermore, the data from the XML input file can be combined into virtual elements (chunks) during parsing. Data outside the parsing realm can also be inserted into these chunks.

Preparser

If a preparser is used with the XML V4 parser, the backup file must be overwritten with the result of the preparser.

Settings

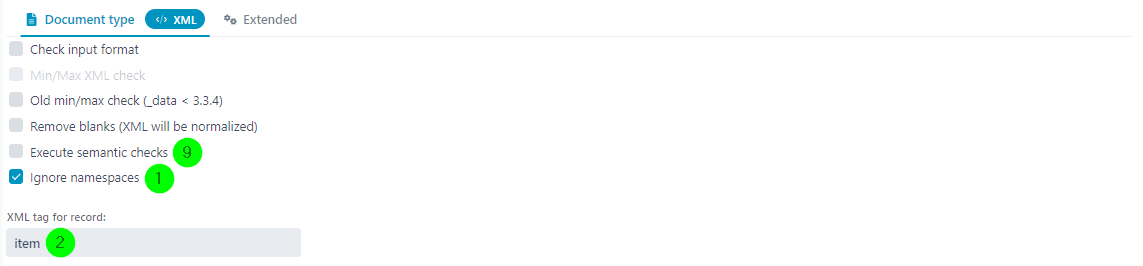

(1) Must be set for V4.

(2) Specifies the tag name (element) below which you want to parse. An entry must be made here, even if the entire XML structure is to be parsed. If you want to parse a partial document, it must also conform to the XML convention (well-formed). Note: Can also be an XPath 1.0 expression, e.g. /inventory/books[@title="xxxx"]. Note: See also section Effect of an Entry in Field 'XML tag for record'.

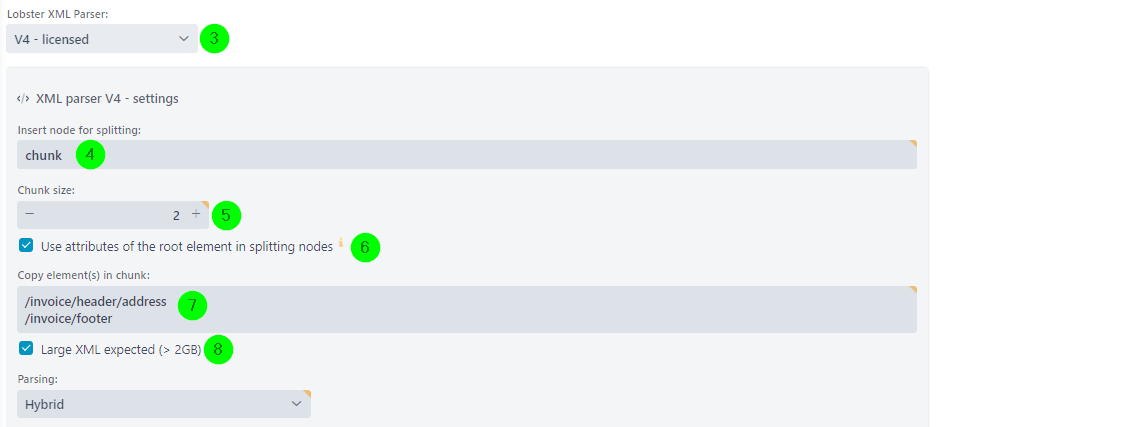

(3) Must be set to V4.

(4) We do not want to create a new record per item. Instead, we want 2 item elements in each record, see (5). Therefore we create a new, artificial root element chunk. See section Generating Chunks below.

(5) The number of item elements per record, i.e. per chunk element, see (4). See section Generating Chunks below.

(6) We have two attributes date and ref in root element invoice. We need these in the mapping, so we activate this checkbox and all available attributes are copied into chunk (4).

(7) The specified elements, including their child elements, are copied into each chunk element (4). All XPath 1.0 expressions are allowed. See section Copy Attributes and Elements Redundantly into Each Record below.

(8) If the XML file is smaller than 2 GB, please uncheck this checkbox, otherwise set it. Automatically set if the file is larger than 2 GB, but then uses conservative parsing method Disk.

(9) Incoming files can be checked with semantic rules. See section Semantic Check .

Example

We will use the following XML file: test_EN.xml

If repeated subelements (here item) are to lead to multiple records, you should not specify the real root element (invoice) of the XML document in (2) (see section Effect of an Entry in Field 'XML tag for record'). Previous parsers (prior to V4) lost all attributes of the root element and any parent or sibling elements that were not within the element item. With the XML parser V4, data from these 'blind' areas of the XML document can be copied into each record, as described in section Copy Attributes and Elements Redundantly into Each Record below.

Generating Chunks

If the structure of the input data would lead to a large number of small records, for example, because it contains several million item elements, the performance would suffer. In this case, it would make sense to combine several item elements in one record. However, there would be no natural structure in the input data to support that. However, you can force the parser to create a virtual element (4) (here chunk). This 'chunk' element then appears as a root element that contains several item elements.

The generation of chunks with (4) and (5) is optional. If (4) remains empty, a record is generated per (2) (in the example per item). In that case, the root node of the source structure should correspond to the item element.

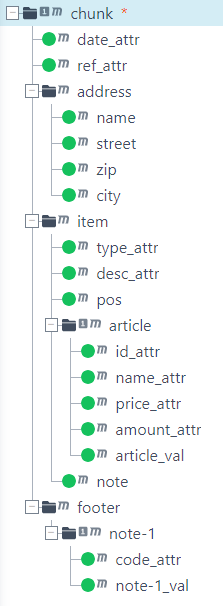

If a virtual chunk element is used in (4), an additional root node corresponding to the chunk element (here chunk) must be used in the source structure. This node receives a match code as in (4) to parse the virtual chunk element (so Equals=chunk). And here the fitting source or target structure. Setter identifiers can be defined as usual, but they are already created when the source structure is created automatically. Use the file for_structure_EN.xml for this purpose: And here the complete profile: Profile-XML_V4_EN.pak
