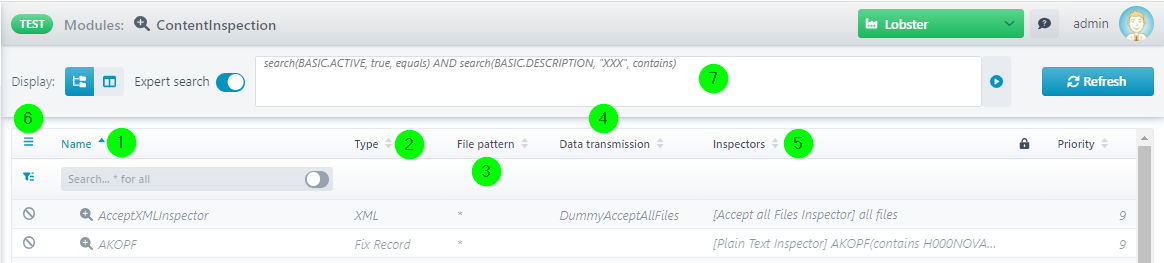

Overview (CI)
(1) A Content Inspector can be searched via the filter field or via the tree structure (groups are shown as folders).
(2) The type of the Content Inspector. This value only has an informational character and no other function.
(3) The file pattern the Content Inspector reacts to. The file pattern is used as a simple preselection to determine if the Content Inspector is responsible for a file. See also section Content Inspection.
(4) This specifies to which instance the Content Inspector passes his files. Files can, for example, be forwarded to a profile, or even be sent by email. See also section Content Inspection.
(5) All File Inspectors of the Content Inspector are listed. For multiple entries, only the first File Inspector will be visible, but the others can be seen in a pop-up window when hovering over the Content Inspector.
(6) More view options.
(7) Expert search.
Context Menus
Selected Group (Folder)
|
Create new group |
Self-explanatory. |
|
Change/Delete group |
Self-explanatory. |
|
Set entries to active/inactive |
All entries of a group can be set active or inactive. |
Selected Content Inspector
|
Create new inspector |
Self-explanatory. |
|
Edit/Delete/Only view/Duplicate inspector |
Self-explanatory. |
|
Set entry to active/inactive |
Self-explanatory. |
|
Open in new window |
The entry will be opened in another browser tab. Attention: Your browser may block this as an unauthorised popup. Check your browser settings if necessary. |
|
Quick view |
A small window will open, showing the main settings of the Content Inspector. |
|
Display as DataFlow |
The workflow definition is displayed as a data flow diagram (not editable). |
|
Export/Import entry |
Self-explanatory. Note: Lobster_data also provides the Transport Manager , which allows an online transport of profiles without the intermediate step via files. However, the versions of both systems must be within the same major release, e.g. 4.0.0 and 4.1.0. Versions 3.5.4 and 4.0.0 would not work. |
|
Compare (Diff) with |
Compares the workflow definition with another workflow definition. As a result you get a diff file with the differences. |
|
To clipboard |
Here you can copy the name and the ID of the Content Inspector entry. |
|
Generate PDF |
Creates a PDF containing all settings of this Content Inspector entry. |
