Expert Search
The expert search can be used in various places in the GUI ( profile overview , workflow overview , CI overview , ASM overview , ETL overview , Designer (Data Flow), ENGDAT overview ).
The search index of profiles, the search index of workflows, etc. is queried for this.
In the search, terms are used that refer to properties of the respective entries that are displayed (e.g. profiles in the profile overview or workflows in the workflow overview, etc.). For the respective keywords, see the section below.
Let's take a look at the first partial term in the screenshot above.
|
search(BASIC.ACTIVE, true, equals) |
This searches for all profiles that are active, i.e. profiles that have the checkbox Activate profile (ACTIVE) set (true) in the Main settings (BASIC). Note: For Boolean values, no quotation marks ("") are necessary around the comparison value, but for string values they are (→ see "XXX" in the second partial term). For negation, a ! is used, e.g.
|
!search(BASIC.ACTIVE, true, equals) |
Multiple partial terms can be connected with AND and OR to a larger term. In the case of connected terms, care must be taken to ensure logically correct bracketing of the partial terms. Example: (all profiles that have an AS2 Input Agent or Response Route)
|
search (RESPONSE.TYPE, "as2", contains) OR search (BASIC.PROFILETYPE, "as2", contains) |

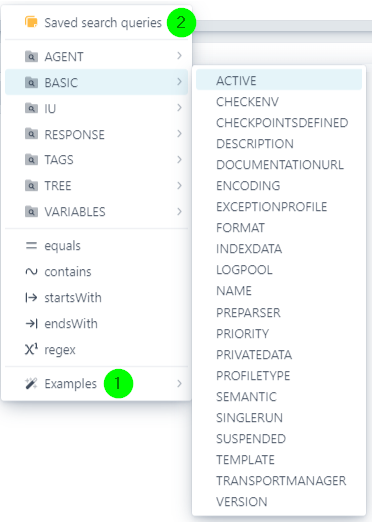

All available keywords can be displayed via the context menu of the search field (see section below). For example, AGENT stands for the Input Agent, RESPONSE for Response Routes, and so on. Via (1) you can find example queries. In the search field, an autocomplete function is also available as soon as you enter something. Via (2) you can save search queries or use saved ones, see also section User Menu.
Keywords
Profiles
|
AGENT |
|
Tab Phase 1. |
|
|
AMQPALIAS |
Field Connection alias in Input Agent AMQP/JMS. |
|
|
CHANNELID |
Channel ID of selected channel in Input Agent. |
|
|
CHANNELIDS |
Channel ID of selected channel in Input Agent (if multiple channels selectable). |
|
|
COCKPITROLES |
Selected DataCockpit role in Input Agent DataCockpit/Portal. |
|
|
CONTEXT |
Field Message context in Input Agent Message. |
|
|
CUSTOMCLASS |
Selected class in Input Agent Custom class. |
|
|
CUSTOMCONFIG |
Field Config file in Input Agent Custom class. |
|
|
DBALIAS |
Field DB alias in Input Agent DB. |
|
|
DIRECTORY |
Field Directory in Input Agent File. |
|
|
DQUEUE |
Field DataQueue in Input Agent DataQueue. |
|
|
FACTORYNAME |
Field Start on IS only . |
|
|
FILEEVENT |
Checkbox React to file events in Input Agent File. |
|
|
HOST |
Field Host in Input Agent DataQueue. |
|
|
KAFKAALIAS |
Field Connection alias in Input Agent Kafka. |
|
|
MIMETYPE |
Field MIME type in Input Agents AS2, AS4, HTTP (event-driven), Mail (event-driven). |
|
|
MQTTALIAS |
Field Connection alias in Input Agent MQTT. |
|
|
QUEUE |
Field Message queue in Input Agent Message. |
|
|
RECIPIENT |
Field Recipient address in Input Agent Mail (event-driven). |
|
|
SAPALIAS |
Field SAP alias in Input Agent SAP ALE (event-driven). |
|
|
SMS |
Field Phone number in Input Agent SMS . |
|
|
SQL |
Field SQL in Input Agent DB. |
|
|
SUBJECT |
Field Subject contains in Input Agent Mail (event-driven). |
|
|
TCPALIAS |
Field Connection alias in Input Agent TCP. |
|
|
TOPIC |
Field Topic in Input Agents MQTT and Kafka. |
|
|
TYPE |
Field Selected input agent. |
|
|
URLSUFFIX |
Field URL address suffix in Input Agent HTTP (event-driven). |
|
BASIC |
|
Tab Main settings. |
|
|
ACTIVE |
Switch Activate profile. |
|
|
AGENTTYPE |
Tab Phase 1, field Selected input agent. |
|
|
CHECKENV |
Tab Extensions, field Environment check through. |
|
|
CHECKPOINTSDEFINED |
Tab Checkpoints, field Checkpoints (true or false). |
|
|
DESCRIPTION |
Tab Info, field Description of profile. |
|
|
DOCUMENTATIONURL |
Tab Info, field Documentation URL. |
|
|
ENCODING |
Tab General, field Encoding. |
|
|
EXCEPTIONPROFILE |
Tab Error handling, field Profile on error. |
|
|
FORMAT |
Field Document type. |
|
|
INDEXDATA |
Tab Backup/Limits, checkbox Index backup of input data. |
|
|
LOGPOOL |
Tab General, field Log-Pool. |
|
|
NAME |
Field Name. |
|
|
PHASE4 |
Switch Activate phase 4. |
|
|
PREPARSER |
Name of used preparser in tab Extensions. |
|
|
PRIORITY |
Tab General, field Priority. Key words: VERY LOW , LOW , NORMAL , HIGHER , HIGHEST. |
|
|
PRIVATEDATA |
Switch Sensitive input/output data. |
|
|
PROFILETYPE |
Column Input agent in profile overview. |
|
|
SEMANTIC |
Tab Phase 2, tab Document type, checkbox Execute semantic checks. |
|
|
SINGLERUN |
Tab General, checkbox Profile may only run in one instance. |
|
|
SUSPENDED |
Profiles that are suspended (true or false). |
|
|
TEMPLATE |
Profiles that are templates (true or false). |
|
|
TRANSPORTMANAGER |
Switch Marked as ready for Transport Manager. |
|
|
VERSION |
Field Version. |
|
IU |
|
Tab Phase 5. |
|
|
CONFIG |
Field Config file. |
|
|
PARAM |
Column Name. |
|
|
POSTEXECUTION |
Field Postexecution. |
|
|
POSTEXECUTIONENCODING |
Field Encoding of IU data. |
|
|
UNIT |
Field Integration Unit. |
|
RESPONSE |
|
Tab Phase 6. |
|
|
ACTIVE |
Profile with activated/deactivated Response Route (true or false). |
|
|
AMQPALIAS |
Response Route AMQP/JMS, tab Settings, field Alias. |
|
|
AS2SUBJECT |
Response Route AS2, tab Settings, field Subject. |
|
|
AS2URL |
Response Route AS2, tab Settings, field URL. |
|
|
AS400CMD |
Response Route AS/400, tab Settings, field Program. |
|
|
ASM |
Various Response Routes, tab ASM settings (selected ASM entry). |
|
|
BUCKET |
Response Route CloudStorage, tab Settings, field Bucket (if available). |
|
|
CHANNEL |
Various Response Routes , tab Settings, field Channel selection (name). |
|
|
CONFIG |
Response Route Custom class, tab Settings, field Additional parameters. |
|
|
CUSTOMCLASS |
Response Route Custom class, tab Settings, field Class. |
|
|
DEPENDSON |
All Response Routes , tab Dependencies, field in response no. |
|
|
FAX |
Response Route Fax , tab Settings , field Partner fax number . |
|
|
FILENAME |
Response Routes AS2, AS4, CloudStorage, File, Fax, FTP, OFTP and SCP, tab Settings, field File. Response Routes Mail und X.400, tab Settings, field Name of attachment. Response Route WebDAV, tab Settings, field File name. |
|
|
HOST |
Response Route AS/400, tab Settings, field Target system. |
|
|
KAFKAALIAS |
Response Route Kafka, tab Settings, field Alias. |
|
|
KAFKAKEY |
Response Route Kafka, tab Settings, field Key. |
|
|
LABEL |
Field Name/Description of Response Route. |
|
|
MAILSUBJECT |
Response Route Mail, tab Settings, field Subject. |
|
|
MAILTO |
Response Route Mail, tab Settings, field To. |
|
|
MQTTALIAS |
Response Route MQTT, tab Settings, field Alias. |
|
|
MSGCONTEXT |
Response Route Message, tab Settings, field Context name. |
|
|
MSGQUEUE |
Response Route Message, tab Settings, field Queue name. |
|
|
POSTEXEC |
All Response Routes , tab Content settings, field Treatment of data postexecution. |
|
|
POSTEXECCONFIG |
Al Response Routes , tab Content settings, field Config file. |
|
|
PROFILE |
Response Route Message, tab Settings, field Profile name. |
|
|
QUERY |
Response Route HTTP , tab Settings , field Query/Body . |
|
|
SAPALIAS |
Response Routes SAP and SAP ALE, tab Settings, field SAP Alias. |
|
|
SAPQRFC |
Response Route SAP, tab Settings, field qRFC Queue. |
|
|
SAPRFC |
Response Route SAP, tab Settings, field RFC. |
|
|
SMSFROM |
Field From in Response Route SMS . |
|
|
SMSTO |
Field To in Response Route SMS . |
|
|
TOPIC |
Response Routes MQTT, AMQP/JMS and Kafka, tab Settings, field Topic. |
|
|
TYPE |
Column Response. |
|
|
WEBDAVDIR |
Response Route WebDAV, tab Settings, field Directory. |
|
TAGS |
|
Tab Main settings, tab Info. |
|
|
TAG |
Field Tags. |
|
TREE |
|
Tab Phase 3. |
|
|
DESTINATION |
Field Target structure. |
|
|
FUNCTION |
Field Used functions. |
|
|
SOURCE |
Field Source structure. |
|
VARIABLES |
|
Variables in tab Phase 3. |
|
|
VARIABLE |
Name of variable. |
Workflows
|
BASIC |
|
Tab Main settings. |
|
|
ACTIVE |
Checkbox Active. |
|
|
COCKPITROLE |
Field DataCockpit roles. |
|
|
DESCRIPTION |
Field Description. |
|
|
DOCUMENTATIONURL |
Field Documentation URL. |
|
|
EOLACTION |
Name of final action. |
|
|
NAME |
Field Name. |
|
|
URL |
Field URL key. |
|
|
USERS |
Field _data user. |
|
STATE |
|
Workflow state. |
|
|
DESCRIPTION |
Field Description. |
|
|
NAME |
Field Name. |
|
TRANSITION |
|
Workflow transition. |
|
|
DESCRIPTION |
Field Description. |
|
|
NAME |
Field Name. |
|
VARIABLES |
|
Workflow variable. |
|
|
VARIABLE |
Name of variable. |
Content Inspection
|
BASIC |
|
Tab Main settings. |
|
|
ACTIVE |
Checkbox Active. |
|
|
ASM |
Tab Data transmission , field ASM selection . |
|
|
CHANNEL |
Tab Data transmission for X.400 , field Channel selection (field content is <partner name>:<channel name> ). |
|
|
CHANNELIDS |
Channel ID of selected partner channels in tab Partner relation. |
|
|
COLLECTEDFILENAMES |
Tab File compound , field Existing files . |
|
|
DESCRIPTION |
Field Description. |
|
|
DOCUMENTATIONURL |
Field Documentation URL. |
|
|
ENCODING |
Field Encoding. |
|
|
FILEPATTERN |
Field File pattern. |
|
|
INSPECTORLIST |
Type of inspector in field File inspectors. |
|
|
MAILBODY |
Tab Data transmission for X.400 , field Text . |
|
|
MERGECLASS |
Type of merger in area Postexecution. |
|
|
NAME |
Field Name. |
|
|
PRIORITY |
Field Priority. |
|
|
PROFILE |
Used profile in tab Data transmission. |
|
|
RECIPIENTS |
Tab Data transmission for X.400 , field Recipient . |
|
|
SENDER |
Tab Data transmission for X.400 , field Sender . |
|
|
SPLITCLASS |
Type of splitter in area Preexecution. |
|
|
SUBJECT |
Tab Data transmission for X.400 , field Subject . |
|
|
TYPE |
Field Type. |
ASM
|
BASIC |
|
Tab Main settings. |
|
|
ACTIVE |
Checkbox Active. |
|
|
BACKUP |
Field Backup. |
|
|
DESCRIPTION |
Field Description. |
|
|
DIRECTORY |
Field Directory. |
|
|
DOCUMENTATIONURL |
Field Documentation URL. |
|
|
NAME |
Field Name. |
|
|
RECIPIENTERROR |
Tab Notification, field Recipient. |
|
|
RETAINBACKUP |
Field Keep backup for. |
|
|
RETAINLOGS |
Field Keep logs for. |
|
|
TYPE |
Tab Transmission , field Select channel type. Key words: AS2 , FILE , API (for Custom class ), FTP , FAX , HTTP , KAFKA , SMTP (for Mail ), OFTP , SAP ALE , SCP , X.400 . |
|
TRANSFER |
|
Tab Transmission. |
|
|
CHANNELID |
Field Communication channel (→ channel ID). |
|
|
CONFIG |
Transmission type Custom class, field Config file. |
|
|
CUSTOMCLASS |
Transmission type Custom class, field Class. |
|
|
DIRECTORY |
Transmission type File, FTP, SCP, field Directory. |
|
|
FAX |
Transmission type Fax, field Partner Fax number. |
|
|
MIMETYPE |
Transmission type AS2, Mail, X.400, field MIME type. |
|
|
SAPALIAS |
Transmission type SAP ALE, field SAP Alias. |
|
|
SUBJECT |
Transmission type AS2, Mail, X.400, field Subject. |
ETL
|
BASIC |
|
Tab Main settings. |
|
|
ACTIVE |
Checkbox Active. |
|
|
DESCRIPTION |
Field Description. |
|
|
DOCUMENTATIONURL |
Field Documentation URL. |
|
|
NAME |
Field Name. |
|
|
PROCESSTYPE |
Field Process type. Key words: LOCAL, REMOTE. |
|
ETLELEMENT |
|
Tab ETL/ELT tasks. |
|
|
DESTINATIONTYPE |
Tab Action (destination data) , field Type destination data . Key words: DB , MONGO , CSV , FIX (for Fix record ), VELOCITY (for Template ), MAIL , FILTER (für Functions ), CUSTOM , NONE (for Without ). |
|
|
NAME |
Name of task in field ETL/ELT tasks. |
|
|
SOURCETYPE |
Tab Source data , field Type source data . Key words: DB , MONGO , CSV , FIX (for Fix record ), XML , JSON , CUSTOM , CLIPBOARD , NONE (for Without ). |
|
VARIABLES |
|
Tab Variables. |
|
|
VARIABLE |
Name of variable. |
Data Flow
|
ASM |
|
ASM entries used in Data Flow. |
|
|
DESCRIPTION |
Field Description in tab Main settings of the ASM entry. |
|
|
NAME |
Name of the ASM entry. |
|
BASIC |
|
Tab Main settings. |
|
|
CHANNELIDS |
ID of channel used in Data Flow. |
|
|
DESCRIPTION |
Field Description. |
|
|
DOCUMENTATIONURL |
Field Documentation URL. |
|
|
NAME |
Field Name. |
|
CI |
|
Content Inspection entries used in Data Flow. |
|
|
DESCRIPTION |
Field Description in tab Main settings of the CI entry. |
|
|
NAME |
Name of the CI entry. |
|
CONSTANTS |
|
Constants used in Data Flow. |
|
|
NAME |
Name of the constant. |
|
ETL |
|
ETL entries used in the Data Flow. |
|
|
DESCRIPTION |
Field Description in tab Main settings of the ETL entry. |
|
|
NAME |
Name of the ETL entry. |
|
PROFILE |
|
Profiles used in the Data Flow. |
|
|
DESCRIPTION |
Field Description of profile in tab Main settings, subtab Info of the profile. |
|
|
NAME |
Name of the profile. |
|
WORKFLOW |
|
Workflows used in Data Flow. |
|
|
DESCRIPTION |
Field Description in tab Main settings of the workflow. |
|
|
NAME |
Name of the workflow. |
ENGDAT
|
BASIC |
|
Tab Main settings. |
|
|
CHANNELID |
Tab Message, field Communication channel (→ ID). |
|
|
DESCRIPTION |
Tab Message, field Description. |
|
|
ENCODING |
Tab Message, field CharSet. |
|
|
ERROR |
Erroneous transmissions ( true or false ). |
|
|
ERRORMSG |
Field Status (text in brackets). |
|
|
|
Field Mail notifications to. |
|
|
NAME |
Field Reference, or name of entry. |
|
|
PROFILE |
Tab Message, field Profile for post processing (direction Inbound). |
|
|
ROUTE |
Tab Message, field Route. |
|
COMPANYDESTINATION |
|
Area Partner information. |
|
|
CITY |
Tab Company, field Postcode/C (right field). |
|
|
COMPANY |
Tab Company, field Company. |
|
|
COMPANYID |
Tab Company, field Company-ID (right field). |
|
|
COUNTRY |
Tab Company, field Country. |
|
|
SITEID |
Tab Company, field Site ID. |
|
|
STATE |
Tab Company, field State. |
|
|
STREET |
Tab Company, field Street. |
|
|
ZIP |
Tab Company, field Postcode. |
|
COMPANYORIGIN |
|
Area My Information. |
|
|
CITY |
Tab Company, field Postcode/C (right field). |
|
|
COMPANY |
Tab Company, field Company. |
|
|
COMPANYID |
Tab Company, field Company-ID (right field). |
|
|
COUNTRY |
Tab Company, field Country. |
|
|
SITEID |
Tab Company, field Site ID. |
|
|
STATE |
Tab Company, field State. |
|
|
STREET |
Tab Company, field Street. |
|
|
ZIP |
Tab Company, field Postcode. |
|
CONTACTDESTINATION |
|
Area Partner information, tabs Developer, Technician, Trader. |
|
|
DEPARTMENT |
Field Department. |
|
|
FAX |
Field Fax. |
|
|
FORENAME |
Field First name. |
|
|
|
Field Mail. |
|
|
MOBILE |
Field Mobile. |
|
|
PHONE |
Field Phone. |
|
|
ROUTE |
Field Route. |
|
|
SURNAME |
Field Last name. |
|
|
TYPE |
Checks if developer/technician/trader contact information is available . Key words: ENG , TECH , TRADE . |
|
CONTACTORIGIN |
|
Area My information, tabs Developer, Technician, Trader. |
|
|
DEPARTMENT |
Field Department. |
|
|
FAX |
Field Fax. |
|
|
FORENAME |
Field First name. |
|
|
|
Field Mail. |
|
|
MOBILE |
Field Mobile. |
|
|
PHONE |
Field Phone. |
|
|
ROUTE |
Field Route. |
|
|
SURNAME |
Field Last name. |
|
|
TYPE |
Checks if developer/technician/trader contact information is available. Key words: ENG , TECH , TRADE . |
