XPath of source field(a,b,c)
|
Group |
The function returns an XPath-like expression of the referenced source structure field a. Additionally, the iteration level of the nodes is displayed (see example).
With parameter c, the complete data line of the segment of the referenced field can also be output for document type EDIFACT (see example).
Parameter Description
|
Parameter |
Description |
|
a |
Name of the source structure field. You have to use parameter type Source field . |
|
b |
If true, the field names are normalised in the output, i.e. if the field name is field-1, the output name would be field (see example). Default: false . |
|
c |
If true, the complete data line of the segment of the referenced field is also output if you are using document type EDIFACT (see example). Default: false. As a prerequisite, the checkbox Use matchcode values for functions in mapping must be set. |
Example
We use the following EDIFACT file.

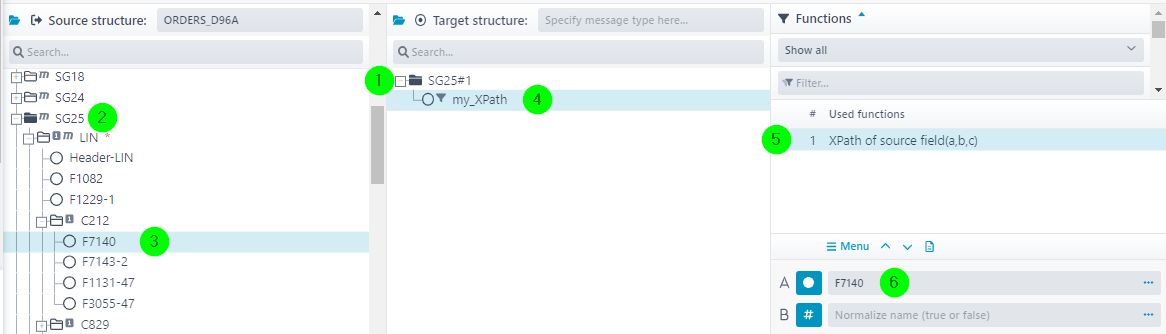

UNA:+.? 'UNB+UNOC:3+Sender+Recipient+060620:0931+1++1234567'UNH+1+ORDERS:D:96A:UN'BGM+220+B10001'DTM+4:20060620:102'NAD+BY+++Name+Street+City++23436+xx'LIN+1++101556:SA'LIN+2++102683:SA'QTY+1:1000'UNS+S'CNT+2:1'UNT+9+1'UNZ+1+1234567'We create the following mapping.
(1) This node has a path to node (2).
(3) We want to have the XPath expression for this field (Item number).
(4) We place the function on this field (5).
(6) The referenced source structure field (3).

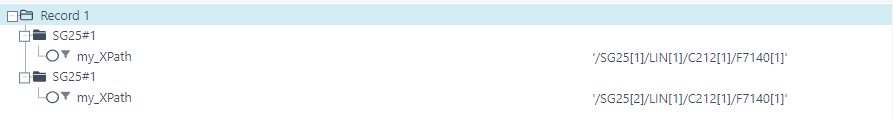

Our example file contains two LIN segments, therefore we also get two result lines. The square brackets contain the iteration level of each node.
