copy field by name(variable/result a)

Group

Basic Functions


Returns the value of the source structure field (or the value of a variable that has not been created), whose name is given via parameter a. See example below.

Important note: Only source structure fields in the same context can be resolved (i.e. the node of the target structure field containing this function must have a path to the node of the source structure field). Always use the options relative path and normal data mapper.

Description of Parameters


Parameter

Description

a

Variable or position in a function chain that contains the name of the source structure field (or directly the name of an undefined variable). See example below.

Examples


Given is a source structure field with the name sourcefield, which has the assigned value 4711.

The variable var_FIELDNAME1 shall contain the value sourcefield, the variable var_FIELDNAME2 shall contain the value NonExistingSource.

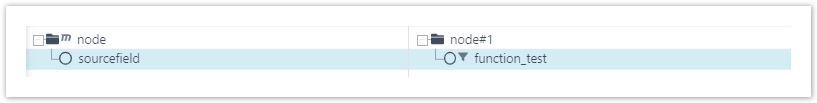

images/download/attachments/55937514/structure_copy_field_by_name-version-3-modificationdate-1645434195676-api-v2-effects-border-simple-blur-border.png


The field function_test contains the following function chain:


copy(field/value/variable)
a Wert: sourcefield

copy(field/value/variable)
a Wert: NonExistingSource

copy(field/value/variable)
a Wert: var_FIELDNAME1

copy(field/value/variable)
a Wert: var_FIELDNAME2

copy(field/value/variable)
a Wert:


We get the following results for the function at position 5:

Parameter a (<parameter type>: <parameter value>)

Result

Variable: var_FIELDNAME1

4711

Variable: var_FIELDNAME2

Termination of the function with an error.

Result: 1

4711

Result: 2

Termination of the function with an error.

Result: 3

Termination of the function with an error.

Result: 4

Termination of the function with an error.

Value: MSG_CALL_HTTP_MULTIPART1_VALUE

Name of the variable (even if it was not created). See section HTTP (Input Agent) (subsection 'Handling HTTP Multipart Messages') for details.
